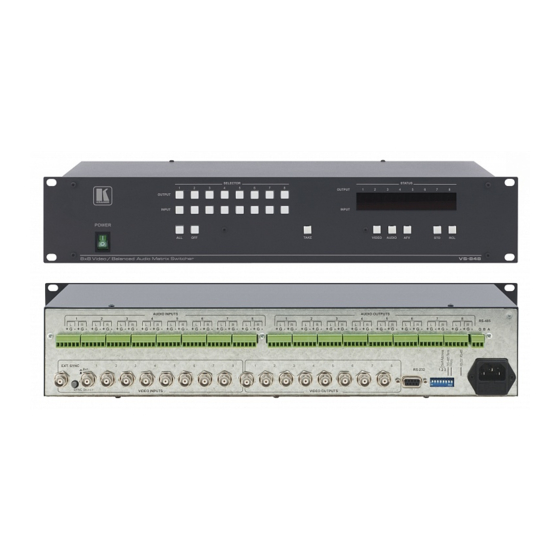

- Page 1 Kramer Electronics, Ltd. Preliminary USER MANUAL Models: VS-606xl , 6x6 Video/Audio Matrix Switcher VS-808xl , 8x8 Video/Audio Matrix Switcher VS-804xl , 8x4 Video/Audio Matrix Switcher VS-646 , 6x6 Video/Balanced Audio Matrix Switcher VS-848 , 8x8 Video/Balanced Audio Matrix Switcher...
-
Page 2: Table Of Contents
Communication Protocol Table of Hex Codes for the Master VS-808xl Figures Figure 1: VS-606xl 6x6 Video/Audio Matrix Switcher Figure 2: VS-808xl 8x8 Video/Audio Matrix Switcher Figure 3: VS-804xl 8x4 Video/Audio Matrix Switcher Figure 4: VS-646 6x6 Video/Balanced Audio Matrix Switcher... - Page 3 Table 4: Rear Panel VS-646 6x6 (VS-848 8x8) Features Table 5: DIP-switch Settings Table 6: Self Address DIP-switch Settings Table 7: Technical Specifications of the VS-606xl/VS-808xl/VS-804xl Table 8: Technical Specifications of the VS-646/VS848 Table 9: Protocol Definitions Table 10: Instruction Codes for Protocol 2000...
-
Page 4: Introduction
1,000-plus different models now appear in 11 groups that are clearly defined by function. Thank you for purchasing your VS-606xl 6x6 Video/Audio Matrix Switcher and/or VS-808xl 8x8 Video/Audio Matrix Switcher and/or VS-804xl 8x4 Video/Audio Matrix Switcher and/or VS-646 6x6 Video/Balanced Audio... -
Page 5: Getting Started
Review the contents of this user manual Use Kramer high-performance high-resolution cables Quick Start This quick start chart summarizes the basic setup and operation: 1 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 6 Getting Started...
-
Page 7: Overview
Overview Overview The Kramer VS-606xl, VS-804xl and VS-808xl are high performance matrix switchers for composite video and unbalanced stereo audio signals (via RCA connectors). The Kramer VS-646 and VS-848 are high performance matrix switchers for composite video and balanced stereo audio signals (via terminal block connectors). -
Page 8: Your Matrix Switchers
The VS-606xl, VS-808xl and VS-804xl are video/unbalanced audio matrix switchers that differ only in the number of their input and output channels: VS-606xl, illustrated in Figure 1, has 6 inputs and 6 outputs VS-808xl, illustrated in Figure 2, has 8 inputs and 8 outputs... -
Page 10: Figure 2: Vs-808Xl 8X8 Video/Audio Matrix Switcher
Your Matrix Switchers Figure 2: VS-808xl 8x8 Video/Audio Matrix Switcher... -
Page 12: Table 1: Front Panel Video/Audio Matrix Switcher Features
1 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs 2 For the VS-606xl, 6 inputs and 6 outputs; for the VS-808xl, 8 inputs and 8 outputs; for the VS-804xl, 8 inputs and 4 outputs... -
Page 13: Table 2: Rear Panel Video/Audio Matrix Switcher Features
IR receiver) 1 For the VS-606xl, 6 inputs and 6 outputs; for the VS-808xl, 8 inputs and 8 outputs; for the VS-804xl, 8 inputs and 4 outputs 2 For RGBS applications, one of the sync channels (H or V) may be used for the S channel 3 Optional. -
Page 16: Table 3: Front Panel Vs-646 6X6 (Vs-848 8X8) Features
Your Matrix Switchers Table 3: Front Panel VS-646 6x6 (VS-848 8x8) Features Feature Function IR Receiver The LED illuminates when receiving signals from the infrared remote control transmitter POWER Switch Illuminated switch for turning the unit ON or OFF OFF Button An OFF-OUT combination disconnects that output from the inputs;... -
Page 17: Using The Ir Transmitter
This distance can be extended to up to 60 meters when used with three extension cables Before using the external IR receiver, be sure to arrange for your Kramer dealer to insert an internal IR connection cable , which is required so that the REMOTE IR 3.5mm connector can be used. -
Page 18: Installing On A Rack
Pay particular attention to situations where If you are using a Kramer rack electricity is supplied indirectly (when the power cord adapter kit (for a machine that is not is not plugged directly into the socket in the wall), for 19"), see the Rack Adapters user... -
Page 19: Connecting The Vs-808Xl Video/Audio Matrix Switcher
5. Set the DIP-switches (see section 6.1). 1 From this section on, all the information is relevant also to the VS-606xl (with 6 inputs and 6 outputs), VS-804xl (with 8 inputs and 4 outputs), VS-646 (with 6 inputs and 6 outputs) and VS-848 (with 8 inputs and 8 outputs), unless noted otherwise 2 Note that you can connect up to 8 units to a PC or other RS-232 or RS-485 controller 3 Switch OFF the power on each device before connecting it to your VS-808xl. -
Page 20: Figure 6: Connecting The Video Sources And Acceptors To The Rear Panel
Connecting the VS-808xl Video/Audio Matrix Switcher Figure 6: Connecting the Video Sources and Acceptors to the Rear Panel... -
Page 21: Setting The Dip-Switches
1 In the case of interconnection between more than two RS-485 receivers-transmitters (including PC), the termination resistor must be disconnected on all the devices, except for the first (usually the PC) and last units on the communication line KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 22: Setting Connection Dip-Switches
Connecting the VS-808xl Video/Audio Matrix Switcher 6.1.2 Setting Connection DIP-Switches When connecting a PC via the RS-232, set DIP-switch # 8 to ON. When connecting a PC via the RS-485, set DIP-switch # 8 to OFF. DIP-switch # 5 enables or disables Reply from the matrix switcher to the PC. -
Page 23: Controlling Via Rs-232 And Rs-485
– up to the RS-485 port on the last unit. 5. Terminate the RS-485 line as described in section 6.1.2. Figure 9: RS-232 and RS-485 Operation 1 The first unit (the master) will be set to Self Address = 1 2 As in section 6.2 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 24: Rgb/Yuv Switching With Rs-232
2 pieces of equipment (for example, a PC and a switcher), a method of “distributing” the RS-232 to all three machines is needed. The Kramer VP-14 RS-232 Port Extender is designed for this purpose. Perform the following steps (as necessary): 1. -
Page 25: Figure 10: Rgb Switching With Rs-232 Control Via A Computer
Connecting the VS-808xl Video/Audio Matrix Switcher Figure 10: RGB Switching with RS-232 control via a Computer KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 26: Operating Vs-808Xl Matrix Switcher
Operating VS-808xl Matrix Switcher Operating VS-808xl Matrix Switcher Operate your VS-808xl via: The front panel buttons RS-232/ RS-485 serial commands transmitted by a touch screen system, PC or other serial controller Displaying Unit Characteristics The VS-808xl 7-segment Display shows the selected audio or video input switched to the marked output. -
Page 27: Choosing The Audio-Follow-Video Or Breakaway Option
1 Warning that you are about to modify the audio configuration for AFV operation 2 Failure to press the AFV button within one minute (the Timeout) will abort the action 3 For VP-606xl and VP-646, you can store up to 8 input/output configurations via RS-232 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 28: Recalling An Input/Output Configuration
Operating VS-808xl Matrix Switcher 7.4.2 Recalling an Input/Output Configuration To recall an input/output configuration, do the following: 1. Press the RCL button. The RCL button blinks. 2. Press the appropriate INPUT SELECTOR button (the INPUT SELECTOR button # corresponding to the setup #). The memory recalls the stored data from that reference. -
Page 29: Technical Specifications
Technical Specifications Technical Specifications Table 7 details the VS-606xl, the VS-808xl and the VS-804xl technical specifications Table 7: Technical Specifications of the VS-606xl/VS-808xl/VS-804xl INPUTS: VS-606xl 6 composite video 1Vpp/75 on BNC connectors 1 sync/video genlock 1Vpp/75 with sync select switch... -
Page 30: Table 8: Technical Specifications Of The Vs-646/Vs848
Technical Specifications Table 8 details the VS-646 and the VS-848 technical specifications Table 8: Technical Specifications of the VS-646/VS848 INPUTS: VS-646 6 composite video, 1Vpp/75 on BNC connectors 1 sync/video genlock 1Vpp/75 with sync select switch 6 balanced audio stereo, +4dBm/33k on detachable terminal blocks VS-848 8 composite video, 1Vpp/75 on BNC connectors. -
Page 31: Communication Protocol
Communication Protocol Communication Protocol The VS-808xl is compatible with Kramer’s Protocol 2000 (version 0.50) (below). This RS-232/RS-485 communication protocol uses four bytes of information as defined below. For RS-232, a null-modem connection between the machine and controller is used. The default data rate is 9600 baud, with no parity, 8 data bits and 1 stop bit. -
Page 32: Table 10: Instruction Codes For Protocol 2000
Communication Protocol Table 10: Instruction Codes for Protocol 2000 Note: All values in the table are decimal, unless otherwise stated. INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION NOTE DESCRIPTION INPUT OUTPUT RESET VIDEO SWITCH VIDEO Set equal to video input Set equal to video output which is 2, 15 which is to be switched to be switched... - Page 33 Memory address Data AUDIO PARAMETER INPUT Bit: 0 - Gain SETTINGS FOR I0=input; 1=output 1 - Bass INSTRUCTIONS 22, 24, 25 I1 - Left 2 - Treble I2 - Right 3 - Midrange 4 - Mix On KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 34 Communication Protocol INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION NOTE DESCRIPTION INPUT OUTPUT VIDEO PARAMETER SETTINGS 1 – Input 0 - video gain FOR INSTRUCTIONS 21, 23, 26 2 – Output 1 - contrast 2 - brightness 3 - color 4 - hue 5 - H-phase 6 - V-position MEDIA CONTROL...
- Page 35 NOTE 17 – For clean switching of RGBHV video, the “ seamless switching” option may be used. The blanking period for the transition of the RGB sources may be set in this case, in steps of 25 milliseconds. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 36 Communication Protocol For example, to set for 350ms blanking time (14 steps), send HEX codes NOTE 18 – Delayed execution allows switching after a delay dictated by RS-232. To do this, the user sends instruction 7 with the “ Set for delayed switch” option (64dec) before sending the switch command (instruction 1) or pressing via front panel. The switch is not executed (unless timed-out) until the “...
-
Page 37: Table Of Hex Codes For The Master Vs-808Xl
Table 11 shows the “ HEX” codes for switching the Master VS-808xl. NOTE: The table is also valid for the VS-606xl and VS-646 if the last two rows and columns are ignored Table 11: Hex Codes for Switching the Master VS-808xl... - Page 38 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 40 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
