Steps

Using the drill hole template, mark the pilot holes on the floor at the identified locations.
Step 1
Remove the drill hole template, and drill the indicated anchor bolt holes into the floor at the pilot hole
Step 2
locations.
If an alternate floor mounting pattern is required, remove the lower side panels (left and right sides of
Step 3
the chassis) to expose additional floor mounting holes

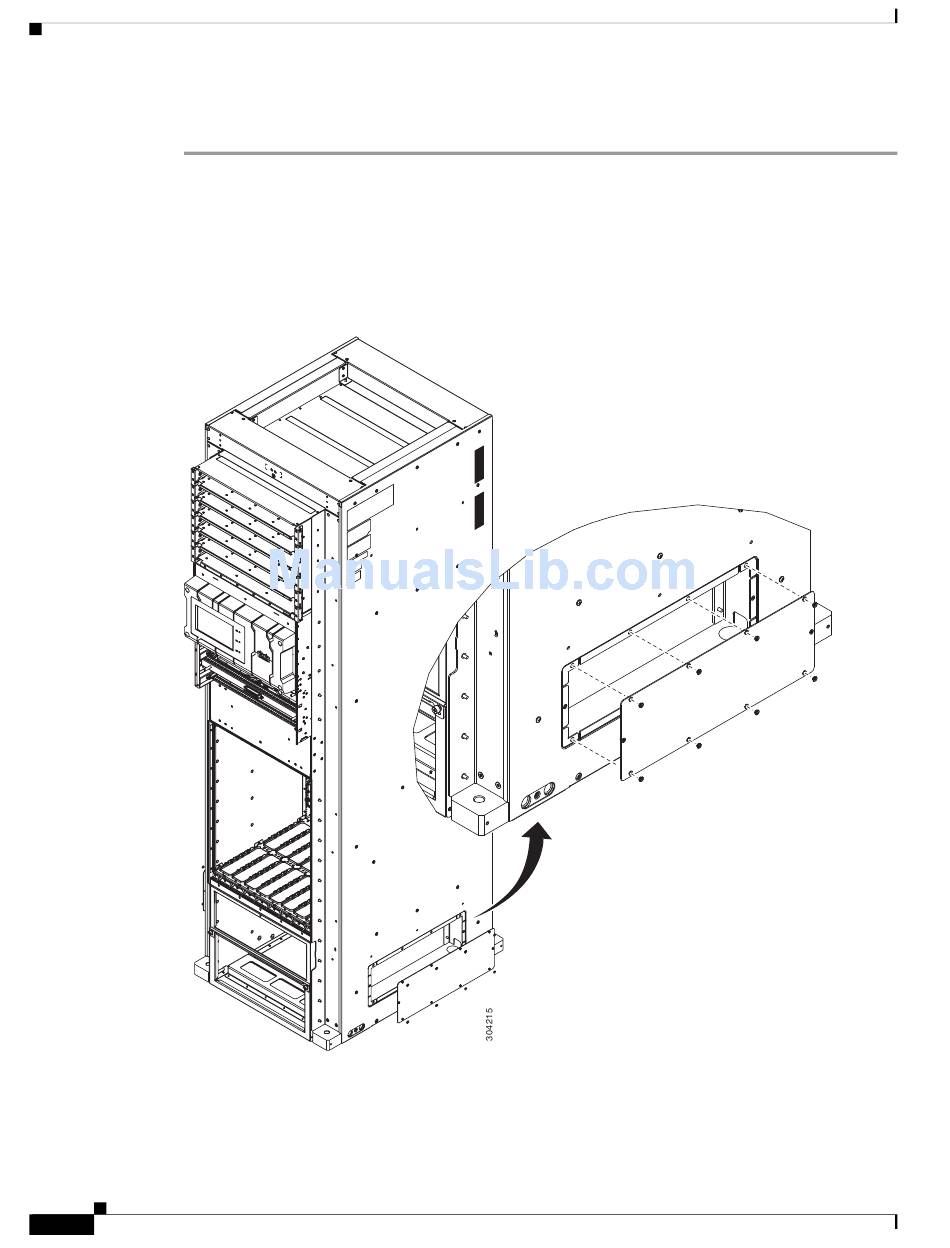

Figure 4-1
Cisco Network Convergence System 6000 Series Routers Unpacking, Moving, and Securing Guide
4-2
Remove Lower Side Panels to Expose Additional Floor Mounting Holes
(Figure 4-1).
Chapter 4
OL-29233-01
