Attaching the Dolly to the Chassis and Removing the Chassis Pallet
Use the 3/8-inch ratchet wrench and socket to remove the two dolly-to-chassis lift brackets
Step 2
Repeat this step for the second dolly unit.

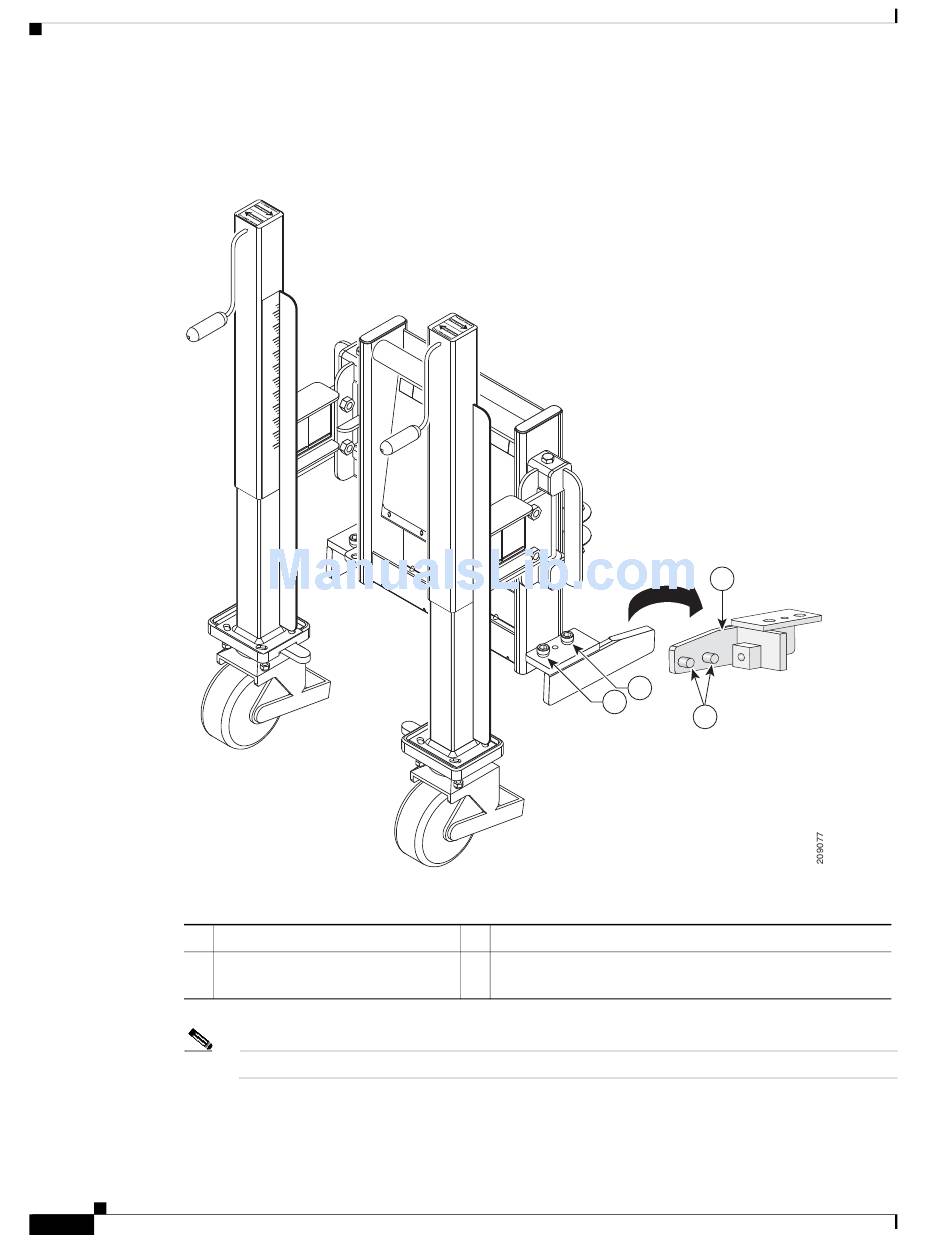

Figure 2-7
1 Lift bracket
2 M14 x 30 mm socket-head cap
screws
Note
Step 3 Select a lift bracket. There are two identical lift brackets for the right front and left rear and two identical
lift brackets for the right rear and left front
Cisco Network Convergence System 6000 Series Routers Unpacking, Moving, and Securing Guide
2-8
Remove Lift Brackets from Dolly
The lift brackets must be attached to the chassis first.
2
2
3 Two lift bracket side pins on the removed lift bracket
(Figure 2-8).
