Table of Contents

Chapter 2

Figure 2-11

After all bolts are secured, remove the chassis pallet following these steps:

Step 8

Using two people (one person working on each dolly unit), turn the two lifting cranks to lift the

chassis about 3/4 of an inch above the pallet

Note

OL-29233-01

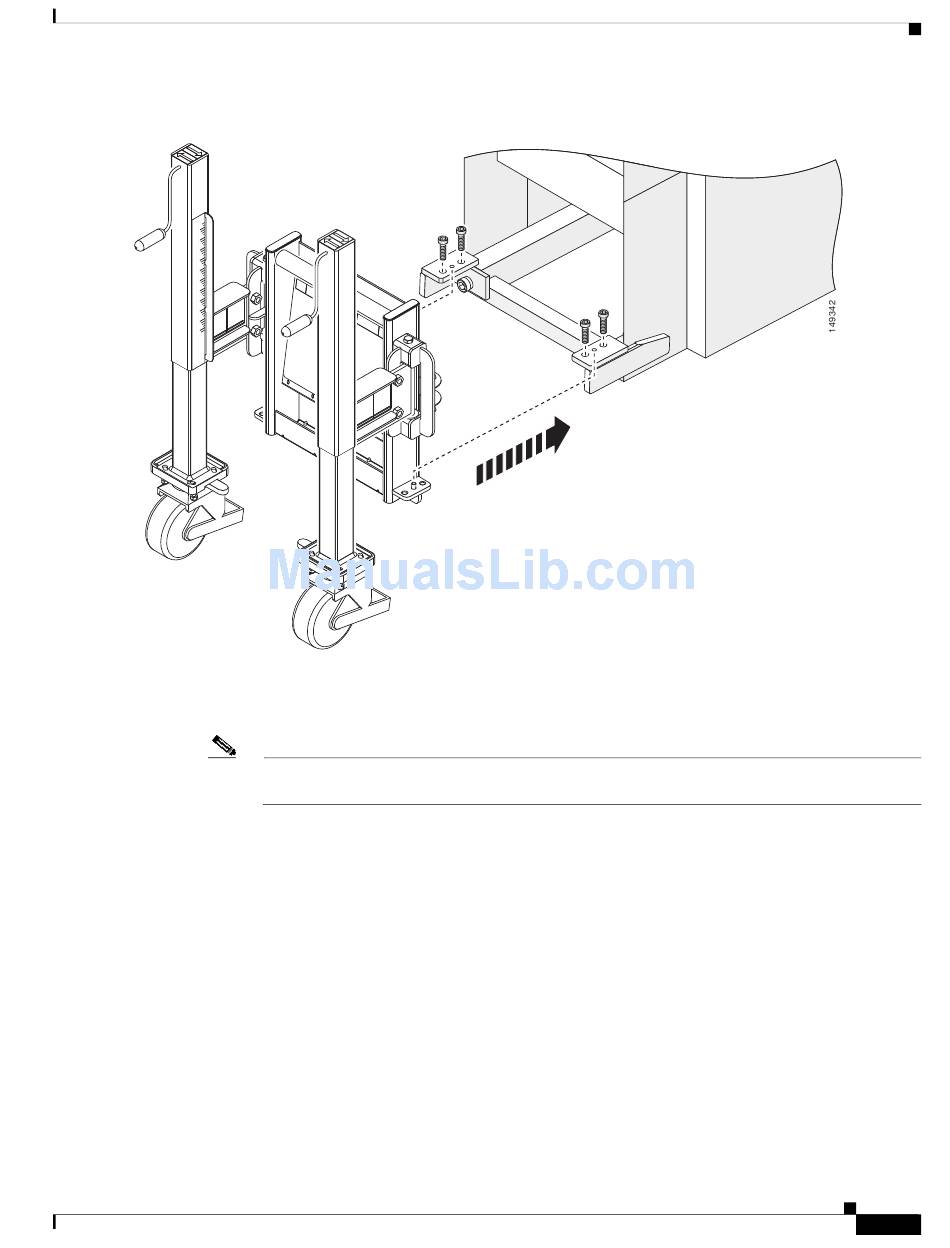

Sliding the Dolly to the Lift Brackets

One person on each side of the dolly should raise the chassis enough to cleanly remove the base

pallet.

Cisco Network Convergence System 6000 Series Routers Unpacking, Moving, and Securing Guide

Attaching the Dolly to the Chassis and Removing the Chassis Pallet

(Figure

2-12).

2-11
