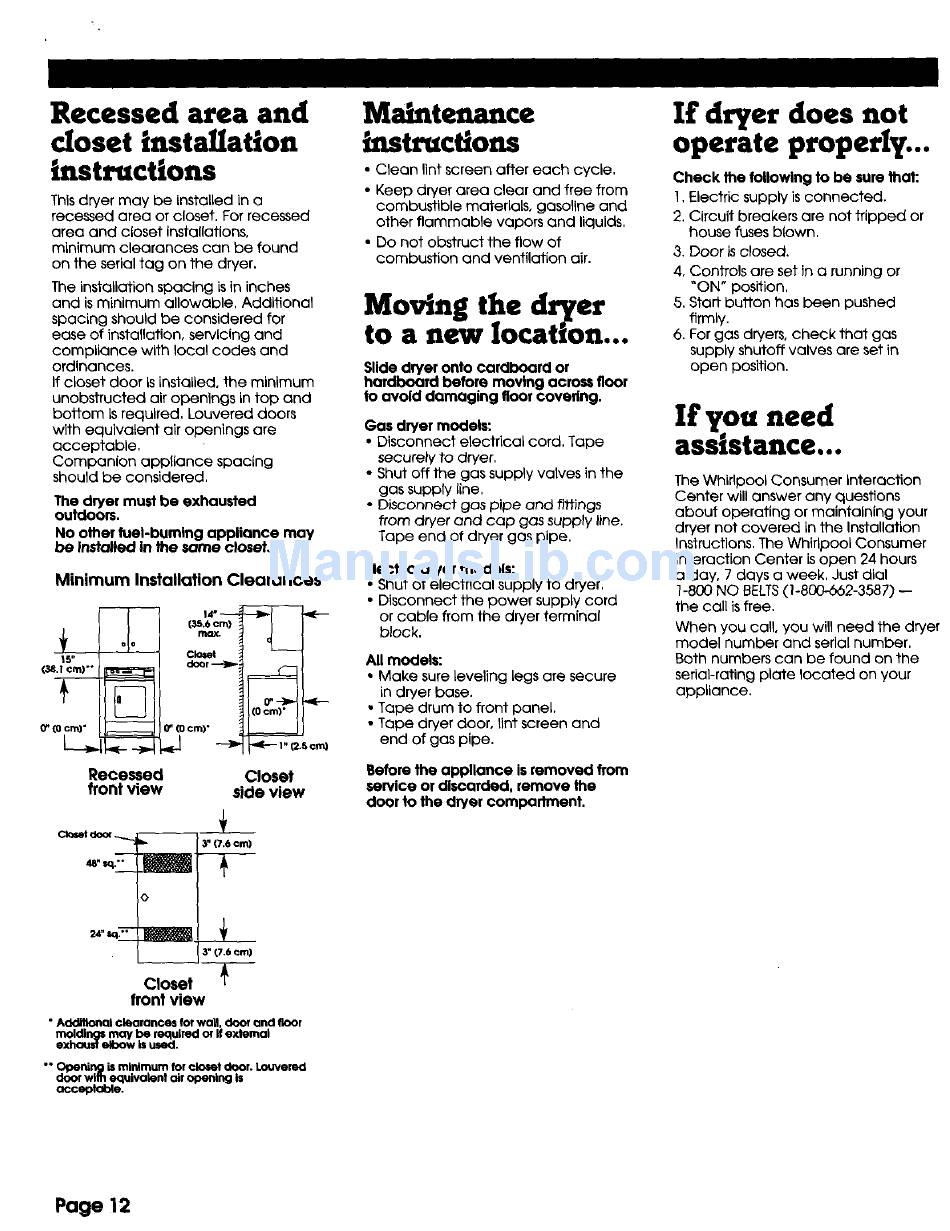

Recessed
area and
closet installation
instructions
This dryer may be installed in a
recessed
area or closet. For recessed
area and closet installations,
minimum
clearances
can be found
on the serial tag on the dryer.
The installation
spacing
is in inches
and is minimum
allowable,
Addllional
spacing
should be considered
for
ease of installation,
servicing
and
compliance
with local codes
and
ordinances.
If closet door is installed, the minimum
unobstructed
air openings
in top and
bottom
Is required,
Louvered
doors
with equivalent
air openings
are
acceptable,
Companion
appliance
spacing
should be considered,
The dryer must be exhausted
outdoors.
No other fuei-buming appliance may
be Installed in the same closet,
Minimum
Installation
Clearances
ol °
15"
(38.1 cm)'*
0" (0 cm]"
(3&6 ore) :
I_lax.
ClOset
doer ---_
O" (ocm)*
[0 ¢m)"
_--
I. [2,,_cm )
Recessed
Closet
front view
side view
3_ (7.6 cn_
0
I
Closet
front view
• Additional clearances fat wan, doo_ and floor
em_xh_elbo_w_beu_l u'r_l °r If exfoma'
** Openi .n_ isminimum for clo6et door. Louvemd
door wli_ equivalent air opening is
acceptable.
Maintenance
instructions
• Clean lint screen offer each
cycle.
• Keep dryer area clear and free from
combustible
materials,
gasoline
and
other flammable
vapors and liquids.
• Do not obstruct
the flow of
combustion
and ventilation
air.
Moving the dryer
to a new location...
Slide dryer onto cardboard or
hardboard before moving across floor
to avoid damaging floor covering.
Gas dryer models:
• Disconnect
electrical
cord. Tape
securely to dryer.
• Shut off the gas supply valves in the
gas supply line.
• Disconnect
gas pipe and fittings
from dryer and cap gas supply line.
Tape end of dryer gas pipe.
Elechic
dryer models:
• Shut of electrical
supply to dryer.
• Disconnect
the power supply cord
or cable
from the dryer terminal
block.
All models:
• Make sure leveling
Legsare secure
in dryer base.
• Tape drum to front panel.
• Tape dryer door, lint screen and
end of gas pipe.
Before the appliance is removed from
service or discorded, remove the
door to the dryer compartment.
If dryer does not
operate properly...
Check the following to be sure that:
I.Electric supply isconnected.
2. Circuff breakers are not tripped or
house fuses blown,
3. Door isclosed.
4, Controls are set in a running or
"ON" position,
5. Start button has been pushed
firmly.
6. For gas dryers, check that gas
supply shutoff valves are set in
open position.
If you need
assistance...
The Whirlpool
Consumer
Interaction
Center will answer any questions
about
operating
or maintaining
your
dryer not covered
in the Installation
Instructions.
The Whirlpool
Consumer
Interaction
Center
is open 24 hours
a day, 7 days a week. Just dial
1-800 NO BELTS(1-800-662-3587)
--
the call is free.
When you call, you wi, need the dryer
model
number
and serial number.
Both numbers
can be found
on the
seflal-rating
plate
located
on your
appliance,
Page 12
