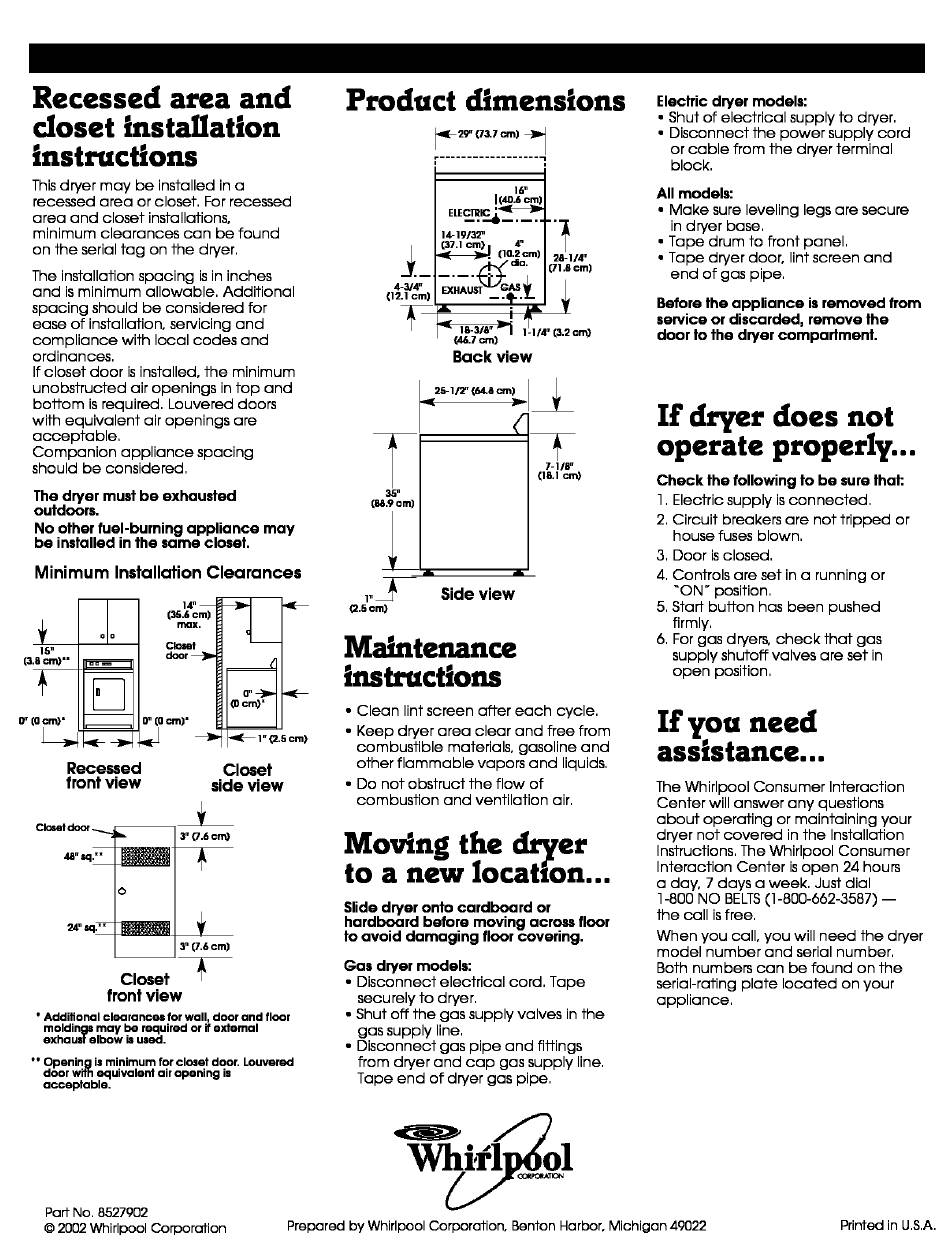

Recessed
area and
closet installation
instructions
This dryer may be installed
in a
recessed
area or closet, For recessed
area and closet installations,
minimum
clearances
can be found
on the serial tag on the dryer,
The installation
spacing
is in inches
and is minimum
allowable,
Additional
spacing
should
be considered
for
ease of installation,
servicing
and
compliance
with local codes
and
ordinances,
If closet door is installed,
the minimum
unobstructed
air openings
in top and
bottom
is required,
Louvered
doors
with equivalent
air openings
are
acceptable,
Companion
appliance
spacing
should be considered,
The dryer must be exhausted
outdoors.
No other fuel-burning appliance
may
be installed in the same closet.
Minimum
Installation
Clearances
14.
[3S_
cm)
max.
_*(ocm)"
o"(ocm)"
i1
_0 cm)"
_
I" {2.5 cm)
Recessed
front view
Cl_mt
do_
_
0
Closet
Closet
side view
3" (7.6 cm)
3" (7.6 cm)
front view
• Additional
clearances
for wall, door and floor
rnoldin
may be required or if exiemal
exhau_lbow
m us_l.
** Openinlg is minimum
for cleset door. Louvered
door with equivalent
air opening
is
acceptable•
Product dimensions
_29"
(73,7 cm)
6.
I(40_cm:
14-19132"
8__i
37•I
cm)
4"
(10.2 cm)
2
14"
.-_. ......
__
tea"
[71.Ocm)
A
i_"
v
(46.7 _)
Back view
i
25- I12" {64,8
cm)
._
I-
?
35 _
€68_9om)
• ak
dk
i._
Bide view
0.5 cm)
7-I10"
(18.1 cm)
Maintenance
instructions
• Clean
lint screen after each
cycle,
• Keep dryer area clear and free from
combustible
materials,
gasoline
and
other flammable
vapors and liquids,
• Do not obstruct
the flow of
combustion
and ventilation
air,
Moving the d er
to a new locatlon...
Slide dryer onto cardboard
or
hardboard
before moving across floor
to avoid damaging
floor covering.
Gas dryer models:
• Disconnect
electrical
cord, Tape
securely to dryer,
• Shut off the gas supply valves in the
gas supply line,
• Disconnect
gas pipe and filtings
from dryer and cap gas supply line,
Tape end of dryer gas pipe,
Electric dryer models:
• Shut of electrical
supply to dryer,
• Disconnect
the power supply cord
or cable
from the dryer terminal
block,
All models:
• Make sure leveling
legs are secure
in dryer base,
• Tape drum to front panel,
• Tape dryer door, lint screen and
end of gas pipe,
Before the appliance
is removed
from
service or discarded,
remove the
door to the dryer compodment.
If dryer does not
operate properly...
Check
the following
to be sure that:
1, Electric supply isconnected,
2, Circuit breakers are not tripped
or
house fuses blown,
3, Door is closed,
4, Controls are set in a running or
"ON" position,
5, Start button
has been pushed
firmly,
6, For gas dryers, check
that gas
supply shutoff valves are set in
open position,
If you need
assistance...
The Whirlpool
Consumer
Interaction
Center will answer any questions
about
operating
or maintaining
your
dryer not covered
in the Installation
Instructions,
The Whirlpool
Consumer
Interaction
Center
is open 24 hours
a day, 7 days a week, Just dial
1-800 NO BELTS(1-800-662-3587)
--
the call is free,
When you call, you will need the dryer
model
number
and serial number,
Both numbers can be found
on the
serial-rating
plate located
on your
appliance,
Part No. 8527902
@ 2002 Whirlpool Corporation
Prepared
by Whirlpool
Corporation,
Benton
Harbor, Michigan
49022
Printed in U.S.A.
