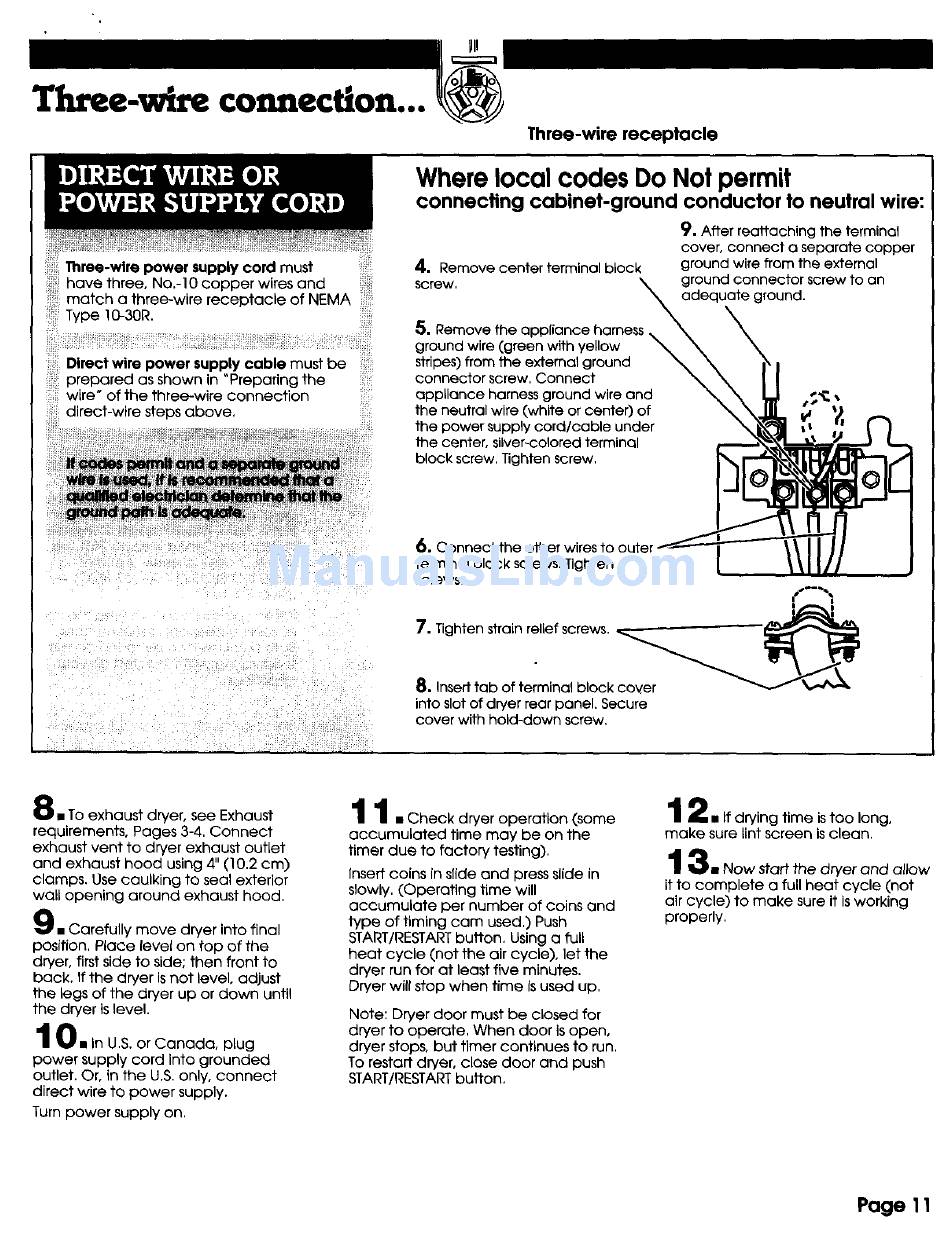

Three-wire
connection...
Three-wire receptacle
Three-wire
power supply cord must
have three,
No.-lO copper
wires and
match
a three-wire
receptacle
of NEMA
Type 10-30R.
Direct wire power supply cable must be
prepared
as shown in "Preparing
the
wire* of the three-wire
connection
direct-wire
steps above,
Where local codes Do Not permit
connecting
cabinet-ground
conductor
to neutral wire:
4.
Remove
center
terminal
block
screw,
9.
After reattaching
the terminal
cover,
connect
a separate
copper
ground
wire from the external
ground
connector
screw
to an
adequate
ground•
•_. Remove
the appliance
harness
ground
wire (green
with yellow
stripes)
from the external
ground
connector
screw,
Connect
appliance
harness
ground
wire and
the neutral
wire (white
or center)
of
the power
supply
cord/cable
under
the center,
silver-colored
terminal
block
screw.
Tighten
screw,
6.
Connect
the other wires to out_
terminal block screws, Tighten
screws.
¢o-'h
7. Tighten strain relief screws. _
_
o
8. Insed tab of terminal
block cover
into slot of dryer rear panel. Secure
cover with hold-down
screw,
n To exhaust dryer, see Exhaust
requirements,
Pages 3-4, Connect
exhaust vent to dryer exhaust
outlet
and exhaust hood
using 4" (10.2 cm)
clamps.
Use caulking
to seal exterior
wall opening
around
exhaust
hood,
1 Carefully
move
dryer into final
position,
Place level on top of the
dryer, first side to side; then front to
back.
If the dryer is not level, adjust
the legs of the dryer up or down
until
the dryer is level•
1 On
in U,S. or Canada,
plug
power
supply cord Into grounded
outlet. Or, in the U.S. only, connect
direct
wire to power
supply.
Turn power supply on,
1
• Check
dryer operation
(some
accumulated
time may be on the
timer due to factory
testing).
Insert coins in slide and press slide in
slowly, (Operating
time will
accumulate
per number
of coins and
Jype of timing
cam used,) Push
START/RESTARTbutton,
Using a full
heat cycle
(not the air cycle),
let the
dryer run for at least five minutes.
Dryer will stop when time is used up,
Note: Dryer door must be closed
for
dryer to operate,
When door Is open,
dryer stops, but timer continues
to run,
To restart dryer, close door and push
START/RESTARTbutton.
2 • if drying time istoo long,
make
sure lint screen is clean.
13.
Now start the dryer and allow
it to complete
a full heat cycle
(not
air cycle) to make
sure it is working
properly.
Page
11
