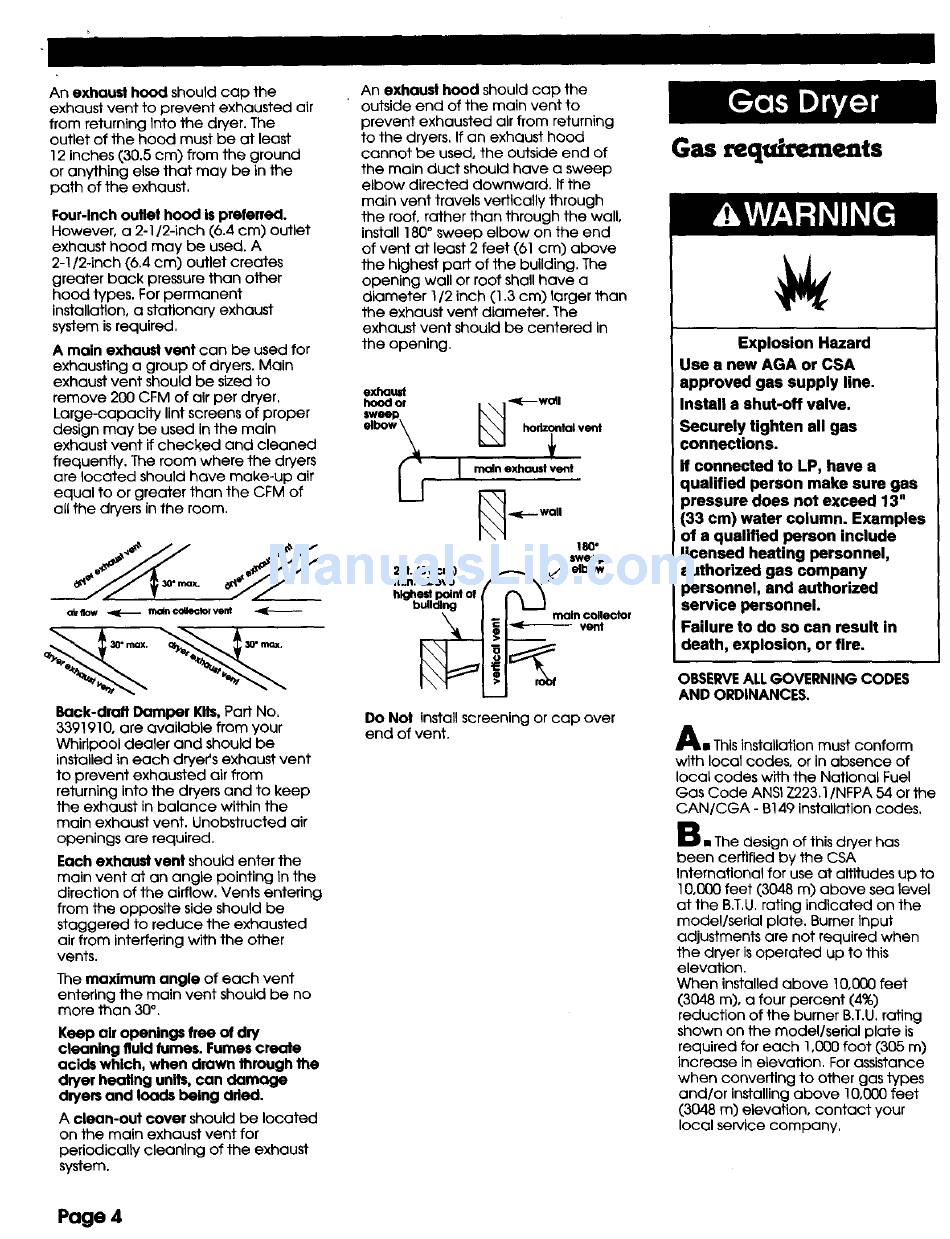

An exhaust hood should cap the
exhaust vent to prevent
exhausted
air
from returning
Into the dryer. The
outlet
of the hood
must be at least
12 inches (30.5 cm) from the ground
or anything
else that may be in the
path of the exhaust.
Four-lnch outlet hood is preferred.
However,
a 2-1/2-inch
(6.4 cm) outlet
exhaust hood may be used. A
2-1/2-inch
(6.4 cm) outlet creates
greater
back pressure than other
hood types. For permanent
installation,
a stationary
exhaust
system is required,
A main exhaust vent can be used for
exhausting
a group
of dryers. Main
exhaust
vent should be sized to
remove
200 CFM of air per dryer.
Large-capacity
lint screens of proper
design
may be used in the main
exhaust vent if checked
and cleaned
frequently.
The room where the dryers
are located
should have make-up
air
equal
to or greater
than the CFM of
all the dryers in the room.
al_fl_v
_
m_n_venl
" rex,
Back-droft Damper Kits,PartNo.
3391910, areavailable f rom your
Whirlpool d ealerand shouldbe
installed
ineach dryer's exhaust vent
to preventexhaustedair from
returning into the dryers and to keep
theexhaust inbalance wifhin the
main exhaust vent.Unobstructed air
openingsarerequired,
Each exhaust vent shouldenterthe
main vent atan angle pointing i nthe
direction oftheairflow. Ventsentering
fromthe opposite side shouldbe
staggeredto reduce the exhausted
air from interfering
withtheother
vents.
The maximum
angle of each vent
enteringthe main vent should be no
more than 30°.
Keep air openings free of dry
cleaning
fluid fumes. Fumes create
acids which, when drawn through the
dryer heating units, can damoge
dryers and loads being tided.
A clean-out
cover should be located
on the main exhaust vent for
perlodicalty cleaning of the exhaust
system.
An exhaust hood should cap the
outside end of the main vent to
prevent
exhausted
air from returning
to the dryers. If an exhaust hood
cannot
be used, the outside end of
the main duct should have a sweep
elbow directed
downward.
If the
main vent travels vertically
through
the roof, rather than through
the wall,
install 180° sweep elbow
on the end
of vent at least 2 feet (61 cm) above
the highest part of the building.
The
opening
wall or roof shall have a
diameter
1/2 inch (1.3 cm) larger than
the exhaust vent diameter.
The
exhaust vent should be centered
in
the opening,
exhaust
elbow_
hol_ntol vent
___
1
moln
exhoust v ent
_
_E--wall
211.161 cm)
j_/
elbow
building
maincollector
vent
Do Net install
screening orcap over
end ofvent,
Gas requirements
Explosion Hazard
Use a new AGA or CSA
approved gas supply line.
Install a shut-off valve.
Securely tighten all gas
connections.
If connected to LP, have a
qualified person make sure gas
pressure does not exceed 13"
(33 era) water column. Examples
of a qualified person include
licensed heating personnel,
authorized gas company
personnel, and authorized
service personnel.
Failure to do so can result in
death, explosion, or fire.
OBSERVE ALLGOVERNING CODES
AND ORDINANCES.
Ae
This installation
must conform
with local codes,
or in absence
of
local codes
with the National
Fuel
Gas Code
ANSI Z223.1/NFPA
54 or the
CAN/CGA
- B149 installation
codes,
Be
The design of this dryer has
been certified
by the CSA
International
for use at altitudes
up to
10,000 feet (3048 m) above
sea level
at the B.T,U. rating indicated
on the
model/serial
plate.
Burner input
adjustments
are not required
when
the dryer is operated
up to this
elevation.
When installed
above
10,000 feet
(3048 m),
a four percent
(4%)
reduction
of the burner B.T.U. rating
shown on the model/serial
plate
is
required
for each
1,000 foot (305 m)
increase
in elevation,
For assistance
when
converting
to other gas types
and/or
installing above
10,000 feet
(3048 m) elevation,
contact
your
localservicecompany,
