Side Panels

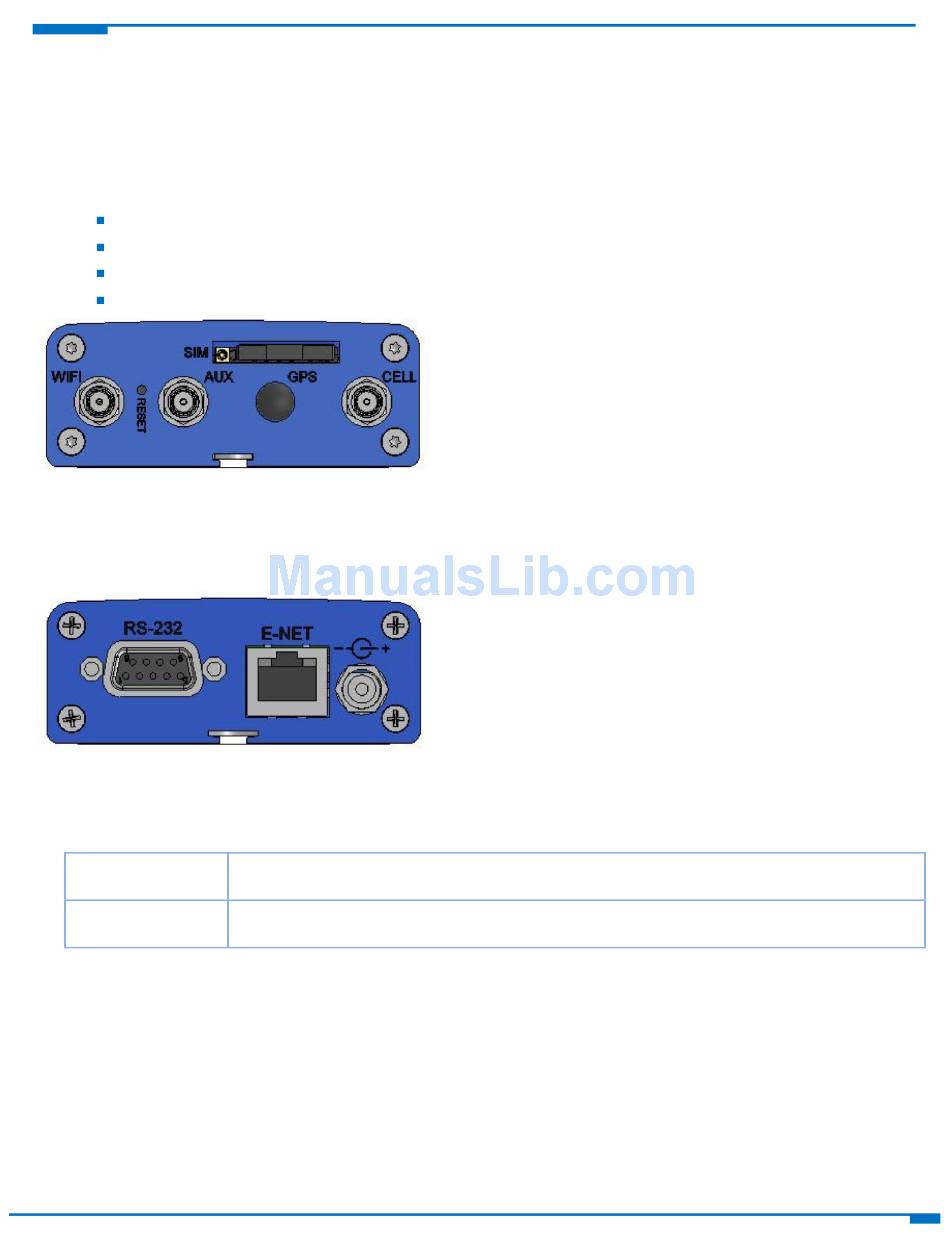

The device has connectors on either side. The figure that follows shows the side which has a SIM card
holder, as well as Wi-Fi, Auxiliary, GPS and cellular antenna connectors. It also has a reset button.
Depending on the model of your device, the following items may or may not appear:
Aux connector
GPS connector
Wi-Fi connector
SIM card slot
The figure that follows shows the other side of the device, with its RS-232 connector, Ethernet jack, and power
connector.
Ethernet LED Descriptions
Two Ethernet LEDs are physically on the RJ-45 connector. The table that follows describes these LEDs.
Ethernet Link
Ethernet Speed
MultiConnect rCell 100 Series User Guide
Right LED on Ethernet connector. Blinks when there is transmit and receive activity on the
Ethernet link. It shows a steady light when there is a valid Ethernet connection.
Left LED on Ethernet connector. Lit when the Ethernet is linked at 100 Mbps. If it is not lit, the
Ethernet is linked at 10 Mbps.
7
