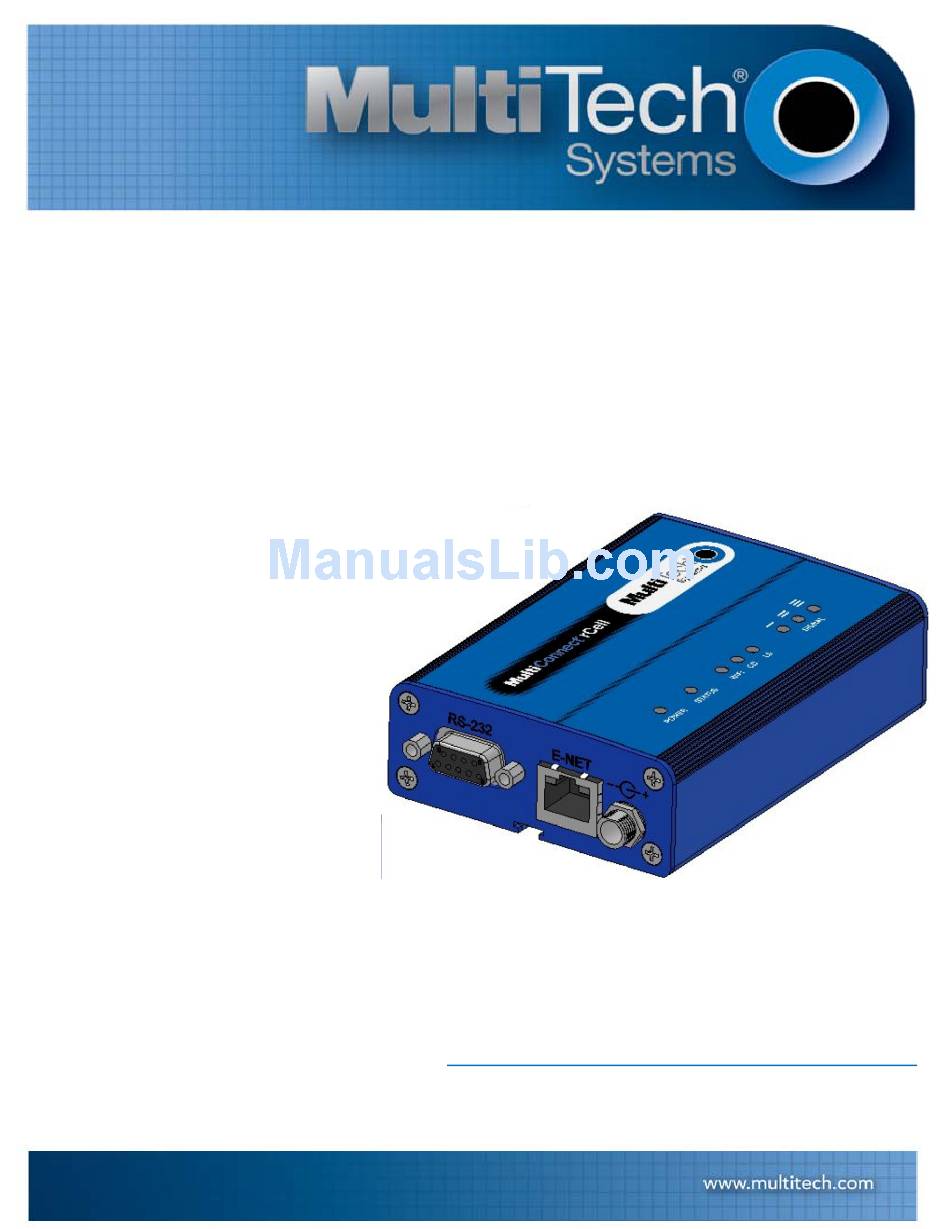

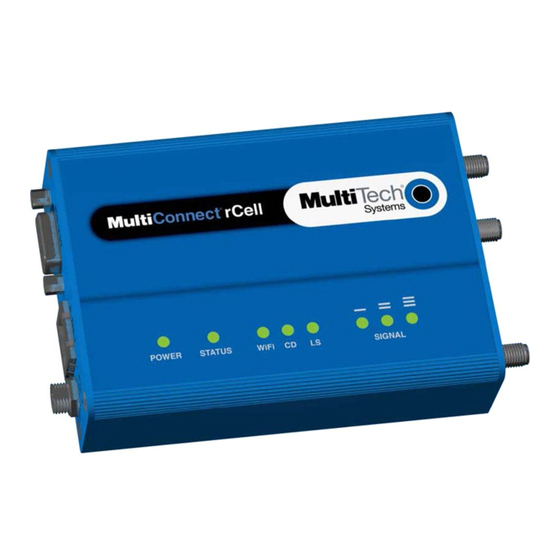

  • Page 1 MultiConnect® rCell 100 Series Router User Guide MultiConnect rCell 100 Series User Guide...
  • Page 2 Business Hours: M-F, 9am to 5pm CST Country By Email By Phone Europe, Middle East, Africa: support@multitech.co.uk (44) 118 959 7774 U.S., Canada, all others: support@multitech.com (800) 972-2439 or (763) 717-5863 Warranty Warranty information can be found at: http://www.multitech.com/warranty.go MultiConnect rCell 100 Series User Guide...

  • Page 3: Table Of Contents

    Regulatory Compliance Statements ........................19 Country/Region-Specific Statements ........................19 EMC, Safety, and R&TTE Directive Compliance ........................19 EMC Requirements for the United States ....................... 19 47 CFR Part 15 Regulation Class B Devices .......................... 19 MultiConnect rCell 100 Series User Guide...
  • Page 4 Substances of Very High Concern (SVHC) ..........................22 Restriction of the Use of Hazardous Substances (RoHS) ..................23 Information on HS/TS Substances According to Chinese Standards ..............24 Information on HS/TS Substances According to Chinese Standards (in Chinese) ..........25 MultiConnect rCell 100 Series User Guide...

  • Page 5: Product Overview

    Product Overview This guide describes the MultiConnect rCell 100 Series router. The rCell family of routers is carrier approved and ready-to-deploy. You can use your device to provide secure data communication between many types of devices that use legacy as well as the latest communication technologies. Some device models support Bluetooth and Wi-Fi communication to devices with these technologies.

  • Page 6: Package Contents

    1 Bar “ON”—Very weak signal (7 < = RSSI <14). 1 Bar and 2 Bar “ON”—Weak signal (15 < = RSSI <23). 1 Bar, 2 Bar, and 3 Bar “ON”—Good signal (24 <= RSSI > = 31). MultiConnect rCell 100 Series User Guide...

  • Page 7: Side Panels

    Ethernet link. It shows a steady light when there is a valid Ethernet connection. Ethernet Speed Left LED on Ethernet connector. Lit when the Ethernet is linked at 100 Mbps. If it is not lit, the Ethernet is linked at 10 Mbps. MultiConnect rCell 100 Series User Guide...

  • Page 8: Specifications

    Physical Description Dimensions Dimensions are shown in the section “Dimensions” that follows. Weight (Device Only) 8.2 ounces or 230 grams Environment Operating -40° C to +85° C Temperature* Humidity Relative humidity 15% to 93% non-condensing MultiConnect rCell 100 Series User Guide...

  • Page 9: Dimensions

    There is no single cause for this function. Rather, it is the result of an interaction of several factors, such as the ambient temperature, the operating mode and the transmit power. Dimensions Power Draw for MTR-H6 GPRS MultiConnect rCell 100 Series User Guide...
  • Page 10 20 volts 0.140A, 0.216A, .320A 3.03A 2.80W 4.32W 32 volts 0.090A, 0.155A, 0.250A 2.50A 2.88W 4.96W Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when Note: determining product load. MultiConnect rCell 100 Series User Guide...

  • Page 11: Rf Specifications

    869 to 894 MHz 1930 to 1990 MHz Frequency TX 824 to 849 MHz 880 to 915 MHz 1710 to 1785 MHz 1850 to 1910 MHz 824 to 849 MHz 1850 to 1910 MHz MultiConnect rCell 100 Series User Guide...

  • Page 12: Safety Warnings

    ICAO-TI/IATA-DGR (Air), Special Provision 310 of the IMDG Code, and Special Provision 188 of the ADR and RID (Road and Rail Europe). There is danger of explosion if the battery is incorrectly replaced! Warning! MultiConnect rCell 100 Series User Guide...

  • Page 13: Interference With Pacemakers And Other Medical Devices

    Keep the device on the opposite the side of the body from the pacemaker to add extra distance between the pacemaker and the device. Avoid placing a turned-on device next to the pacemaker (for example, don’t carry the device in a shirt or jacket pocket directly over the pacemaker). MultiConnect rCell 100 Series User Guide...

  • Page 14: Cellular Information

    824 – 960 MHz / 1710 – 1990 MHz / 1920 – 2170 MHz Impedance 50 Ohms VSWR VSWR should not exceed 2.0:1 at any point across the bands of operation Typical Radiated Gain 2 dBi on azimuth plane Radiation Omni-directional Polarization Linear Vertical MultiConnect rCell 100 Series User Guide...

  • Page 15: Installing The Router

    Installing the Router To use the router’s cellular features, connect a suitable antenna to the antenna connector. Some routers support Wi-Fi. To use the router’s Wi-Fi access point features, install a suitable antenna to the Wi-Fi antenna connector on the router. The Wi-Fi antenna connection is reverse polarity.

  • Page 16: Account Activation For Wireless Devices

    Note: that your wireless network provider has provisioned mobile terminated data and fixed or dynamic public IP address in which they can configure the network to redirect any incoming connection to that predefined IP. MultiConnect rCell 100 Series User Guide...

  • Page 17: Installing The Sim Card

    Installing the SIM Card If you want to operate the router on a GSM/HSPA network, install a SIM card (Subscriber Identity Module). To install the SIM: Locate the SIM card slot on the side of the router. The slot is labeled SIM. Using a slim blunt item, press the SIM tray eject button and slide the tray out of the device.

  • Page 18: Setting Up Wi-Fi And Gps

    Default settings can include OEM specific settings. To reset the device to factory default settings, press the reset button for about 3 seconds, or until all LEDs turn off. The device reboots. MultiConnect rCell 100 Series User Guide...

  • Page 19: Regulatory Compliance Statements

    Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for Warning: compliance could void the user’s authority to operate the equipment. MultiConnect rCell 100 Series User Guide...

  • Page 20: Emc Requirements For Industry Canada

    The above country-specific examples do not cover all countries with specific regulations; they are included to show you how each country may differ. If you have trouble determining your own country's requirements, check with Multi-Tech's Technical Support for assistance. MultiConnect rCell 100 Series User Guide...

  • Page 21: Waste Electrical And Electronic Equipment Statement

    For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product. July, 2005 MultiConnect rCell 100 Series User Guide...

  • Page 22: Reach Statement

    This data is controlled as part of a formal quality system and will be made available upon request. MultiConnect rCell 100 Series User Guide...

  • Page 23: Restriction Of The Use Of Hazardous Substances (Rohs)

    Lead usage in some components is exempted by the following RoHS annex, therefore higher lead concentration would be found in some modules (>1000 PPM); –Resistors containing lead in a glass or ceramic matrix compound. MultiConnect rCell 100 Series User Guide...

  • Page 24: Information On Hs/Ts Substances According To Chinese Standards

    Represents that the concentration of such hazardous/toxic substance in all the units of homogeneous material of such component is higher than the SJ/Txxx-2006 Requirements for Concentration Limits. Represents that no such substances are used or that the concentration is within the aforementioned limits. MultiConnect rCell 100 Series User Guide...

  • Page 25: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)

    铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (PB) (Hg) (CD) (CR6+) (PBB) (PBDE) 印刷电路板 电阻器 电容器 铁氧体磁环 继电器/光学部件 二极管/晶体管 振荡器和晶振 调节器 电压传感器 变压器 扬声器 连接器 螺丝、螺母以及其它五金件 交流-直流电源 软件/文档 CD 手册和纸页 底盘 表示所有使用类似材料的设备中有害/有毒物质的含量水平高于 SJ/Txxx-2006 限量要求。 表示不含该物质或者该物质的含量水平在上述限量要求之内。 MultiConnect rCell 100 Series User Guide...
