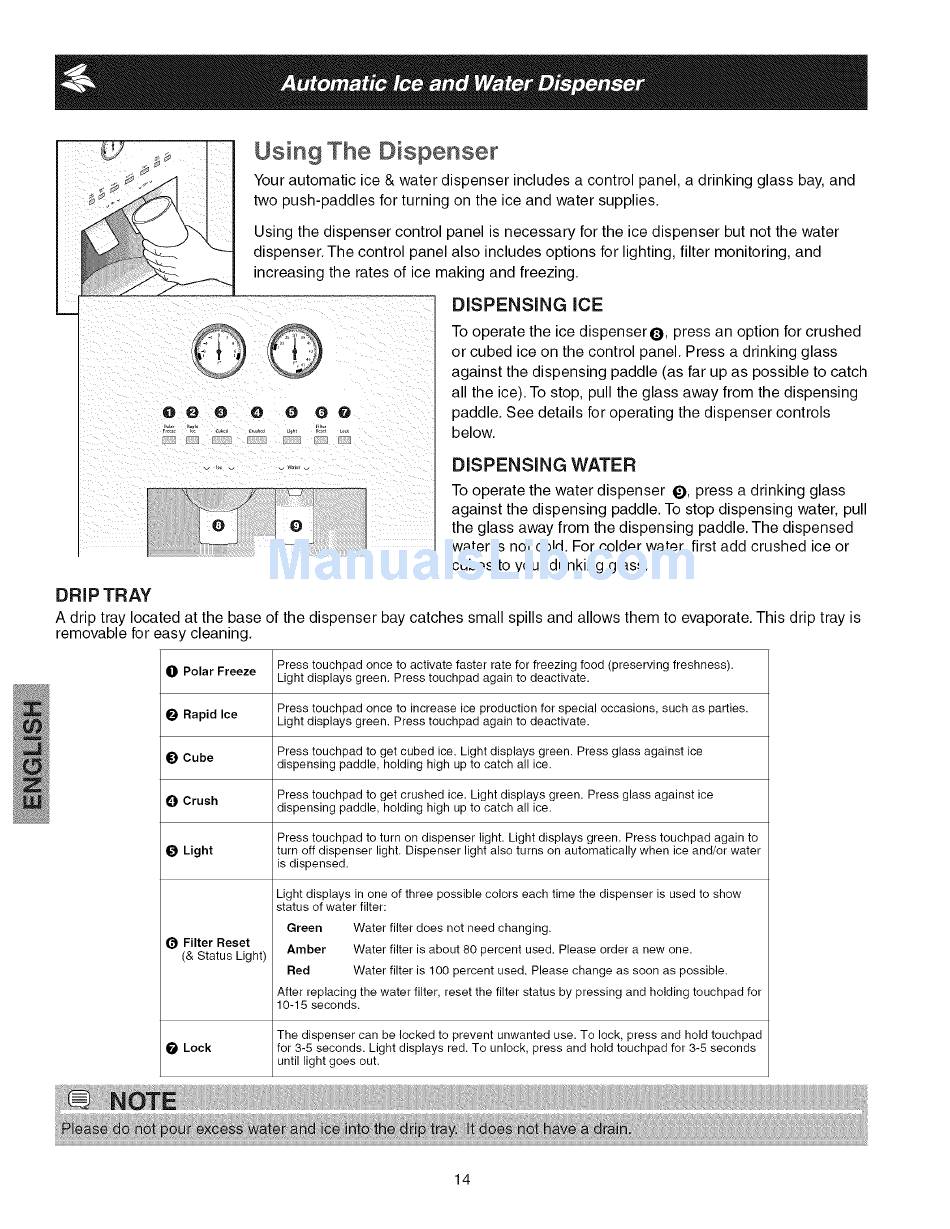

Using The Dispenser
Your automatic ice & water dispenser includes a control panel, a drinking glass bay, and
two push-paddles for turning on the ice and water supplies.
Using the dispenser control panel is necessary for the ice dispenser but not the water
dispenser. The control panel also includes options for lighting, filter monitoring, and
increasing the rates of ice making and freezing.
O0
0
0
0
O0
o,,_"
DiSPENSiNG
iCE
To operate the ice dispenser O, press an option for crushed
or cubed ice on the control panel. Press a drinking glass
against the dispensing paddle (as far up as possible to catch
all the ice). To stop, pull the glass away from the dispensing
paddle. See details for operating the dispenser controls
below.
DiSPENSiNG
WATER
To operate the water dispenser O, press a drinking glass
against the dispensing paddle. To stop dispensing water, pull
the glass away from the dispensing paddle. The dispensed
water is not cold. For colder water, first add crushed ice or
cubes to your drinking glass.
DRiP TRAY
A drip tray located at the base of the dispenser bay catches small spills and allows them to evaporate. This drip tray is
removable for easy cleaning.
Press touchpad once to activate faster rate for freezing food (preserving freshness).
O Polar Freeze
Light displays green. Press touchpad again to deactivate.
O Rapid Ice
Press touchpad once to increase ice production for special occasions, such as parties.
Light displays green. Press touchpad again to deactivate.
Press touchpad to get cubed ice. Light displays green. Press glass against ice
O Cube
dispensing paddle, holding high up to catch all ice.
Press touchpad to get crushed ice. Light displays green. Press glass against ice
O Crush
dispensing paddle, holding high up to catch all ice.
Press touchpad to turn on dispenser light. Light displays green. Press touchpad again to
O Light
turn off dispenser light. Dispenser light also turns on automatically when ice and/or water
is dispensed.
O Filter Reset
(& Status Light)
Light displays in one of three possible colors each time the dispenser is used to show
status of water filter:
Green
Water filter does not need changing.
Amber
Water filter is about 80 percent used. Please order a new one.
Red
Water filter is 100 percent used. Please change as soon as possible.
After replacing the water filter, reset the filter status by pressing and holding touchpad for
10-15 seconds.
The dispenser can be locked to prevent unwanted use. To lock, press and hold touchpad
Lock
for 3-5 seconds. Light displays red. To unlock, press and hold touchpad for 3-5 seconds
until light goes out.
14
