Press the Line/Inst and Mic Selector switch
2
(located on the top panel of the Digi 002, and
on the front panel of the Digi 002 Rack) for the
corresponding input so that it is in the "Mic"
(down) position.

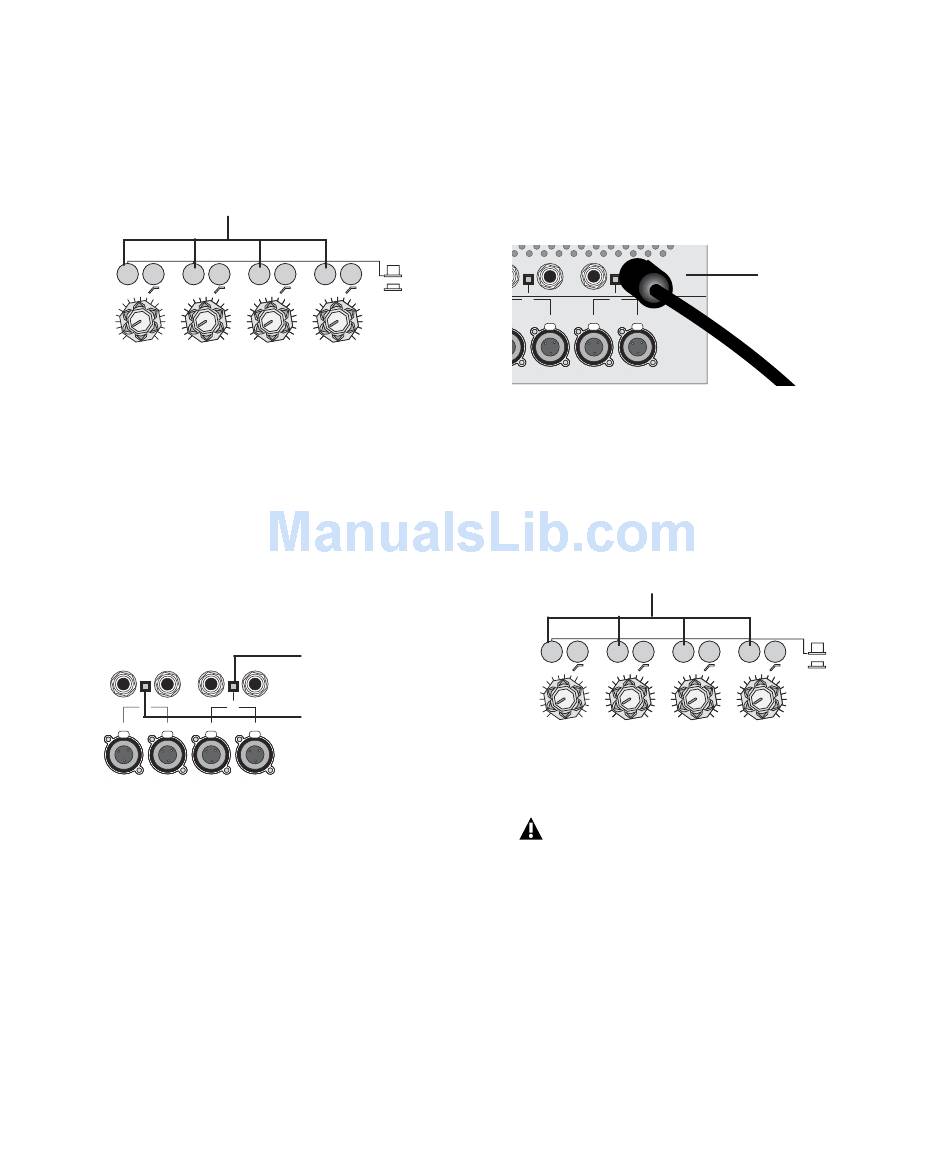

Line/Inst and Mic Selector switches (Mic position is down)
1 GAIN 2 GAIN 3 GAIN
Line/Inst and Mic Selector switches (located on the
front panel of Digi 002, and top panel of Digi 002 Rack)
If your microphone requires phantom power,
3
make sure the microphone is connected, then
press the Phantom Power switch on the back of
the Digi 002 or Digi 002 Rack (labeled 48V) for
the corresponding input pair.
Each Phantom Power switch sends 48V to its
corresponding input pair.
LINE/ INST LINE/ INST LINE/ INST LINE/ INST
48V 48V
MIC MIC MIC MIC
4 3 2 1
Phantom Power switches (back panel)
When Pro Tools is launched and the input is
4
routed to a Pro Tools track (see "Recording a
Pro Tools Session" on page 8), you can adjust
the input level with the Gain knob on the top
panel of the Digi 002, and the front panel of the
Digi 002 Rack.
LINE/ INST
MIC
4 GAIN
Phantom Power
(Mic Inputs 1 and 2)
Phantom Power
(Mic Inputs 3 and 4)
To use a microphone that has a 1/4-inch
connector:
On the back of the Digi 002 or Digi 002 Rack,
1
plug the 1/4-inch connector from your micro-
phone into one of the Line/Inst inputs. The in-
puts are numbered right to left, so Line/Inst
Input 1 is the rightmost input.
ST LINE/ INST LINE/ INST LINE/ INST
48V 48V
MIC MIC MIC
3 2 1
1/4-inch connector plugged into Line/Inst Input 1
Press the Line/Inst and Mic Selector switch
2
(located on the top panel of the Digi 002, and
on the front panel of the Digi 002 Rack) for the
corresponding input so that it is in the
"Line/Inst" (up) position.
Line/Inst and Mic Selector switches (Line/Inst position is up)
1 GAIN 2 GAIN 3 GAIN
Line/Inst and Mic Selector switches (located on the
front panel of Digi 002, and top panel of Digi 002 Rack)
If you are using a microphone with a 1/4-
inch connector, do not choose the "Mic" in-
put source because the Digi 002 or
Digi 002 Rack will not register any signal.
When Pro Tools is launched and the input is
3
routed to a Pro Tools track (see "Recording a
Pro Tools Session" on page 8), you can adjust
the input level with the Gain knob on the top
panel of the Digi 002, and the front panel of the
Digi 002 Rack.
Line/Inst Input 1
LINE/ INST
MIC
4 GAIN
Connecting a Microphone
