Digi 002 & Digi 002 Rack and MIDI
What is MIDI?
MIDI (Musical Instrument Digital Interface)
data is not audio, and has no sound. MIDI is a
way for musical devices to communicate. MIDI
is data that can trigger a MIDI device (such as a
keyboard or software synthesizer.).
In order to create or play a MIDI recording, you
must have a MIDI keyboard or sound module
(real or virtual) connected to the computer
through the MIDI ports on the Digi 002 or
Digi 002 Rack, or another MIDI interface. Audio
from your MIDI instrument can be monitored
through the Digi 002 or Digi 002 Rack, or sent
to an external mixer.
MIDI sound module
MIDI
MIDI keyboard (controller)

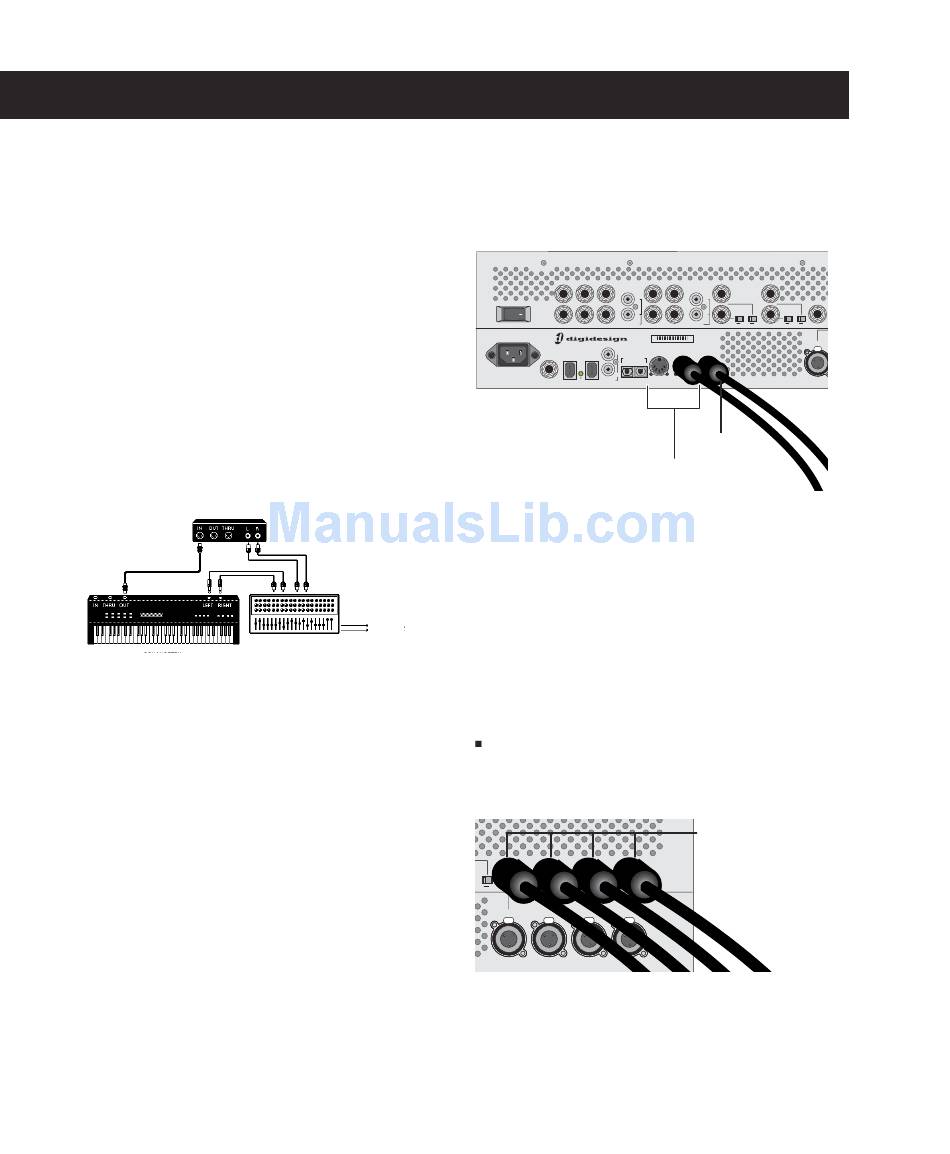

Signal paths for MIDI instruments
Connecting a MIDI Device to Digi 002 or
Digi 002 Rack
To connect your MIDI device to Digi 002 or
Digi 002 Rack:
Connect a standard 5-pin MIDI cable from the
1
MIDI Out port of your device to the MIDI In
port on the back panel of the Digi 002 or
Digi 002 Rack.
14
Digi 002 and Digi 002 Rack Basics Guide
Audio
To amplifier
Mixer
Connect another MIDI cable from the
2
MIDI In port of your device to the MIDI Out
port on the back panel of the Digi 002 or
Digi 002 Rack.
L
OUTPUT 7 OUTPUT 5 OUTPUT 3 MAIN L/1
R
ALT MAIN UNBAL
(-10 dBV OUTPUT)
OUTPUT 8 OUTPUT 6 OUTPUT 4 MAIN R/2
IN
OPTICAL
OUT IN
OUT
LINK S / PDIF
FOOT SWITCH 1394 1394 MIDI OUT 2
MIDI Out
Digi 002 or Digi 002 Rack MIDI connections
Monitoring MIDI Instruments with
Digi 002 or Digi 002 Rack
If you have a MIDI instrument that has analog
outputs, you can connect it to the Digi 002 or
Digi 002 Rack to monitor its output.
To connect your MIDI instrument for monitoring in
Pro Tools:
Connect the MIDI instrument's audio output
to a Line/Inst input on the back panel of the
Digi 002 or Digi 002 Rack.
0 +4 -10
LINE/ INST LINE/ INST LINE/ INST LINE/ INST
48V 48V
MIC MIC MIC MIC
4 3 2 1
Line/Inst Inputs on the Digi 002 and Digi 002 Rack)
L
MON OUTPUT L INPUT 7 INPUT 5
R
ALT SRC
+4 -10 +4 -10 +4 -10 +4 -10
LINE/ INST
MON OUTPUT R INPUT INPUT 8 INPUT 6
964530300294856
MIC
SERIAL NUMBER
4
MIDI OUT 1 MIDI IN
MIDI In
Line/Inst Inputs 1–4
