Getting Sound In & Out of Digi 002 or Digi 002 Rack
To hear audio recorded into a Pro Tools session,
you will need to connect headphones or an ex-
ternal sound system (such as powered monitors
or a home stereo) to Digi 002 or Digi 002 Rack.
Sound from Digi 002 and Digi 002 Rack cannot
be played through your computer's speakers or
your computer's sound output.

Connecting Headphones

There is one headphone jack, a stereo 1/4-inch
plug, on the Digi 002 and Digi 002 Rack.
MONO
MUTE
MONITOR HEADPHONE
LEVEL LEVEL

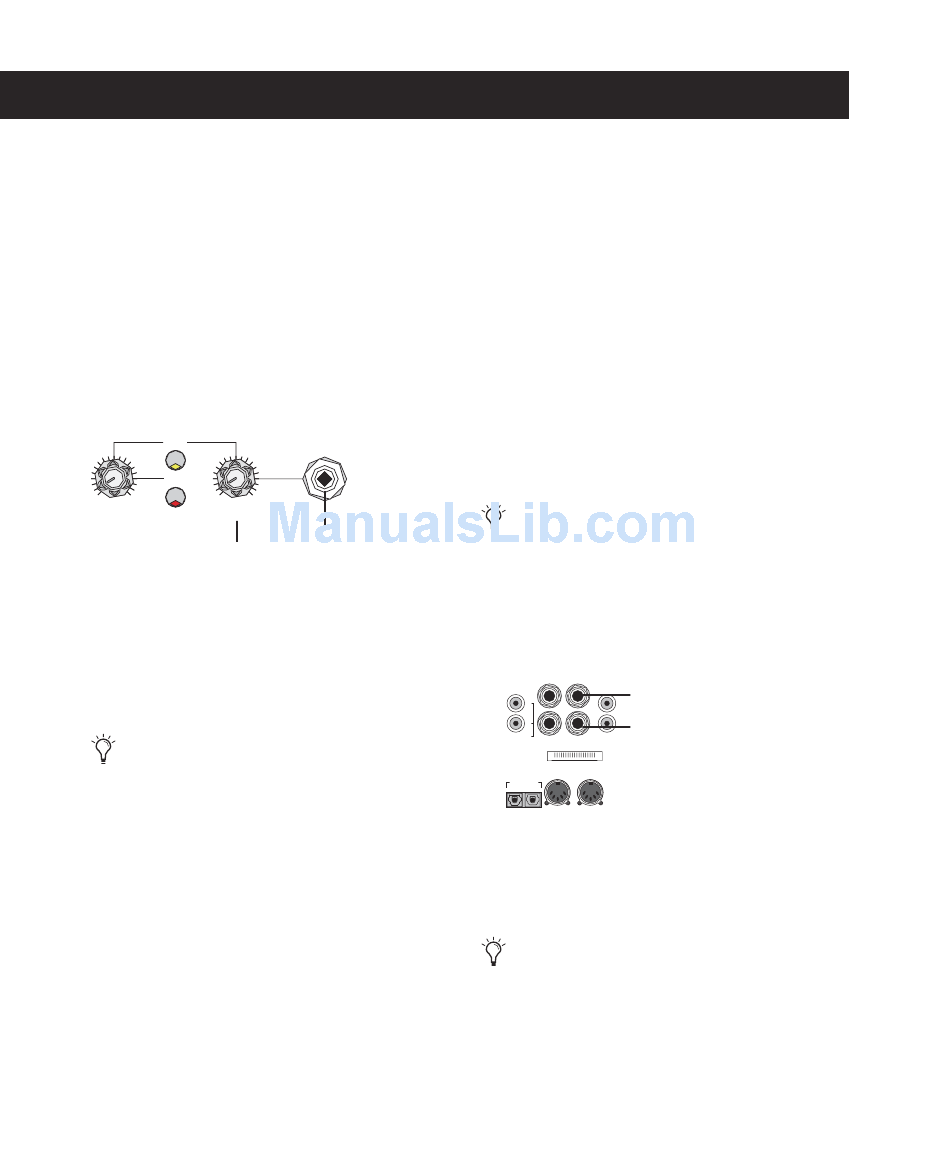

Headphone Level knob
Headphone jack (located on the top panel of
Digi 002, and on the front panel of Digi 002 Rack)
To connect headphones:
• Connect headphones with a 1/4-inch stereo
connector (or adapter) to the Headphone
jack.
The Headphone Level knob (located on the
top panel of Digi 002, and on the front
panel of Digi 002 Rack) adjusts the volume
level of the Headphone jack.
2
Digi 002 and Digi 002 Rack Basics Guide
1/4-inch Headphone jack

Connecting a Sound System

The monitor outputs (labeled "Mon") on the
back of the Digi 002 and Digi 002 Rack support
1/4-inch plugs. These connections can be bal-
anced, TRS (Tip, Ring, Sleeve) style connectors,
or unbalanced connectors. To listen to your
Pro Tools session, these outputs can be con-
nected to any amplification system: powered
speakers, a home stereo system, or an audio
mixer.
When connecting to a stereo system, connect
the left channel (often the white plug) to Mon
Output L, and right channel (often the red plug)
to Mon Output R. "Mon" is short for Monitor.
Home stereo systems often use RCA
connectors. You can use an adaptor or
a special cable to convert from the TRS
or TS connectors used by Digi 002 and
Digi 002 Rack to the RCA connectors
on your home stereo.
Mon Output L (left output)
L
MAIN L/1 MON OUTPUT L
Mon Output R (right output)
R
ALT MAIN UNBAL ALT SRC
(-10 dBV OUTPUT) MAIN R/2 MON OUTPUT R INPUT
964530300294856
SERIAL NUMBER
OPTICAL
IN
OUT
MIDI OUT 2 MIDI OUT 1
Monitor Outputs (back panel)
Mon Outputs Left and Right play the audio that
is routed to analog outputs 1 and 2 within
Pro Tools.
The Monitor Level knob (located on the top
panel of Digi 002, and on the front panel of
Digi 002 Rack) adjusts the volume level of
the Monitor Outputs.
