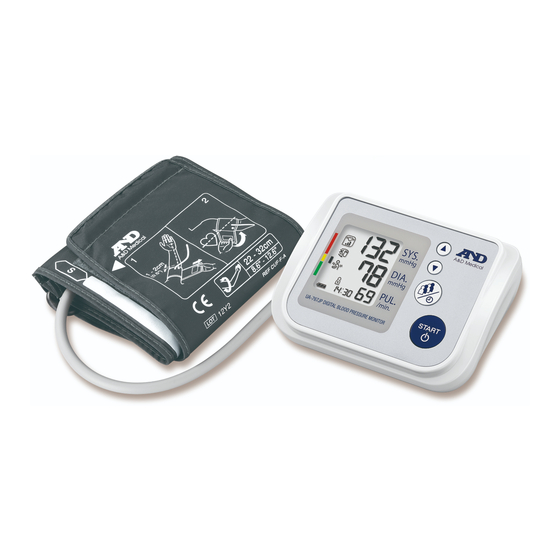

- Page 1 Digital Blood Pressure Monitor Model UA -767F/ UA-767FAC Instruction Maual Original Manual de Instrucciones Traducción 1WMPD4002977...
-
Page 2: Table Of Contents
Pressure Rating Indicator ............... 19 About Blood Pressure ..............20 What is Blood Pressure? ............20 What is Hypertension and How is it Controlled? ....... 20 Why Measure Blood Pressure at Home? ........20 Blood Pressure Classification ........... 20 Blood Pressure Variations ............21 Troubleshooting ................ -
Page 3: Welcome Message
Extremes in temperature, humidity, direct sunlight, shock or dust should be avoided. Clean the device and cuff with a dry, soft cloth or a cloth dampened with water and a neutral detergent. Never use alcohol, benzene, thinner or other harsh chemicals to clean the device or cuff. - Page 4 Do not self-diagnose the measurement results. Always consult your doctor for evaluation of the results and treatment. Do not apply cuff on an arm with other medical equipment attached. Neither equipment may function properly.
-
Page 5: Parts Identification
I.H.B. Symbol (Irregular heartbeat symbol) Systolic %IHB Pressure Cuff Fit Error Symbol Diastolic Movement Error Symbol Pressure Heart Mark JNC7 Classification Indicator Pulse Rate and Pressure Bar Indicator Date & Battery Indicator Clock Display AM / PM Mark User English 4... -
Page 6: Symbols
DIA. PUL. Pulse per minute Battery installation guide Direct current Type BF: Device, cuff and tubing are designed to provide special protection against electrical shocks. Serial number Refer to instruction manual/booklet Polarity of DC jack Symbols that appear on the display... - Page 7 Take another measurement. Unstable blood pressure due to Remain very still during movement during measurement. measurement. The systolic and diastolic values are within 10 mmHg of each other. The pressure value did not increase during the inflation. Apply the cuff correctly and take another measurement.
-
Page 8: Operation Mode
Operation Mode 1. Normal Measurement Press the START button. Blood pressure is measured and the data is stored in memory. This device can store the last 60 measurements for each of the four user in memory. 2. Recalling the Data... -
Page 9: Deleting Data Stored In Memory
4. Deleting Data Stored in Memory In standby, press both the buttons. The mark, battery indicator and user mark will appear. When you would like to delete the memory data of the currently displayed user, press and hold both the... -
Page 10: Using The Monitor
When (LOW BATTERY mark) blinks on the display, replace all batteries with new ones. Do not mix old and new batteries. It may shorten the battery life, or cause the device to malfunction. Replace the batteries two seconds or more after the device turns off. -
Page 11: Adjusting The Built-In Clock
Using the Monitor Adjusting the Built-in Clock Press and hold Adjust the clock prior to use. 1. Press and hold the SET button until the Year year starts blinking. 2. Select the year using the button. Press the SET button to set the current year and move to month/day selection. -
Page 12: Selecting The Correct Cuff Size
The arm size is printed on each cuff. The index and proper fit range, on the cuff, tell you if you are applying the correct cuff. (Refer to "Symbols that are printed on the cuff" on the next page) If the index points outside of the range, contact your local dealer to purchase a replacement cuff. -
Page 13: How To Take Accurate Measurements
For the most accurate blood pressure measurement: • Sit comfortably on a chair. Rest your arm on the table. Do not cross your legs. Keep your feet on the floor and straighten your back. • Relax for several minutes before measurement. -
Page 14: Measurement
During measurement, it is normal for the cuff to feel very tight. (Do not be alarmed). After Measurement After measurement, press the button to turn the device off. After one START minute of non-operation, the device will turn off automatically. Remove the cuff and record your data. English 13... -
Page 15: Measurement
When the measurement is complete, the systolic and diastolic pressure readings and pulse rate are displayed. Systolic pressure The cuff exhausts the remaining air and deflates completely. Diastolic pressure WHO classification When not recording the measurement data, press the button. -
Page 16: Measurement With The Desired Systolic Pressure
Measurements Measurement with the Desired Systolic Pressure Model UA-767F is designed to detect the pulse and to inflate the cuff to a systolic pressure level automatically. Use this method when re-inflation occurs repeatedly or when the results are not displayed even if the pressure decreases to 20 mmHg or less. -
Page 17: Recalling The Memory Data
Note: This device stores the last 60 measurements for each of the four user in memory. 1. Press the button. The average of all measurements and the Average systolic number of data are displayed. (If no data, “0” is displayed. Press the... - Page 18 User 1 5. Press the START button to turn the device off. After one minute of non-operation, the device will turn off automatically. User 2 User 3 User 4 English 17...
-
Page 19: What Is An Irregular Heartbeat
25% from the average of all heartbeats during the blood pressure measurement. It is important that you are relaxed, remain still and do not talk during measurements. Note: We recommend contacting your physician if you see this indicator frequently. -
Page 20: Pressure Bar Indicator
NOTE: Due to other risk factors (e.g. diabetes, obesity, smoking, etc.) in addition to your blood pressure measurement, the Pressure Rating Indicator is approximate. Please consult with your physician for interpretation and diagnosis of your blood pressure measurements. English 19... -
Page 21: About Blood Pressure
Hypertension, an abnormally high arterial blood pressure, if left unattended, can cause many health problems including stroke and heart attack. Hypertension can be controlled by altering lifestyle, avoiding stress, and with medication under a doctor’s supervision. To prevent hypertension or keep it under control:... -
Page 22: Blood Pressure Variations
30 to 50 mmHg due to various conditions during the day. In hypertensive individuals, variations are even more pronounced. Normally, the blood pressure rises while at work or play and falls to its lowest levels during sleep. So, do not be overly concerned by the results of one measurement. -
Page 23: Troubleshooting
Maintenance Do not open the device. It uses delicate electrical components and an intricate air unit that could be damaged. If you cannot fix the problem using the troubleshooting instructions, contact the authorized dealer in your area or our customer service department. -
Page 24: Technical Data
Pressure: ±3 mmHg Pulse: ±5% Power supply 4 x 1.5V batteries (R6P, LR6 or AA) or AC adapter (TB-233) UA-767F includes 4 batteries. UA-767FAC includes an AC adapter. Number of Approx. 700 times LR6 (alkaline batteries) Approx. 200 times R6P (manganese batteries) - Page 25 Accessory AC adapter The adapter is to connect the device to a power source at home. Please contact your local A&D dealer for purchasing. TB-233 Input: 120V Output: 6V 500mA 139 C Replacement cuffs sold separately Cuff Catalog Number Cuff Size Arm Size UA-290 Medium cuff...
-
Page 26: Warranty
You purchased the Product. This Limited Warranty is personal to You and is not transferable. If a Product is defective, You can return the Product to the retailer You purchased it from (if within such retailer’s return time frame) or return it to A&D in accordance with the procedure set forth...
