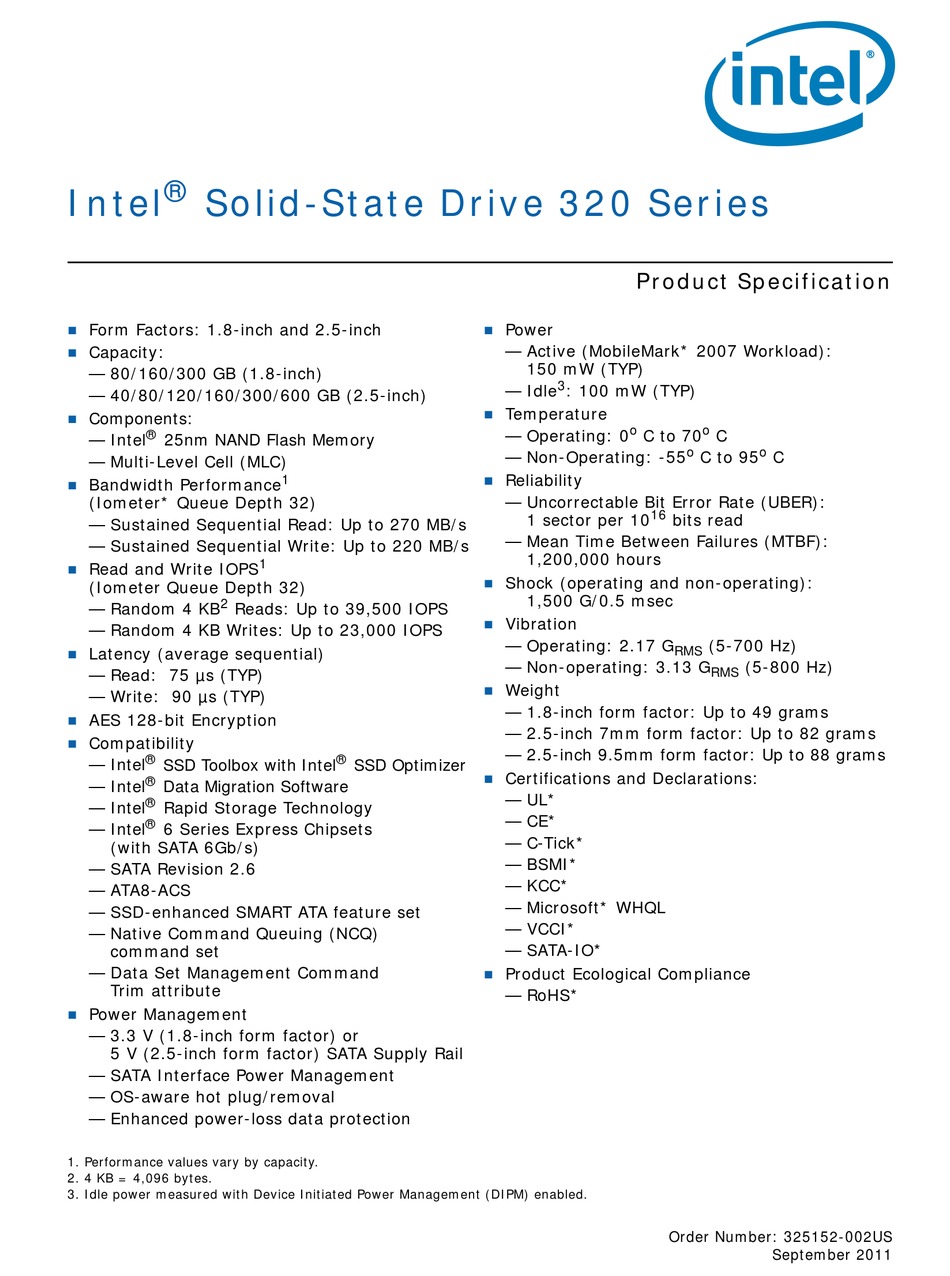

Intel
Solid-State Drive 320 Series
Form Factors: 1.8-inch and 2.5-inch
Capacity:
— 80/160/300 GB (1.8-inch)
— 40/80/120/160/300/600 GB (2.5-inch)
Components:
®
— Intel
25nm NAND Flash Memory
— Multi-Level Cell (MLC)
Bandwidth Performance
(Iometer* Queue Depth 32)
— Sustained Sequential Read: Up to 270 MB/s
— Sustained Sequential Write: Up to 220 MB/s
Read and Write IOPS
(Iometer Queue Depth 32)
2
— Random 4 KB
Reads: Up to 39,500 IOPS
— Random 4 KB Writes: Up to 23,000 IOPS
Latency (average sequential)
— Read: 75 µs (TYP)
— Write: 90 µs (TYP)
AES 128-bit Encryption
Compatibility
®
— Intel
SSD Toolbox with Intel
®
— Intel
Data Migration Software
®
— Intel
Rapid Storage Technology
®
— Intel
6 Series Express Chipsets
(with SATA 6Gb/s)
— SATA Revision 2.6
— ATA8-ACS
— SSD-enhanced SMART ATA feature set
— Native Command Queuing (NCQ)
command set
— Data Set Management Command
Trim attribute
Power Management
— 3.3 V (1.8-inch form factor) or
5 V (2.5-inch form factor) SATA Supply Rail
— SATA Interface Power Management
— OS-aware hot plug/removal
— Enhanced power-loss data protection
1. Performance values vary by capacity.
2. 4 KB = 4,096 bytes.
3. Idle power measured with Device Initiated Power Management (DIPM) enabled.
1
1
®
SSD Optimizer

Product Specification

Power
— Active (MobileMark* 2007 Workload):
150 mW (TYP)
3
— Idle
: 100 mW (TYP)
Temperature
o
— Operating: 0
C to 70
— Non-Operating: -55
Reliability
— Uncorrectable Bit Error Rate (UBER):
16
1 sector per 10
— Mean Time Between Failures (MTBF):
1,200,000 hours
Shock (operating and non-operating):
1,500 G/0.5 msec
Vibration
— Operating: 2.17 G
— Non-operating: 3.13 G
Weight
— 1.8-inch form factor: Up to 49 grams
— 2.5-inch 7mm form factor: Up to 82 grams
— 2.5-inch 9.5mm form factor: Up to 88 grams
Certifications and Declarations:
— UL*
— CE*
— C-Tick*
— BSMI*
— KCC*
— Microsoft* WHQL
— VCCI*
— SATA-IO*
Product Ecological Compliance
— RoHS*
o
C
o
o
C to 95
C
bits read
(5-700 Hz)
RMS
(5-800 Hz)
RMS
Order Number: 325152-002US
September 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solid-State Drive 320 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Intel Solid-State Drive 320 Series

Summary of Contents for Intel Solid-State Drive 320 Series

  • Page 1: Product Specification

    ® Intel Solid-State Drive 320 Series Product Specification Form Factors: 1.8-inch and 2.5-inch Power   — Active (MobileMark* 2007 Workload): Capacity:  150 mW (TYP) — 80/160/300 GB (1.8-inch) — Idle : 100 mW (TYP) — 40/80/120/160/300/600 GB (2.5-inch)

  • Page 2: Ordering Information

    Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order. Copies of documents which have an order number and are referenced in this document, or other Intel literature, may be obtained by calling 1-800-548- 4725, or go to: http://www.intel.com/design/literature.htm...

  • Page 3: Table Of Contents

    ® Intel Solid-State Drive 320 Series Contents Overview ........................5 Product Specifications ....................6 Capacity ......................6 Performance ....................... 6 Electrical Characteristics..................7 Environmental Conditions ..................7 Product Regulatory Compliance ................8 Reliability ......................9 Hot Plug Support....................9 Mechanical Information ................... 10 1.8-inch Form Factor ..................
  • Page 4 ® Intel Solid-State Drive 320 Series ® Intel Solid-State Drive 320 Series Product Specification September 2011 Order Number: 325152-002US...

  • Page 5: Overview

    Attachment (SATA)-based computers in capacities up to 600 GB. By combining Intel's leading 25nm NAND Flash Memory technology with SATA 3Gb/s interface support, the Intel SSD 320 Series delivers sequential read speeds of up to 270 MB/s and sequential write speeds of up to 220 MB/s.

  • Page 6: Product Specifications

    ® ® Intel Intel Solid-State Drive 320 Series Solid-State Drive 320 Series Product Specifications Capacity Table 1. User Addressable Sectors Unformatted Capacity Intel SSD 320 Series (Total User Addressable Sectors in LBA Mode) 40 GB 78,165,360 80 GB 156,301,488 120 GB...

  • Page 7: Electrical Characteristics

    ® Intel Solid-State Drive 320 Series Electrical Characteristics Table 5. Operating Voltage and Power Consumption Electrical Characteristics Value Operating Voltage for 5 V (+/- 5%) 4.75 V 5.25 V Power Consumption (Typical) Active 150 mW Idle 100 mW Notes: Active power measured during execution of MobileMark* 2007 with Device Initiated Power Management (DIPM) enabled.

  • Page 8: Product Regulatory Compliance

    ® ® Intel Intel Solid-State Drive 320 Series Solid-State Drive 320 Series Product Regulatory Compliance The Intel SSD 320 Series meets or exceeds the regulatory or certification requirements Table Table 7. Product Regulatory Compliance Specifications Region for which Title Description...

  • Page 9: Reliability

    ® Intel Solid-State Drive 320 Series Reliability The Intel SSD 320 Series meets or exceeds SSD endurance and data retention requirements as specified in the JESD218 specification. Reliability specifications are listed in Table Table 8. Reliability Specifications Parameter Value Uncorrectable Bit Error Rate (UBER)

  • Page 10: Mechanical Information

    Solid-State Drive 320 Series Solid-State Drive 320 Series Mechanical Information 1.8-inch Form Factor Figure 1 shows the physical package information for the 1.8-inch Intel SSD 320 Series. All dimensions are in millimeters. Figure 1. Dimensions for 1.8-inch Form Factor 2,500...

  • Page 11: 2.5-Inch Form Factors

    Intel Solid-State Drive 320 Series 2.5-inch Form Factors Figure 2 shows the physical package information for the 7mm height 2.5-inch Intel SSD 320 Series. All dimensions are in millimeters. Figure 2. Dimensions for 7mm 2.5-inch Form Factor ® Intel Solid-State Drive 320 Series...
  • Page 12 Intel Solid-State Drive 320 Series Solid-State Drive 320 Series Figure 3 shows the physical package information for the 9.5mm height 2.5-inch Intel SSD 320 Series. All dimensions are in millimeters. Figure 3. Dimensions for 9.5mm 2.5-inch Form Factor ® Intel...

  • Page 13: Pin And Signal Descriptions

    ® Intel Solid-State Drive 320 Series Pin and Signal Descriptions Pin Locations 4.1.1 1.8-inch Form Factor Pin Locations Figure 4. Layout of Signal and Power Segment Pins Signal Segment S1 Power Segment P1 4.1.2 2.5-inch Form Factor Pin Locations Figure 5.

  • Page 14: Signal Descriptions

    ® ® Intel Intel Solid-State Drive 320 Series Solid-State Drive 320 Series Signal Descriptions 4.2.1 Connector Pin Signal Definitions Table 9. Serial ATA Connector Pin Signal Definitions — 1.8-inch and 2.5-inch Form Factors Function Definition Ground 1st mate Differential signal pair A...
  • Page 15 ® Intel Solid-State Drive 320 Series Table 11. Serial ATA Power Pin Definitions — 2.5-inch Form Factor Function Definition Mating Order Not connected (3.3 V Power) Not connected (3.3 V Power) Not connected (3.3 V Power; pre-charge) 2nd Mate Ground...

  • Page 16: Supported Command Sets

    The Intel SSD 320 Series supports all the mandatory ATA (Advanced Technology Attachment) commands defined in the ATA8-ACS specification described in this section. ATA General Feature Command Set The Intel SSD 320 Series supports the ATA General Feature command set (non- PACKET), which consists of: • EXECUTE DEVICE DIAGNOSTIC •...

  • Page 17: Security Mode Feature Set

    ® Intel Solid-State Drive 320 Series Security Mode Feature Set The Intel SSD 320 Series supports the Security Mode command set, which consists of: • SECURITY SET PASSWORD • SECURITY UNLOCK • SECURITY ERASE PREPARE • SECURITY ERASE UNIT • SECURITY FREEZE LOCK •...

  • Page 18: Smart Attributes

    Intel Solid-State Drive 320 Series Solid-State Drive 320 Series 5.4.1 SMART Attributes Table 12 lists the SMART attributes supported by the Intel SSD 320 Series and the corresponding status flags and threshold settings. Table 12. SMART Attributes Status Flags Attribute...
  • Page 19 ® Intel Solid-State Drive 320 Series Table 12. SMART Attributes (Continued) Status Flags Attribute Threshold CRC Error Count The total number of encountered SATA 0 (none) interface cyclic redundancy check (CRC) errors. Host Writes The raw value of this attribute reports the...

  • Page 20: Smart Logs

    Device Statistics In addition to the SMART attribute structure, statistics pertaining to the operation and health of the Intel SSD 320 Series can be reported to the host on request through the Device Statistics log as defined in the ATA specification.

  • Page 21: Smart Command Transport (Sct)

    • Log Address E1h ("SCT Data Transfer") — used to transport data The Intel SSD 320 Series supports the following standard SCT actions: • Write Same — Intel SSD 320 Series implements this action code as described in the ATA specification.

  • Page 22: 48-Bit Address Command Set

    Intel Solid-State Drive 320 Series Solid-State Drive 320 Series 48-Bit Address Command Set The Intel SSD 320 Series supports the 48-bit Address command set, which consists of: • FLUSH CACHE EXT • READ DMA EXT • READ NATIVE MAX ADDRESS •...

  • Page 23: Certifications And Declarations

    ® Intel Solid-State Drive 320 Series Certifications and Declarations Table 15 describes the Device Certifications supported by the Intel SSD 320 Series. Table 15. Device Certifications and Declarations Certification Description Indicates conformity with the essential health and safety requirements described in European CE Compliant Directives Low Voltage Directive and EMC Directive.

  • Page 24: Terms And Acronyms

    ® ® Intel Intel Solid-State Drive 320 Series Solid-State Drive 320 Series Terms and Acronyms Table 17 defines the terms and acronyms used in this document. Table 17. Glossary of Terms and Acronyms Term Definition Advanced Technology Attachment Device Activity Signal...

  • Page 25: Revision History

    ® Intel Solid-State Drive 320 Series Revision History Date Revision Description Updated Figure 2, “Dimensions for 7mm 2.5-inch Form Factor” Updated Figure 3, “Dimensions for 9.5mm 2.5-inch Form Factor” Updated SMART attributes ABh and ACh. September 2011 Added SMART attributes B7h, C7h, BBh, E2h, E3h, and E4h.

  • Page 26: Identify Device Command Data

    ® ® Intel Intel Solid-State Drive 320 Series Solid-State Drive 320 Series Appendix A IDENTIFY DEVICE Command Data Table 18 details the sector data returned after issuing an IDENTIFY DEVICE command. Table 18. Returned Sector Data F = Fixed Word...
  • Page 27 ® Intel Solid-State Drive 320 Series Table 18. Returned Sector Data (Continued) F = Fixed Word V = Variable Default Value Description X = Both 001Fh Queue depth 0506h Serial ATA capabilities Reserved for future Serial ATA definition 0048h Serial ATA features supported...
  • Page 28 ® ® Intel Intel Solid-State Drive 320 Series Solid-State Drive 320 Series Table 18. Returned Sector Data (Continued) F = Fixed Word V = Variable Default Value Description X = Both CompactFlash Association (CFA) power mode 1 161-168 Reserved for assignment by the CFA...
