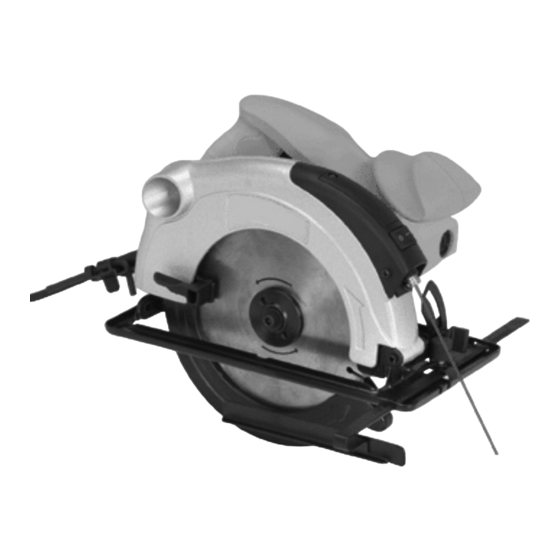

7-1/4" CIRCULAR SAW
SET Up And OpERATIng InSTRUCTIOnS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MAnUAL.
Copyright
2006 by Harbor Freight Tools
©
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 10g
WITH LASER
Model
95004
. All rights reserved. No portion of this manual or any artwork
®
Advertisement
Table of Contents
Related Manuals for Chicago Electric 95004
Summary of Contents for Chicago Electric 95004
- Page 1 7-1/4” CIRCULAR SAW WITH LASER Model 95004 SET Up And OpERATIng InSTRUCTIOnS Visit our website at: http://www.harborfreight.com Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MAnUAL. Copyright 2006 by Harbor Freight Tools .
-
Page 2: Important Safety Information
Unmodified plugs and matching outlets injury. will reduce risk of electric shock. Avoid body contact with grounded surfaces such as pipes, radiators, SKU 95004 For technical questions, please call 1-800-444-3353. Page 2... - Page 3 Ensure the switch is in the off- switch does not turn it on and off. position before connecting to power Any power tool that cannot be controlled source and/or battery pack, picking SKU 95004 For technical questions, please call 1-800-444-3353. Page 3...
-
Page 4: Circular Saw Safety Warnings
This will and bolt were specially designed for ensure that the safety of the power tool your saw, for optimum performance and is maintained. safety of operation. SKU 95004 For technical questions, please call 1-800-444-3353. Page 4... - Page 5 When restarting a saw in the Lower guard may operate sluggishly due workpiece, center the saw blade in SKU 95004 For technical questions, please call 1-800-444-3353. Page 5...
- Page 6 People with pacemakers should such blades. consult their physician(s) before use. Electromagnetic fields in close proximity place the larger portion of the saw to heart pacemaker could cause base on the larger, supported part of SKU 95004 For technical questions, please call 1-800-444-3353. Page 6...
-
Page 7: Vibration Safety
To reduce vibration, maintain the tool It must be understood by the operator as explained in this manual. If any REV 10g SKU 95004 For technical questions, please call 1-800-444-3353. Page 7... -
Page 8: Double Insulated Tools: Tools With Two Prong Plugs
Tools marked “Double Insulated” do not suffix “W-A” (“W” in Canada) to indicate it require grounding. They have a special is acceptable for outdoor use. double insulation system which satisfies OSHA requirements and complies with SKU 95004 For technical questions, please call 1-800-444-3353. Page 8... - Page 9 * Based on limiting the line volt- TABLE A age drop to five volts at 150% of the rated amperes. Symbology Double Insulated Canadian Standards Association Underwriters Laboratories, Inc. Volts Alternating Current Amperes No Load Revolutions per Minute n 0 xxxx/min. (RPM) SKU 95004 For technical questions, please call 1-800-444-3353. Page 9...
-
Page 10: Specifications
Switch to its “On” or “OFF” positions. FROM ACCIdEnTAL OpERATIOn: Turn the Trigger of the tool off and unplug the tool from its electrical outlet before assembling or making any adjustments to the tool. REV 10g SKU 95004 For technical questions, please call 1-800-444-3353. Page 10... -
Page 11: Tool Set Up
Blade Housing (11). Release the Safety Cover (18), and allow it to return to its original position. Re-install the Outer Plate (18). While depressing the Spindle Lock (39), use the accessory Hex Wrench (69) to firmly re-tighten the Screw (48) back into the SKU 95004 For technical questions, please call 1-800-444-3353. Page 11... - Page 12 Base (4) and achieve the desired cutting distance using the Scale. Then, retighten the Screw to lock the Guide Ruler in position. nOTE: The Guide Ruler can be used from either side of the Base. SKU 95004 For technical questions, please call 1-800-444-3353. Page 12...
-
Page 13: Work Piece And Work Area Set Up
Once all adjustments are made, plug the Power Cord/Plug (68) into the nearest 120 volt, grounded, electrical outlet. REV 10g SKU 95004 For technical questions, please call 1-800-444-3353. Page 13... -
Page 14: Maintenance And Servicing
Saw Blade when needed. down more than 1/2, replace both Carbon Brushes. If, however, the Carbon Brushes are just dirty they may be cleaned by rubbing them with a pencil eraser. SKU 95004 For technical questions, please call 1-800-444-3353. Page 14... -
Page 15: Troubleshooting
See Extension Cords in GROUNDING section. Follow all safety precautions whenever diagnosing or servicing the tool. disconnect power supply before service. SKU 95004 For technical questions, please call 1-800-444-3353. Page 15... -
Page 16: Parts List
Power Cord/Plug Gear Hex Wrench Spring Washer (#5) Screw (ST4.2 x 12) Wave Spring Washer (#12) Left Handle C-Ring (#12) Screw (ST$.2 x 16) Oilless Bearing Screw (M5 x 25) Gear Box Laser Switch SKU 95004 For technical questions, please call 1-800-444-3353. Page 16... -
Page 17: Assembly Diagram
If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. SKU 95004 For technical questions, please call 1-800-444-3353. Page 17... -
Page 18: Limited 1 Year / 90 Day Warranty
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTy IS ExPRESSLy IN LIEU Of ALL OTHER WARRANTIES, ExPRESS OR IMPLIED, INCLUDING THE WARRANTIES Of MERCHANTABILITy AND FITNESS. SKU 95004 For technical questions, please call 1-800-444-3353. Page 18...
