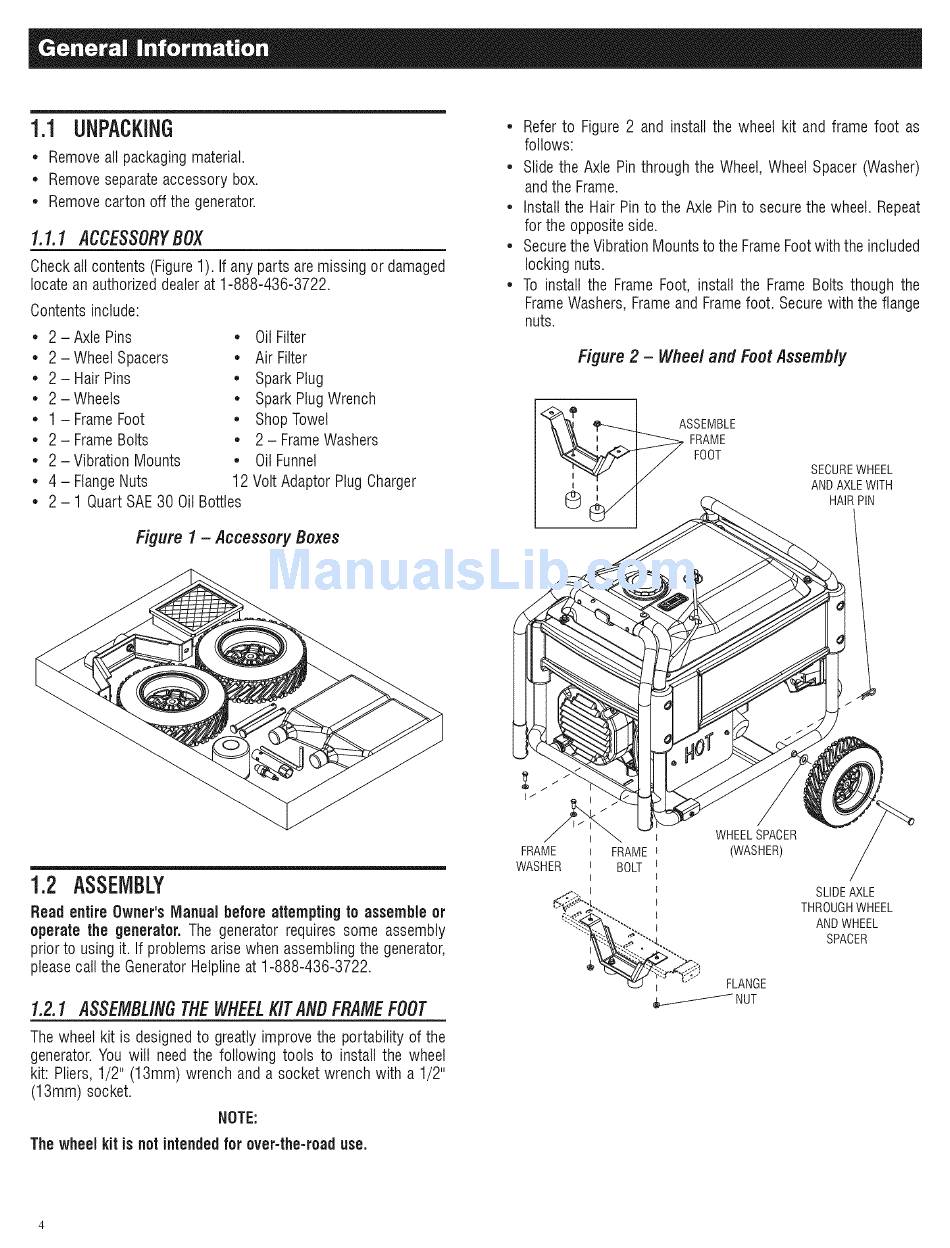

1.1 UNPACKING
• Removeall packagingmaterial.
• Removeseparateaccessory box.
• Removecarton off the generator.
1.1.1 ACCESSORY B OX
Checkall contents (Figure1). If any parts are missing or damaged
locate an authorizeddealer at 1=888=436=3722.
Contents include:
• 2-Axle Pins • Oil Filter
• 2- Wheel Spacers • Air Filter
• 2- Hair Pins • Spark Plug
• 2- Wheels • Spark Plug Wrench
• 1 - FrameFoot • Shop Towel
• 2 - FrameBolts • 2 - FrameWashers
• 2-Vibration Mounts • Oil Funnel
• 4 - FlangeNuts 12 Volt Adaptor Plug Charger
• 2 - 1 Quart SAE 30 Oil Bottles
Figure 1 - Accessory Boxes
• Refer to Figure 2 and install the wheel kit and frame foot as
follows:
• Slide the Axle Pin through the Wheel, Wheel Spacer (Washer)
and the Frame.
• Install the Hair Pin to the Axle Pin to secure the wheel. Repeat
for the opposite side.
• Securethe VibrationMountsto the FrameFootwith the included
locking nuts.
• To install the Frame Foot, install the Frame Bolts though the
FrameWashers, Frameand Framefoot. Securewith the flange
nuts.
Figure 2 - Wheel and Foot Assembly
FOOT
SECURE WHEEL
ANDAXLEWITH
HAIRPIN
1.2 ASSEMBLY
Read entire Owner's Manual before attempting to assemble or
operate the generator. The generator requires some assembly
prior to using it. If problems arise when assemblingthe generator,
pleasecall the GeneratorHelplineat 1=888=436=3722.
1.2.1 ASSEMBLING THEWHEEL KITANB FRAMEFOOT
The wheel kit is designedto greatly improve the portability of the
generator.You will need the following tools to install the wheel
kit: Pliers, 1/2" (13mm) wrench and a socket wrench with a 1/2"
(13mm) socket.
NOTE:
The wheel kit is not intendedfor over-the-road use.
FRAME
WASHER
I FRAME
I BOLT
I
I
WHEELSPACER
(WASHER)
FLANGE
SLIDEAXLE
THROUGH WHEEL
ANDWHEEL
SPACER
