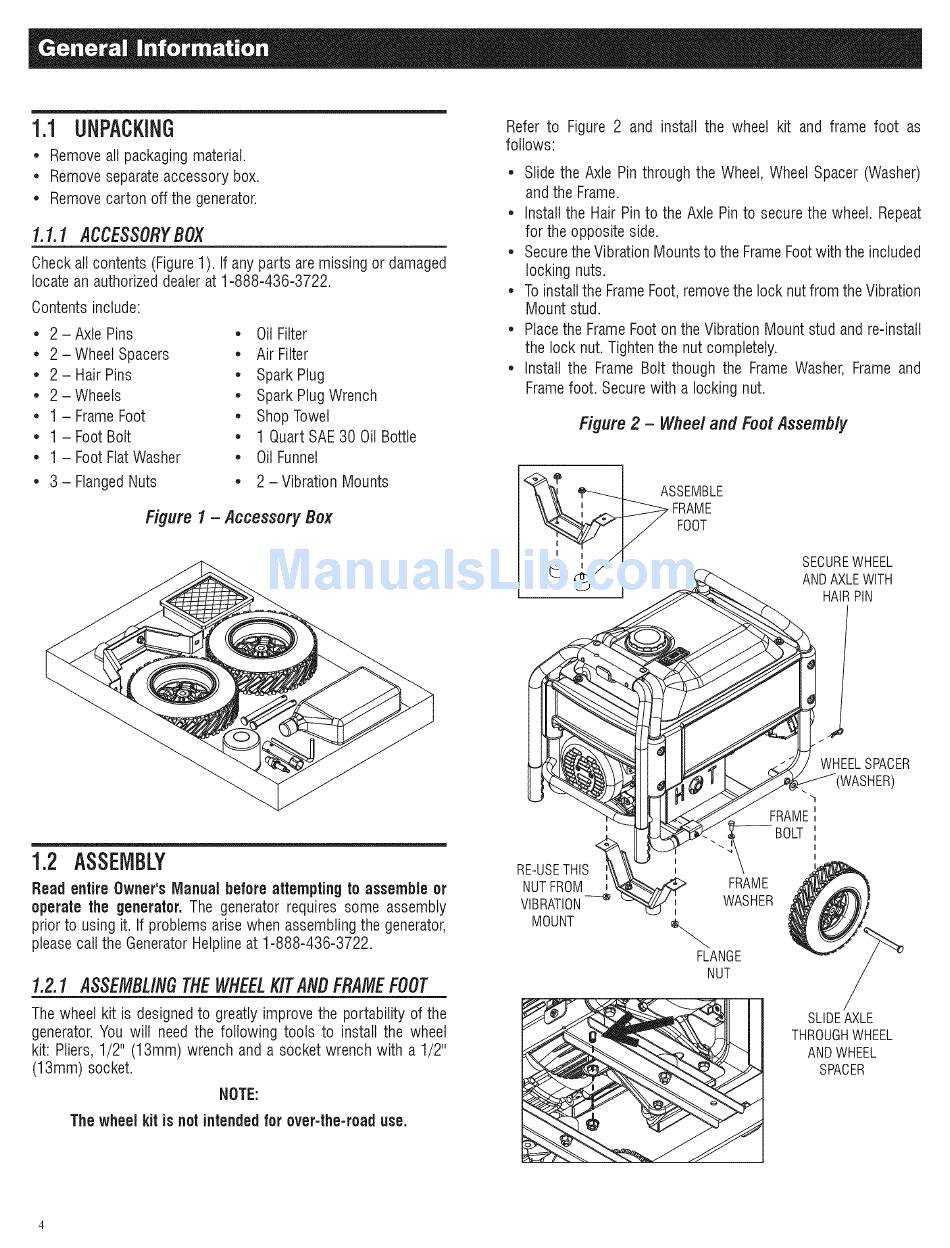

1.1 UNPACKING
• Removeall packagingmaterial.
• Removeseparateaccessory box.
• Removecarton off the generator.
1.1.1 ACCESSORY B OX
Checkall contents (Figure1). If any parts are missing or damaged
locate an authorizeddealer at 1-888-436-3722.
Contentsinclude:
• 2-Axle Pins • Oil Filter
• 2- WheelSpacers • Air Filter
• 2- Hair Pins • SparkPlug
• 2- Wheels • SparkPlug Wrench
• 1 - FrameFoot • Shop Towel
• 1 - Foot Bolt • 1 Quart SAE 30 Oil Bottle
• 1 - Foot Flat Washer • Oil Funnel
• 3 - FlangedNuts • 2 - Vibration Mounts
Figure 1 - Accessory Box
Refer to Figure 2 and
follows:
e
e
e
e
e
e
install the wheel kit and frame foot as
Slide the Axle Pin through the Wheel, Wheel Spacer (Washer)
and the Frame.
Installthe Hair Pin to the Axle Pin to secure the wheel. Repeat
for the opposite side.
Securethe VibrationMountsto the FrameFootwith the included
locking nuts.
Toinstall the FrameFoot,removethe lock nut from the Vibration
Mount stud.
Placethe Frame Footon the Vibration Mount stud and re-install
the lock nut. Tightenthe nut completely.
Install the Frame Bolt though the Frame Washer, Frame and
Framefoot. Securewith a locking nut.
Figure 2 - Wheel and Foot Assembly
ASSEMBLE
FRAME
FOOT
SECURE WHEEL
AND AXLE WITH
HAIR PIN
t
1.2 ASSEMBLY
Read entire Owner's Manual beforeattemptingto assemble or
operate the generator. The generator requires some assembly
prior to using it. If problems arise when assemblingthe generator,
pleasecall the GeneratorHelplineat 1-888-436-3722.
1.2.1 ASSEMBLING THEWHEEL KITANDFRAMEFOOT
The wheel kit is designedto greatly improve the portability of the
generator.You will need the following tools to install the wheel
kit: Pliers, 1/2" (13mm) wrench and a socket wrench with a 1/2"
(13mm) socket.
NOTE:
The wheel kit is not intendedfor over-the-roaduse.
RE-USE THIS
NUTFROM
VIBRATION --¢
MOUNT
J
WHEEL SPACER
h
FRAME
WASHER
FLANGE
NUT
FRAME
BOLT
SLIDEAXLE
THROUGH WHEEL
ANDWHEEL
SPACER
