LIFESTYLER C230 831.287630 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SEARS °
Model No. 831.287630
Serial No.
The serialnumbercan be found in the
location shownbelow.Writethe serial
number in thespaceabove.
\
Serial Number Decal
CAUTION!
Read all safety precautions
and instructions in this
manual before using this
equipment. Keep this manual
In a safe place for future
reference.
PATENT PENDING
®
MAGNETIC
SILENT
DRIVE • QUIK D IAL A DJUSTABLE
RESISTANCE
OWNER'S MANUAL
SEARS,
ROEBUCK
AND CO., HOFFMAN
ESTATES,
IL 60179

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C230 831.287630 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LIFESTYLER C230 831.287630

Summary of Contents for LIFESTYLER C230 831.287630

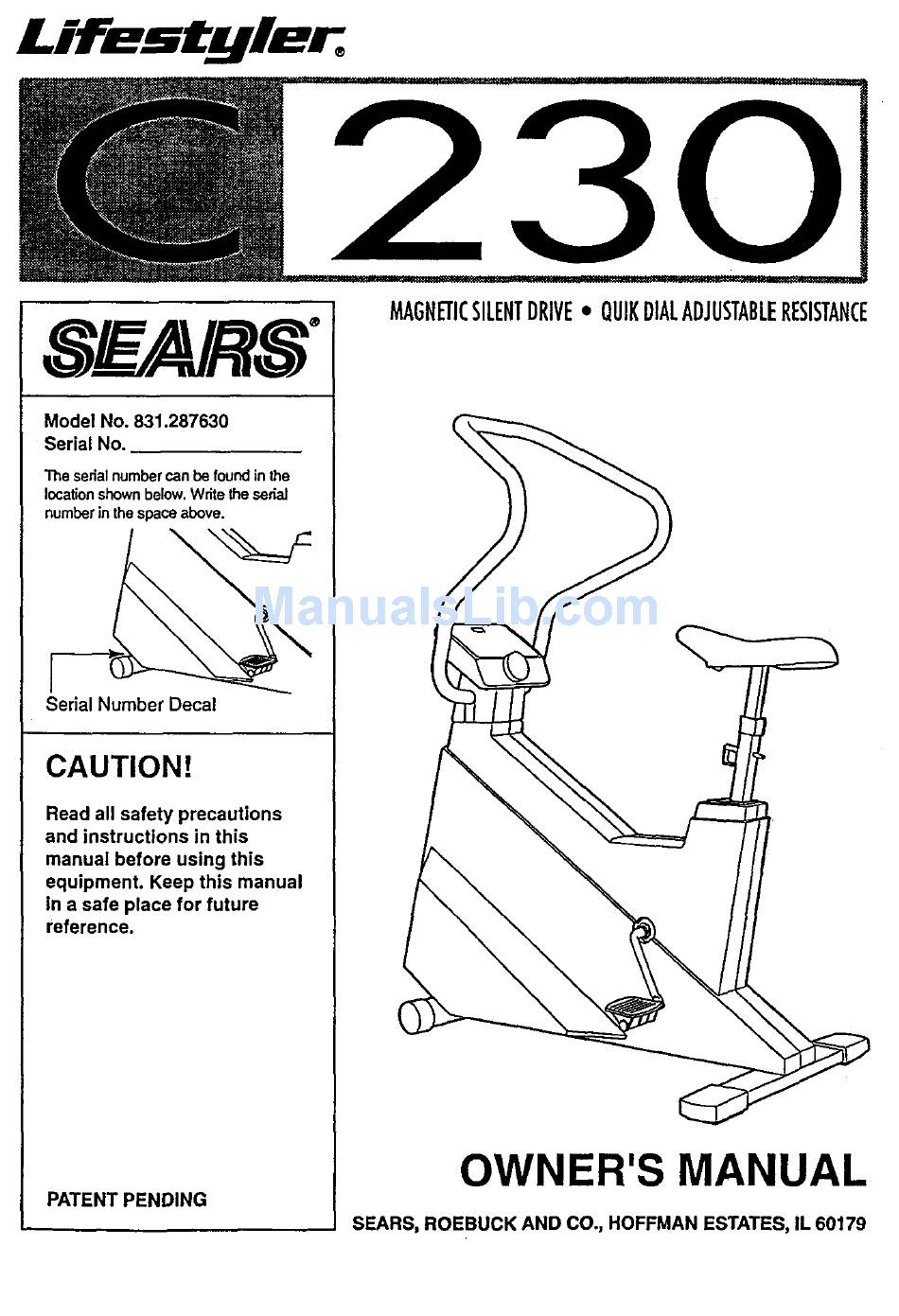

  • Page 1 ® MAGNETIC SILENT DRIVE • QUIK D IAL A DJUSTABLE RESISTANCE SEARS ° Model No. 831.287630 Serial No. The serialnumbercan be found in the location shownbelow.Writethe serial number in thespaceabove. Serial Number Decal CAUTION! Read all safety precautions and instructions in this manual before using this equipment.

  • Page 2: Important Safety Precautions

    TABLE OF CONTENTS IMPORTANT SAFETY PRECAUTIONS ..........BEFORE YOU BEGIN ..............ASSEMBLY ............... ADJUSTMENT AND OPERATION ............. TROUBLE-SHOOTING AND MAINTENANCE ..........CONDITIONING GUIDELINES ............PART LIST ............... EXPLODED DRAWING ............. ORDERING REPLACEMENT PARTS .......... Back Cover LIMITED WARRANTY ............Back Cover IMPORTANT SAFETY PRECAUTIONS WARNING: To reduce the risk of serious Injury, read the following important safety precautions before using the exercise bike.

  • Page 3: Before You Begin

    The sophisticated LIFESTYLER C 230 offers an impressive array of features to let you enjoy this healthful exercise in the convenience and privacy of your home.
  • Page 4 ASSEMBLY Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Read all steps carefully before beginning. Use the PART IDENTIFICATION CHART below to identify the small hardware used in assembly. The number in parenthesis beneath each part refers to the key number of the part.
  • Page 5 Remove the four 1/4" Seat Nuts (7) from the underside of the Seat (5). Remove the Seat Post (6) from the Frame (11). Attach the Seat to the top of the Seat Post with the " four 1/4" Seat Nuts, Insert the Seat Post (6) into the Frame (11), adjust the Seat (5) to the desired height, and insert the Seat Pin (8) through the front of the Frame and the Seat Post.

  • Page 6: Adjustment And Operation

    7. Hold one of the Pedal Shafts (38) with the included wrench tool, and use an adjustable wrench to remove the 1/2" Nylock Nut (46) from the Pedal Shaft. Make sure that the 9/16" Washer (32) remains on the Pedal Shaft. Using the included wrench tool, firmly tighten the Pedal Shaft clockwise into one arm of the Crank (27).
  • Page 7 DISTANCE.Displaysthe total distanceyou have pedaled, in miles. CALORIE.D-Displays the total number of Calodes you have burned. Note: If the pedaling resistance is near the lowest or highest setting, the actual number of Calories you have burned will be slightly lower or higher than the number displayed.

  • Page 8: Troubleshooting

    TROUBLE-SHOOTING AND MAINTENANCE Inspect and tighten all parts regularly.Outer surfaces of the exercise bike can be cleaned using a damp cloth and mild, non-abrasive detergent. Keep liquids away from the console. ELECTRONIC MONITOR If the LCD display becomes faint, or if the electronic monitor does not function properly, the batteries should be replaced.
  • Page 9 CONDITIONING GUIDELINES The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results. WARNING: Before beginning this or any exercise program, consult your physlclan. Thls Is especially Important for persons over the age of 36 or persons with pre-existing health problems.
  • Page 10 PART LIST--Model No. 831.287630 R994A Part Part Qty. Description Qty. Description 119809 Console 100335 Reed Switch/Sensor Wire 119539 Right Handlebar 101494 9/16"Washer 014073 5/16" FlatWasher 013484 5/16" x 1/2" Screw 013576 6 _. 1/2" Phillips Screw 119808 Right Side Shield 105022 Seat 113792...
  • Page 11 EXPLODED DRAWING--Model No. 831.287630 R994A ./" CRANK HARDWARE(4_...

  • Page 12: Ordering Replacement

    ORDERING REPLACEMENT PARTS Each EXERCISE BIKE has its own MODEL NUMBER. Always mention this MODEL NUMBER when requesting service or repair parts for your EXERCISE BIKE. All parts listed herein can be ordered through SEARS, ROEBUCK AND CO. SERVICE CENTERS and most SEARS RETAIL STORES.
