Section 2: Assembly and Installation
ƒ Height: 253 mm (9.96 inches)
ƒ Diameter: 150 mm (5.9 inches)
ƒ Weight: 770 g (1.7 lbs)

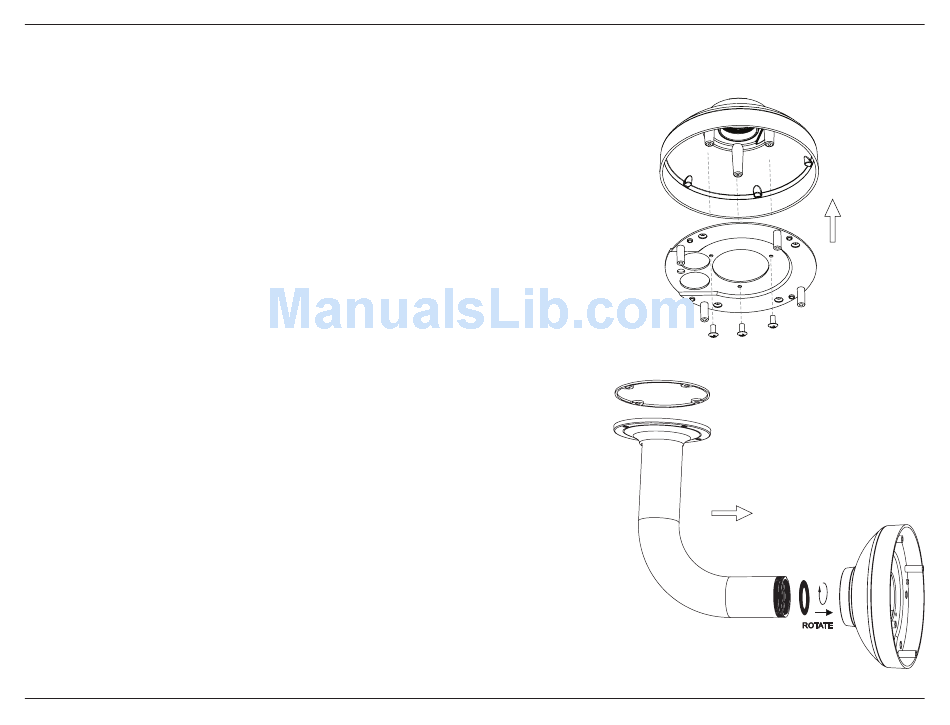

1. Attach the mounting plate to the bracket cap using the three screws.
2. Locate a suitable position on the wall for a 34mm (+2 / –0 mm) hole to be cut. A
template is included to aid in marking the mounting hole.
3. Cut a hole in the ceiling according to the template
4. Drill four separate 6mm holes corresponding to the holes in the mounting template
and insert the plastic anchors into these holes.
5. Place the rubber seal between the wall mount bracket and the wall to ensure a
waterproof seal between the wall and the bracket.
6. Attach the wall mount bracket to the wall using the screws provided.
7. Attach the bracket cap to the bottom of the wall mount bracket by rotating the cap
counterclockwise to tighten it into place.
8. Insert the screw into the base of the wall mount bracket at the top of the bracket
cap to secure the bracket cap into place.
9. Connect the Ethernet cable and the power cable and thread them through the wall
mount bracket.
D-Link DCS-6513 User Manual

Bent Mount (Optional)

Mounting
Plate
Bent
Bracket
Bracket
Bracket
Cap
Cap
