Section 1: Product Overview
1 BNC Connector
2 Power Connector
3 Audio In (A.In)
4 Audio Out (A.Out)
5 DI/DO Connector
6 Reset Button
7 24 V Power Connector
D-Link DCS-6513 User Manual

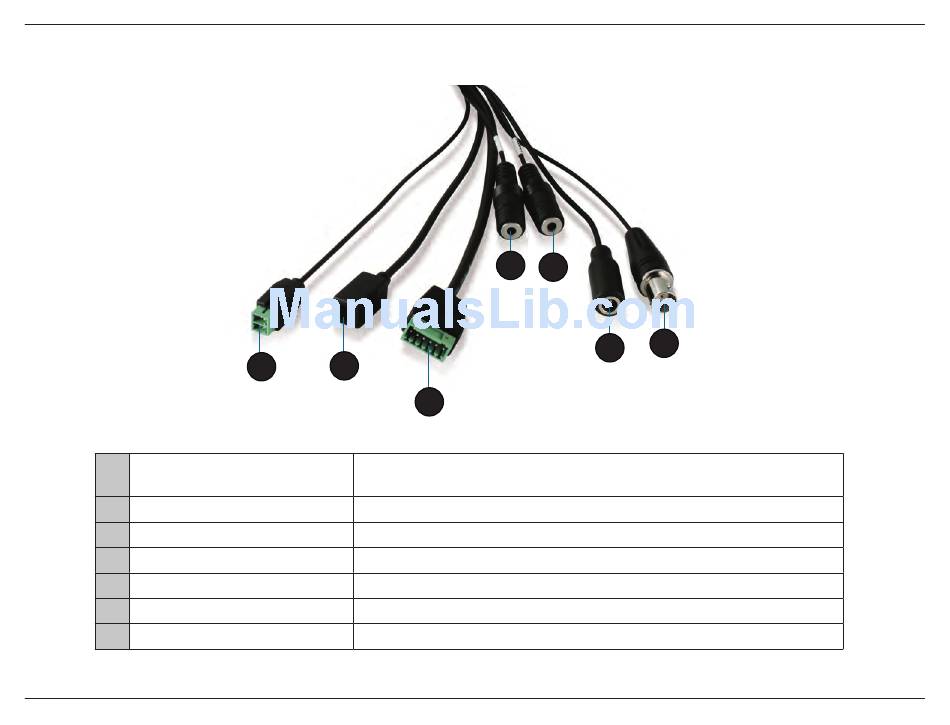

Cable Harness

6
7
5
The BNC connector is recommended for use with handheld monitors to
check the Field of View during installation.
Power connector for the provided 12V DC power adapter.
Connects to a microphone.
Connects to a speaker.
I/O connectors for external devices. 12V DC output.
Press and hold the recessed button for 10 seconds to reset the camera.
Connects to 24 V AC power supply.
4
3
1
2
8
