Section 2: Assembly and Installation

ƒ Height: 23 mm (0.9 inches)

ƒ Diameter: 183 mm (7.2 inches)

ƒ Weight: 400 g (0.9 lbs)

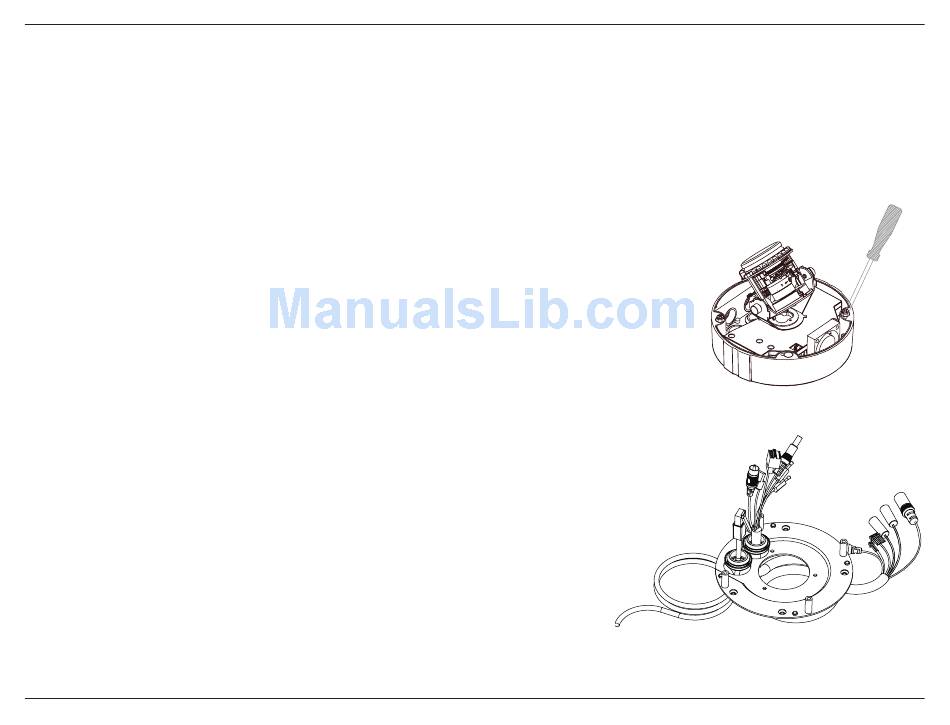

1. Disassemble the camera enclosure (see page 9).

2. Thread the cables through the waterproof plugs at the bottom of the base of the camera.

Attach the cables to the corresponding cable connectors.

3. Locate a suitable position on the ceiling for the mounting plate to be installed.

4. Use the mounting template to mark the holes for installation.

5. Cut an access hole in the ceiling for the cables.

6. Drill four separate 6mm holes corresponding to the holes in the mounting template and insert

the plastic anchors into these holes.

7. Attach the surface bracket to the ceiling using the screws provided

D-Link DCS-6513 User Manual

Assembly and Installatio

Standard Mounting Instructions
