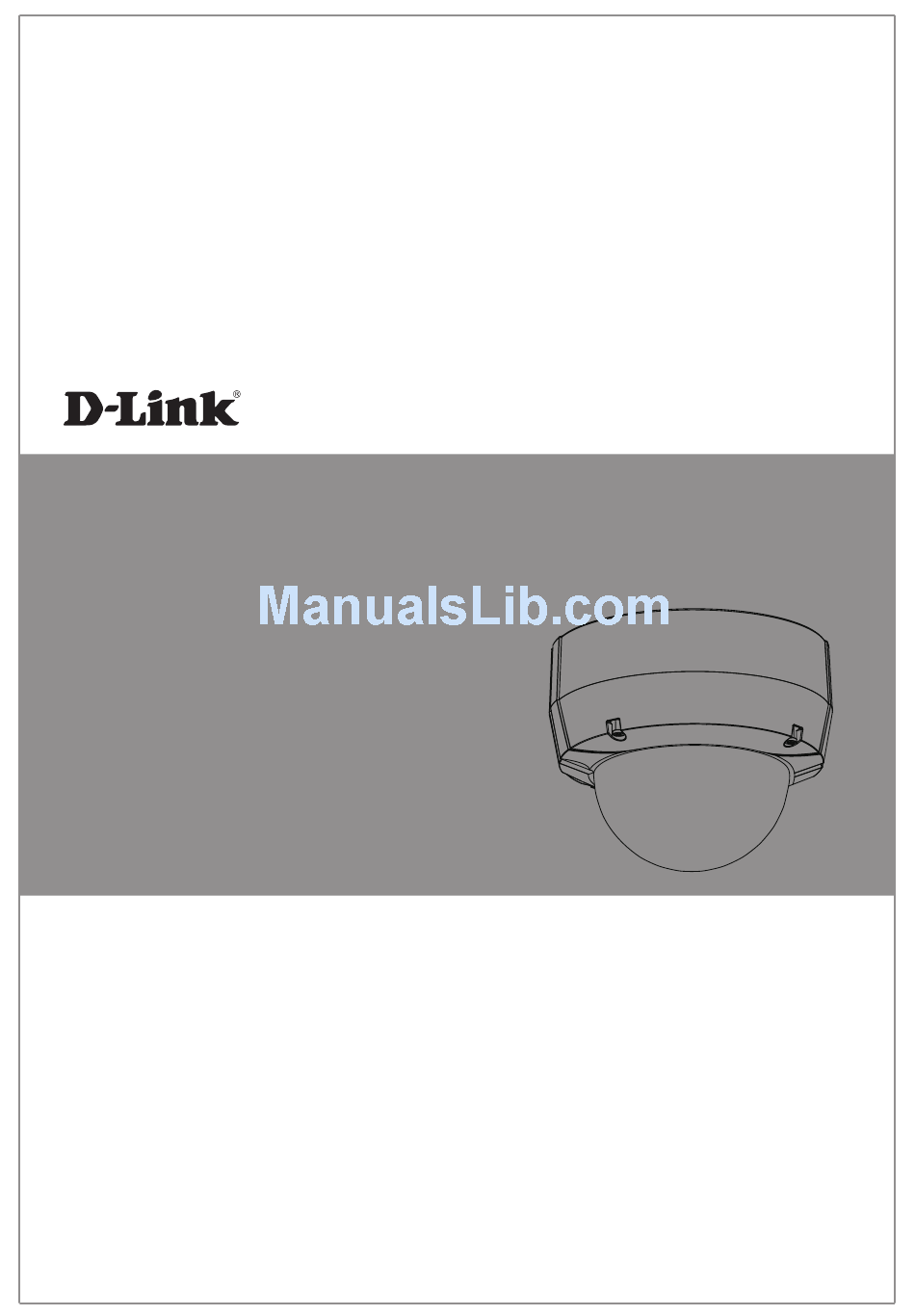

Page 1: Quick Installation Guide
Quick Installation Guide HD Day & Night Vandal-Proof Fixed Dome Network Camera This document will guide you through the basic installation process for your new D-Link Network Camera. DCS-6511... -
Page 2: Installation Steps
DCS-6511 Quick Install Guide This installation guide provides basic instructions for installing the DCS-6511 Network Camera on your network. For additional information about how to use the camera, please see the User’s Manual which is available on the CD included in this package or from the D-Link support website. -
Page 3: Hardware Overview
Install the SD Card Push the SD card into the camera with the gold contacts oriented towards the base of the camera. To eject the SD card, push the SD card into the slot. D-Link DCS-6511 Quick Install Guide... -
Page 4: Standard Mounting Instructions
Style 1 - Concealed Cable Installation ƒ Height: 23 mm (0.9 inches) ƒ Diameter: 183 mm (7.2 inches) ƒ Weight: 400 g (0.9 lbs) Figure 2.1 Figure 2.2 D-Link DCS-6511 Quick Install Guide... - Page 5 Hardware Installation Style 2 - Exposed Cable Installation ƒ Height: 23 mm (0.9 inches) ƒ Diameter: 183 mm (7.2 inches) ƒ Weight: 400 g (0.9 lbs) Figure 2.3 Figure 2.4 Figure 2.5 Figure 2.6 D-Link DCS-6511 Quick Install Guide...
-
Page 6: Pendant Mount (Dcs-34-2)
Pendant Mount (DCS-34-2) ƒ Height: 201 mm (7.9 inches) ƒ Diameter: 150 mm (5.9 inches) ƒ Weight: 665 g (1.45 lbs) Rubber Seal Bracket Pendant Bracket Mounting Plate Figure 3.1 Figure 3.2 Figure 3.4 Figure 3.3 D-Link DCS-6511 Quick Install Guide... -
Page 7: Bent Mount (Dcs-34-3)
ƒ Height: 253 mm (9.96 inches) ƒ Diameter: 150 mm (5.9 inches) ƒ Weight: 770 g (1.7 lbs) Bracket Bent Bracket Mounting Plate Figure 4.2 Figure 4.1 Bracket Cap Bent Bracket Dome Camera Figure 4.4 Figure 4.3 D-Link DCS-6511 Quick Install Guide... - Page 8 Connection with a PoE Hub If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable, which will provide the transmission of both power and data over a single cable. D-Link DCS-6511 Quick Install Guide...
-
Page 9: Configuration With Wizard
Configuration Configuration with Wizard Insert the DCS-6511 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your CD-ROM... - Page 10 Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If you have a DHCP server on your network, a valid IP Address will be displayed.
- Page 11 Click Next, to proceed to the next page. Take a moment to confirm your settings and click Restart. Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE D-Link DCS-6511 Quick Install Guide...
-
Page 12: Viewing Camera Via Web Browser
This section shows your camera’s live video. You can select your video profile and view or operate the camera. For additional information about web configuration, please refer to the user manual included on the CD-ROM or the D-Link website. D-Link DCS-6511 Quick Install Guide... - Page 13 Turn the lens to adjust the IP camera’s image until the desired orientation is achieved, tighten the image adjustment screw once completed. D-Link DCS-6511 Quick Install Guide...
- Page 14 Notes D-Link DCS-6511 Quick Install Guide...
- Page 15 Notes D-Link DCS-6511 Quick Install Guide...
-
Page 16: Technical Support
Copyright ©2010 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual data throughput rate.
