Related Manuals for Frymaster Gas Rethermalizers FBKR18 Series
Summary of Contents for Frymaster Gas Rethermalizers FBKR18 Series

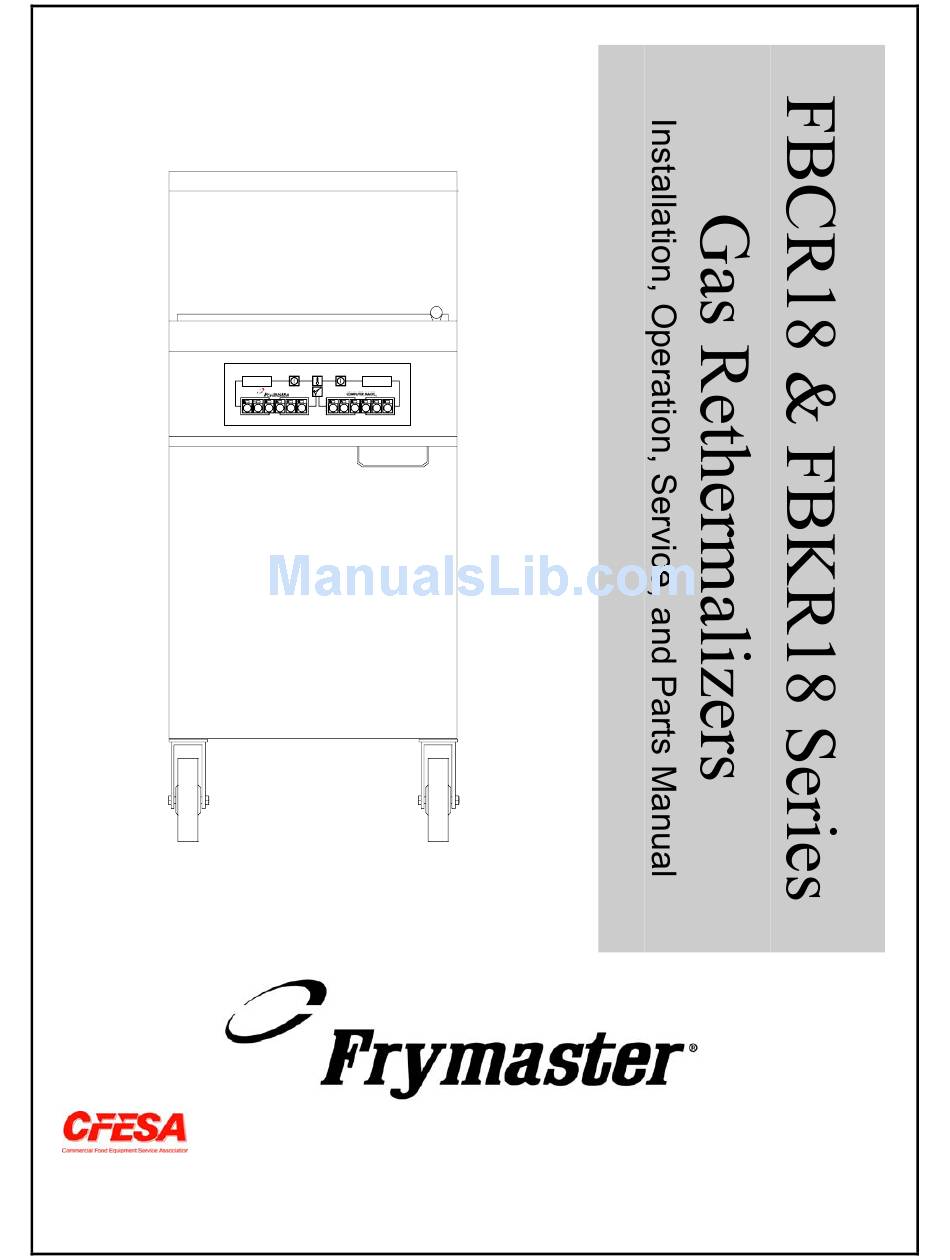

- Page 1 Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. 819-5686 24-Hour Service Hotline 1-800-551-8633 March 2005...
- Page 2 DIRECTLY FROM FRYMASTER/DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER/DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
-
Page 4: Table Of Contents
FBCR18 & FBKR18 SERIES GAS RETHERMALIZERS CHAPTER 1: General Information Parts Ordering and Service Information ...1-1 Safety Information ...1-1 Equipment Description ...1-2 Installation, Operating, and Service Personnel ...1-2 Definitions...1-2 Shipping Damage Claim Procedure...1-3 CHAPTER 2: Installation Instructions General Installation Requirements...2-1 Caster/Leg Installation ...2-2 Pre-Connection Preparations ...2-2 Connecting to the Gas Supply...2-4... - Page 5 CHAPTER 5: Operator Troubleshooting Introduction ... 5-1 Operator Troubleshooting Guides ... 5-2 Replacing the Computer or Computer Wiring Harness ... 5-6 CHAPTER 6: Service Procedures Functional Description ... 6-1 The Electronic Ignition System... 6-1 Computers ... 6-2 Interface Board ... 6-2 Temperature Probe ...
-
Page 6: Chapter 1: General Information
Section 1.6. Parts Ordering and Service Information In order to assist you as quickly as possible, the Frymaster Factory Authorized Service Center (FASC) or Service Department representative requires certain information about your equipment. Most of this information is printed on a data plate affixed to the inside of the door. -
Page 7: Safety Information
(457mm x 609mm) and holds 25 gallons (94.6 liters) of water. Installation, Operating, and Service Personnel Operating information for Frymaster equipment has been prepared for use by qualified and/or au- thorized personnel only, as defined in Section 1.5. All installation and service on Frymaster equipment must be performed by qualified, certified, licensed, and or/authorized installation or service personnel, as defined in Section 1.6. -
Page 8: Definitions
Frymaster equipment parts. A list of Frymaster Factory Authorized Service Centers (FASC) was included with the unit when it was shipped from the factory. Failure to use qualified service personnel will void the Frymaster Warranty on your equipment. -
Page 9: Chapter 2: Installation Instructions
Failure to use qualified, licensed, and/or authorized installation or service personnel (as defined in Section 1.6 of this manual) to install, convert to another gas type or otherwise service this equipment will void the Frymaster warranty and may result in damage to the equipment or injury to personnel. -
Page 10: National Code Requirements
One of the most important considerations of efficient operation is ventilation. Make sure the equip- ment is installed so that products of combustion are removed efficiently, and that the kitchen ventila- tion system does not produce drafts that interfere with proper burner operation. The equipment flue opening must not be placed close to the intake of the exhaust fan, and the flue must never be extended in a “chimney”... -
Page 11: Fcc Compliance
Frymaster computers have been tested and found to comply with the limits for a Class A digi- tal device, pursuant to Part 15 of the FCC rules. While these devices are verified as Class A devices, they have been shown to meet the Class B limits. - Page 12 2. The rethermalizer must be stabilized by installing restraining chains on units equipped with casters or anchor straps on units equipped with legs. Follow the instructions shipped with the casters/legs to properly install the chains or straps. 3. Level rethermalizers equipped with legs by screwing out the legs approximately 1 inch then adjusting them so that the rethermalizer is level.
-
Page 13: Connecting To The Gas Supply
Connecting to the Gas Supply Before connecting new pipe to this appliance, the pipe must be blown out thor- oughly to remove all foreign material. Foreign material in the burner and gas con- trols will cause improper and dangerous operation. When pressure-testing incoming gas supply lines, disconnect the appliance from the gas line if the test pressure will be ½... -
Page 14: Converting To Another Gas Type
2. Open the gas supply to the fryer and check all piping, fittings, and gas connections for leaks. A soap and water solution should be used for this purpose. 3. Close the drain valve and fill the cookpot with water and boil-out solution to the overflow. Light the burners and perform the boil-out procedures that are described in the “Start-Up Procedure”... -
Page 15: Chapter 3: Operating Instructions
FBCR18 & FBKR18 SERIES GAS RETHERMALIZERS CHAPTER 3: OPERATING INSTRUCTIONS Introduction The on-site supervisor is responsible for ensuring that operators are made aware of the inherent hazards of operating a gas-fired heated water system, particularly the aspects of draining and cleaning procedures. Mechanically, the FBCR18 and FBKR18 rethermalizers are virtually identical. -
Page 16: Programming The Fbcr18 Series Computer
FBCR18 S ROGRAMMING THE ERIES 1. Turn the computer on by pressing the Power 2. Press the Program Mode product buttons 1, 6, 5, and 10. (Press switch again to exit the programming mode.) NOTE 1: The programming mode is not available while the computer is rethermalizing; the display will flash BUSY. -
Page 17: Fbcr18 Temperature Display Options
HELP – Indicates a heating problem. Call your local Frymaster Factory Authorized Service Center or the 24-Hour Hotline (1-800-551-8633). Prob - Indicates a problem in the temperature control circuits. Call your local Frymaster Factory Authorized Service Center or the 24-Hour Hotline (1-800-551-8633). -
Page 18: Fbkr18 Series Computer
Pressing the Boil Mode (L) switch overrides the programmed setpoint and the cookpot temperature rises to boiling at 212°F (100°C). When the unit is in boil mode, boiL appears in both LED displays. The unit remains in boil mode until the Simmer Mode switch is pressed or the unit is turned off. - Page 19 NOTE 1: Programming mode is not available while the computer is rethermalizing; the display will flash BUSY. NOTE 2: To toggle between Fahrenheit and Celsius temperature display, press the Program Mode switch, then enter the code 1 6 5 8 by pressing the corresponding product buttons. Next, press the Temperature Check/Program Lock 3.
-
Page 20: Operating The Fbkr18 Series Rethermalizer
Remember: Stir time 2 must be greater than stir time 1 (or else be “0”). Stir time 3 must be greater than stir time 2 (or else be “0”). None of the stir times should be greater than the rethermalizing time entered in Step 6. If a stir time exceeds the rethermalizing time, the stir alarm will not sound. -
Page 21: Fbkr18 Computer Display Messages
(four dashes) – Indicates that the water temperature is within the proper rethermalizing range (i.e., within ±3°F of setpoint). HELP – Indicates a heating problem. Call your local Frymaster Factory Authorized Service Center or the 24-Hour Hotline (1-800-551-8633). Prob – Indicates a problem in the temperature control circuits. Call your local Factory Authorized Service Center or the 24-Hour Hotline (1-800-551-8633). -
Page 22: Start-Up Procedure
Start-Up Procedure (Applies to both the FBCR18 and FBKR18) Never operate this appliance with an empty cookpot. The cookpot must be filled with water before lighting the burners. If this is the first time the unit is being used after installation, refer to Section 3.5, Boiling-Out the Cookpot. -
Page 23: Shutting The Rethermalizer Down
Boiling-Out the Cookpot Never leave the appliance unattended during the boil-out process. If the boil-out so- lution boils over, turn the appliance off immediately and let the solution cool for a few minutes before resuming the process. To lessen the chance of boil over, turn the appliance’s gas valve knob to the PILOT position occasionally. -
Page 24: Chapter 4: Preventive Maintenance
FBCR18 & FBKR18 SERIES GAS RETHERMALIZERS CHAPTER 4: PREVENTIVE MAINTENANCE Daily Checks and Services Inspect Rethermalizer and Accessories for Damage Look for loose or frayed wires and cords, leaks, foreign material in cookpot or inside cabinet, and any other indications that the rethermalizer and accessories are not ready and safe for operation. Clean Cabinet Inside and Out Clean inside the cabinet with a dry, clean cloth. -
Page 25: Quarterly Checks And Services
Quarterly Checks and Services Check Computer Magic III Set Point Accuracy 1. Fill the cookpot with water. Press the computer power switch, and then press any of the product buttons. Insert a good-grade thermometer or pyrometer probe into the cookpot, with the end touching the temperature probe at the lower right front of the cookpot. -
Page 26: Clean Gas Valve Vent Tube
open or close the air intake opening until a bright orange-red glow is obtained. Carefully hold the plate in position and retighten the nut(s). Clean Gas Valve Vent Tube 1. Set the rethermalizer power switch and the gas valve to the OFF position. 2. - Page 27 3. Place the gas valve in the ON position. Place the computer power switch in the ON position. When the burner lights and continues to burn, compare the indicated pressure to the table below. 4. If necessary, adjust the burner gas pressure by removing the cap from the gas valve regulator and turning the regulator screw to obtain the correct pressure.
-
Page 28: Chapter 5: Operator Troubleshooting
If you have doubts as to the proper action to take, do not hesitate to call the Frymaster Technical Service Department or your local Frymaster Factory Authorized Service Center for assistance. - Page 29 Troubleshooting Guides Computer is not functioning. Probable causes are failed 12V transformer, failed interface board, or failed computer. Probable causes are a failed interface board or a failed high-level water sensor. Problem resolved. COOKPOT DID NOT FILL WHEN UNIT WAS TURNED ON.
- Page 30 WATER NOT HEATING. AUTOFILL WORKED PROPERLY. Press the Temperature Check button twice to display setpoint. Is the displayed setpoint correct? Did burners light? Did water reach setpoint temperature? Problem resolved. Enter correct setpoint in accordance with instructions in Chapter 3. Refer to troubleshooting guide "BURNERS DO NOT LIGHT".
- Page 31 BURNERS DO NOT LIGHT. Verify that correct setpoint has been programmed, that main gas supply valve is open, and that equipment gas valve is set to ON. Press ON/OFF button. Did burners light? Use bottle brush to clean low water sensor. If burners still do not light, remove the cover over the water sensors and thoroughly clean them with a scouring pad.
- Page 32 CM III WILL NOT GO INTO PROGRAMMING MODE OR CHANGES TO PROGRAM. disconnect unit from electrical power, open control panel by removing screws in upper corners, and unplug wiring harness from interface board. Wait two minutes. Reconnect computer wiring harness, close control panel, reconnect unit to electrical power, and press Power Switch ON.
-
Page 33: Replacing The Computer Or Computer Wiring Harness
Replacing the Computer or Computer Wiring Harness 1. Disconnect the rethermalizer from the electrical supply. 2. Remove the two screws in the upper corners of the control panel and swing the panel open from the top, allowing it to rest on its hinge tabs. 3. -
Page 34: Chapter 6: Service Procedures
FBCR18 & FBKR18 SERIES GAS RETHERMALIZERS CHAPTER 6: SERVICE PROCEDURES Functional Description These rethermalizers contain a welded stainless steel cookpot that is directly heated by a high efficiency burner system requiring approximately 43% less energy than conventional burner systems to heat the same volume of water. Two self-contained combustion chambers (referred to as “burners”) are located beneath the cookpot. -
Page 35: Computers
COMPUTERS These rethermalizers are equipped with Computer Magic III computers that have been modified for this specialized application. computers, the standard CM III computers will not operate the unit correctly. Only part number 806-8063 may be used in FBCR18 units and only part number 806-9352 may be used in FBKR18 units. -
Page 36: Temperature Probe
solenoid valve when the water level reaches the upper water level sensor and to de-energize the solenoid when the water level drops below the upper water level sensor. The board has four LEDs to assist in troubleshooting. Three of the LEDs (LATCH, WATER, and HEAT) are located just to the right of the heat relay (K4). -
Page 37: Cleaning The Gas Valve Vent Tube
3. Relocate the rethermalizer for service accessibility. 4. After servicing is complete, reconnect the unit to the gas supply, reattach restraining devices, and plug in the electrical power cord. Cleaning the Gas Valve Vent Tube Refer to Semi-Annual Checks and Services in Chapter 4, Preventive Maintenance. Checking the Burner Manifold Gas Pressure Refer to Semi-Annual Checks and Services in Chapter 4, Preventive Maintenance. -
Page 38: Replacing The Temperature Probe
6.6.2 Replacing the Temperature Probe 1. Unplug the rethermalizer. 2. Drain the cookpot. 3. Remove the screws from the upper corners of the control panel and swing the panel open from the top, allowing it to rest on its hinge tabs. 4. -
Page 39: Replacing An Ignition Module
10. Reattach the 15-pin connector to the interface board. 11. Close and secure the control panel. 6.6.4 Replacing an Ignition Module 1. Unplug the rethermalizer. 2. Remove the screws from the upper corners of the control panel and swing the panel open from the top, allowing it to rest on its hinge tabs. -
Page 40: Replacing A Burner Assembly
2. Disconnect the unit from the gas supply line and remove any fitting that may be attached to the gas manifold at the rear of the unit. 3. Disconnect the flexible gas lines at each burner orifice. 4. Disconnect the gas enrichment tubes at the gas valve tee fitting. 5. -
Page 41: Replacing The Cookpot
7. Reverse steps 1-6 to install replacement burner assembly, being careful to get the insulation strip running along the top of the blower support bracket back in place. 6.6.9 Replacing the Cookpot 1. Remove the cookpot insert. 2. Remove the top cap by removing the two screws on the front and the screw on each end. 3. -
Page 42: Ignition Failures
Problems that are likely to be encountered can be grouped into five broad categories: 1. Ignition failures 2. Improper burner functioning 3. Improper temperature control 4. Computer-related problems 5. Autofill System problems. The probable causes of each category are discussed in the following sections. Troubleshooting Guides (decision trees) is also included at the end of the chapter to assist in identifying some of the more common problems. -
Page 43: Improper Burner Functioning
during operation. The probable cause in this case is an intermittent failure of an ignition module. When the unit is opened up for troubleshooting, the module cools down enough to operate correctly, but when the unit is again closed up and placed back into service, the module heats up and fails. PROBLEMS RELATED TO THE GAS VALVE If the problem is not in the 24 VAC circuit, it is most likely in the gas valve itself, but before replacing the gas valve, refer to the troubleshooting guide... - Page 44 If popping is consistent during all hours of operation, the most likely cause is an insufficient air supply. Check for “negative pressure” conditions in the kitchen area. If air is flowing into the kitchen area, this indicates that more air is being exhausted than is being replenished, and the burners may be starved for air.
-
Page 45: Improper Temperature Control
6.7.3 Improper Temperature Control Temperature control is a function of several interrelated components, each of which must operate correctly. The principle component is the temperature probe. Other components include the interface board, the water level sensors, the computer, and the ignition module. Whatever the cause, the symptom is failure of the unit to attain or maintain setpoint temperature. -
Page 46: Troubleshooting The Gas Valve
6.8.1 Troubleshooting the Gas Valve Natural Is incoming gas pressure 6-14" W.C. (1.49-3.49 kPa)? Is burner manifold gas pressure 3.5" W.C. (0.8 kPa)? Is gas valve vent tube obstructed? MAIN GAS SUPPLY VALVE VERIFIED TO BE OPEN AND EQUIPMENT GAS VALVE IN ON POSITION. -
Page 47: Troubleshooting The 24 Vac Circuit
6.8.2 Troubleshooting the 24 VAC Circuit WATER LEVEL IN COOKPOT IS ABOVE LOWER WATER LEVEL SENSOR AND COMPUTER IS ACTIVATED. Is 24VAC present on J2 Pin 7? Is LATCH LED illuminated? Is combustion air blower runing? Is cookpot filling? is a failed interface board Is WATER LED illuminated? Is 24VAC... - Page 48 THE 24VAC CIRCUIT 24V LEG OF DUAL VOLTAGE TRANSFORMER WATER J2 PIN 2 WATER SOLENOID VALVE 6-15 J2 PIN 7 HEAT J2 PIN 4 BLOWER CENTRIFUGAL SWITCH LEFT IGNITION MODULE RIGHT IGNITION MODULE VALVE...
-
Page 49: Troubleshooting The Temperature Probe
6.8.3 Troubleshooting the Temperature Probe DENTED, OR CRACKED. approximately equal to that given in the Probe Resistance Chart for the corresponding WHILE IT IS STILL IN THE COOKPOT, INSPECT THE PROBE BODY FOR DAMAGE. REPLACE IF BENT, Inspect leads for fraying, burning, breaks, and/or kinks. -
Page 50: Probe Resistance Chart
Probe Resistance Chart OHMS OHMS 1000 1107 1002 1110 1004 1112 1006 1114 1008 1116 1011 1118 1013 1120 1015 1122 1017 1124 1019 1126 1021 1128 1023 1131 1025 1133 1030 1135 1032 1137 1034 1139 1036 1141 1038 1143 1040 1145... -
Page 51: Simplified Wiring Diagrams
Simplified Wiring Diagrams 6-18... -
Page 52: Interface Board
200-240V GREEN BLUE BROWN 120 V BLK 22C WHT 23C LINE SWITCH BLOWER DUAL SPARK IGNITION MODULE IGNITOR CABLE RIGHT IGNITOR CABLE LEFT HIGH TEMP WIRE LEFT LEFT IGNITOR NOTE: SENSE 1 & SPARK 1 MUST CONNECT TO THE SAME IGNITOR. SENSE 2 &... - Page 53 6-20...
-
Page 54: Chapter 7: Parts List
FBCR18 & FBKR18 SERIES GAS RETHERMALIZERS CHAPTER 7: PARTS LIST Burner System Components ITEM PART # Burner Assemblies 806-5563 Natural Gas, Complete 806-5564SP Propane Gas, Complete 810-1382 Burner, Reverse Plenum, Universal Orifice 810-0916 810-0917 Ignitor and Insulation Kit 826-1714 Natural Gas 826-1715 Propane Gas 807-1564... -
Page 55: Cabinetry And Associated Components
Cabinetry and Associated Components ITEM PART # 806-8060 Cover Assembly w/Handle 810-1374 Handle, Cover 910-5246 Bracket, Cover 910-5303 Bracket, Cover Support 823-2881 Flue Cap 900-5737 Back, Cabinet 900-7377 Side, Cabinet, CRS (for S/S units, use 910-7377) 900-5293 Flue Extension, Cabinet Back 816-0158 Insulation, Upper Cabinet Back 900-4521... -
Page 56: Computer, Component Box Assembly, And Associated Parts
Computer, Component Box Assembly, and Associated Parts INTERFACE BOARD MOUNTS ON THESE STUDS ITEM PART # 106-0769 Computer, CM III (for use on FBCR18 Series rethermalizer only) 806-9352 Computer, CM III (for use on FBKR18 Series rethermalizer only) 806-9295 Interface Board 807-0154 Cordset, 120VAC 809-0349... -
Page 57: Cookpot And Associated Parts
Cookpot and Associated Parts ITEM PART # Cookpot Assembly (includes flue, insulation, burners and blower) 106-2792 Natural Gas (for bare cookpot only, order 823-4088SP) 106-2793 LP (Propane) Gas (for bare cookpot only, order 823-4088SP) 900-5282 Cover, Front Insulation 816-0270 Insulation, Cookpot Front 816-0144 Insulation, Cookpot Side 900-1762... -
Page 58: Gas Supply Components
Gas Supply Components ITEM PART # Gas Valve 810-0786 Natural Gas 810-0787 LP (Propane) Gas 813-0378 Fitting, Cross, ⅛” NPT, Brass 813-0154 Plug, Pipe, ⅛” Hex Head 813-0354 Elbow, ⅛” NPT x 90° x ⅛” Tube, Brass 813-0016 Nipple, ⅛” x ¾” NPT, BM 813-0004 Elbow, ⅛”... -
Page 59: Plumbing Components
Plumbing Components ITEM PART # 810-1208 Valve, Water Pressure Regulator 810-1351 Vacuum Breaker 813-0448 Elbow, ¼”, Brass 813-0473 Nipple, ¼” x 4.0”, Brass 813-0471 Nipple, ¼” x 1.5”, Brass 900-2916 Bracket, Water Pressure Regulator Valve 810-1025 Compression Fitting, ¼”, Straight 900-5210 Bracket, Vacuum Breaker 806-5565... -
Page 60: Service Hotline
Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 FAX (Tech Support) 1-318-219-7135 Price: $10.00 SERVICE HOTLINE 819-5686 PRINTED IN THE UNITED STATES 1-800-551-8633 March 2005...
