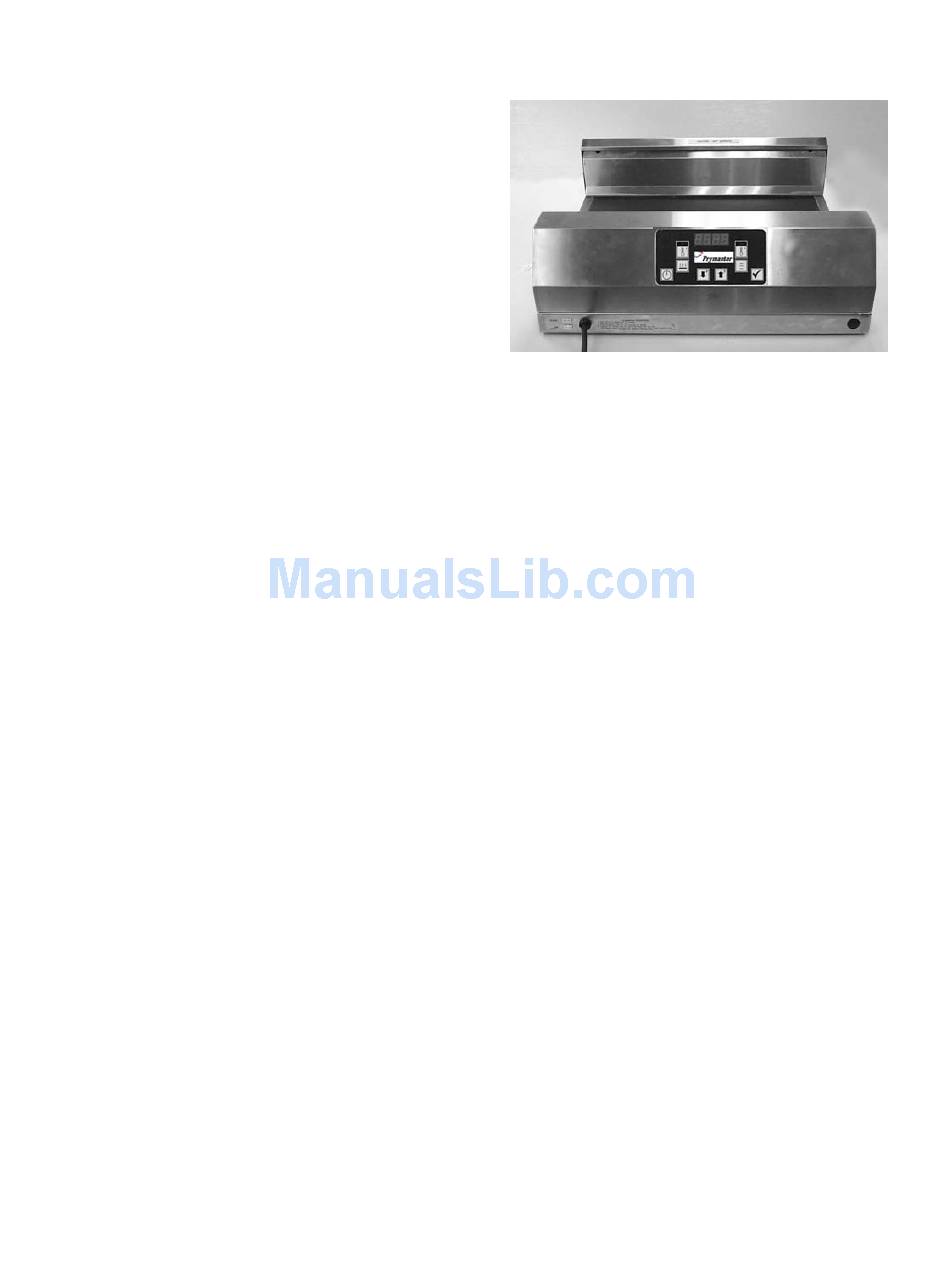

This equipment chapter is to be
inserted in the Equipment Manual.
MANUFACTURED BY FRYMASTER, L.L.C.
P.O. BOX 51000
SHREVEPORT, LOUISIANA 71135-1000
PHONE 1(318)865-1711
1 (800) 24 FRYER
1. WARRANTY INFORMATION............................................................................................ 1
1.1 Warranty Provisions - Heated Landing Zone ............................................................. 1
1.2 Parts Return............................................................................................................... 1
1.3 Warranty Exclusions .................................................................................................. 1
2. PARTS ORDERING AND SERVICE INFORMATION....................................................... 2
2.1 Ordering Parts ........................................................................................................... 2
2.2 Service Information .................................................................................................... 2
3. INSTALLATION AND OPERATION.................................................................................. 3
3.1 HLZ Installation/Setup................................................................................................ 3
3.2 HLZ Operation ........................................................................................................... 3
4. HLZ MODEL/COMPONENT IDENTIFICATION ................................................................ 4
5. COMPUTER OPERATION AND PROGRAMMING .......................................................... 5
5.1 Programming Temperature........................................................................................ 5
5.2 Computer Operation .................................................................................................. 6
5.2 Fahrenheit to Celsius Display Change....................................................................... 7
6. OPERATOR TROUBLESHOOTING ................................................................................. 8
PRINTED IN THE UNITED STATES
www.frymaster.com
OPERATOR'S MANUAL
HEATED LANDING ZONE (HLZ)

TABLE OF CONTENTS

Frymaster L.L.C., 8700 Line Avenue 71106
P.O. Box 51000, Shreveport, Louisiana 71135-1000
PHONE 318-865-1711
SERVICE HOTLINE
1-800-24-FRYER
email: service @frymaster.com
FAX 318-219-7135
*8195636*
APRIL 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heated Landing Zone HLZ and is the answer not in the manual?

Questions and answers

Related Manuals for Frymaster Heated Landing Zone HLZ

Summary of Contents for Frymaster Heated Landing Zone HLZ

  • Page 1: Table Of Contents

    6. OPERATOR TROUBLESHOOTING ... 8 PRINTED IN THE UNITED STATES www.frymaster.com OPERATOR’S MANUAL HEATED LANDING ZONE (HLZ) TABLE OF CONTENTS Frymaster L.L.C., 8700 Line Avenue 71106 P.O. Box 51000, Shreveport, Louisiana 71135-1000 PHONE 318-865-1711 FAX 318-219-7135 SERVICE HOTLINE 1-800-24-FRYER email: service @frymaster.com...
  • Page 2 THIS OPERATOR’S MANUAL SUPERCEDES ALL PREVIOUS EDITIONS OF THE HLZ OPERATOR’S MANUAL. FOR YOUR SAFETY, DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND NEAR THIS OR ANY OTHER APPLIANCE. Safe and satisfactory operation of your equipment depends on its proper Installation must conform to local codes or, in the absence of local codes, with the latest edition of your national electrical code, i.e.

  • Page 3: Chapter 1: Warranty Information

    B. All parts, with the exception of fuses, are warranted for 1 year after installation date of cabinet. C. If any parts, except fuses, become defective during the first year after installation date, Frymaster will also pay straight-time labor costs to replace the part, plus up to 100 miles/160 km of travel (50 miles/80 km each way).

  • Page 4: Parts Ordering And Service Information

    Parts orders may be placed directly with your local Frymaster Factory Authorized Service Center (FASC)/distributor. A list of Frymaster FASCs/distributors was included with the unit when shipped. If you do not have access to this list, please contact the Frymaster Service Department at 1-800-24-FRYER or 1-318-865- 1711.

  • Page 5: Chapter 3: Installation And Operation

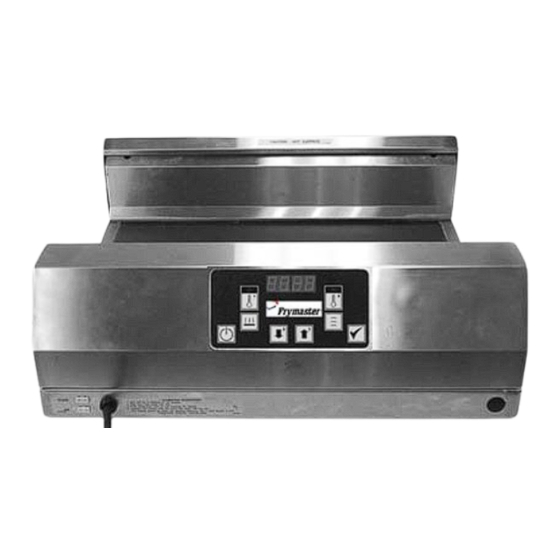

    CHAPTER 3: INSTALLATION AND OPERATION The Heated Landing Zone or HLZ is designed to hold assembled sandwiches. By circulating heated air evenly across the open staging area, the Heated Landing Zone keeps sandwiches hot without drying or cooking. The Heated Landing Zone meets all McDonald’s standards for safety, efficiency, food safety, and cleanliness.

  • Page 6: Chapter 4: Hlz Model/Component Identification

    HEATED LANDING ZONE CHAPTER 4: HLZ MODEL/COMPONENT IDENTIFICATION Heated air flows from the air heater/blower and heat rises from the heater plate. Heater Plate Calibration Socket Air Heater Calibration Socket Power Cord Blower Assembly HLZ Computer A look at the flow of heated air around the HLZ Heater plate Heater Plate...

  • Page 7: Chapter 5: Computer Operation And Programming

    CHAPTER 5: COMPUTER OPERATION AND PROGRAMMING Heater Plate Temperature Switch (1) ON/OFF Switch Down Switch (2) 5.1 Programming Temperatures You are able to program the setpoint temperature of both the air heater and the heater plate via the computer interface. The heater plate factory default is set to the McDonald’s standard of 160°F. The air heater factory default is set to the McDonald’s standard of 220°F.

  • Page 8: Computer Operation

    CHAPTER 5: COMPUTER OPERATION AND PROGRAMMING 5.2 Operation Press the power button, turning the HLZ on (the display will light and cycle through an initialization sequence). The display will read -LO- until the air heater and heater plate are within 15°F of setpoint. It will take approximately 10 minutes for the HLZ to achieve operating temperature.

  • Page 9: Fahrenheit To Celsius Display Change

    CHAPTER 5: COMPUTER OPERATION AND PROGRAMMING 5.3 Switching Between Fahrenheit and Celsius Temperature Scales Follow these steps to switch between Fahrenheit and Celsius temperature displays (refer to diagram, HLZ Computer, on Page 5-1): 1. Unplug unit from power supply. 2. Press and hold either temperature bulb button. 3.

  • Page 10: Chapter 6: Operator Troubleshooting

    HEATED LANDING ZONE CHAPTER 6: OPERATOR TROUBLESHOOTING Symptom No computer display; no flow from air tower No flow from air tower After 20 minutes of operation computer display shows PROB After 20 minutes of operation computer display shows HI After 20 minutes of operation computer display shows LO Possible Cause •...
  • Page 11 Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 (Tech Support) 1-318-219-7135 819-5636 SERVICE HOTLINE APR 2005 PRINTED IN THE UNITED STATES 1-800-551-8633...
