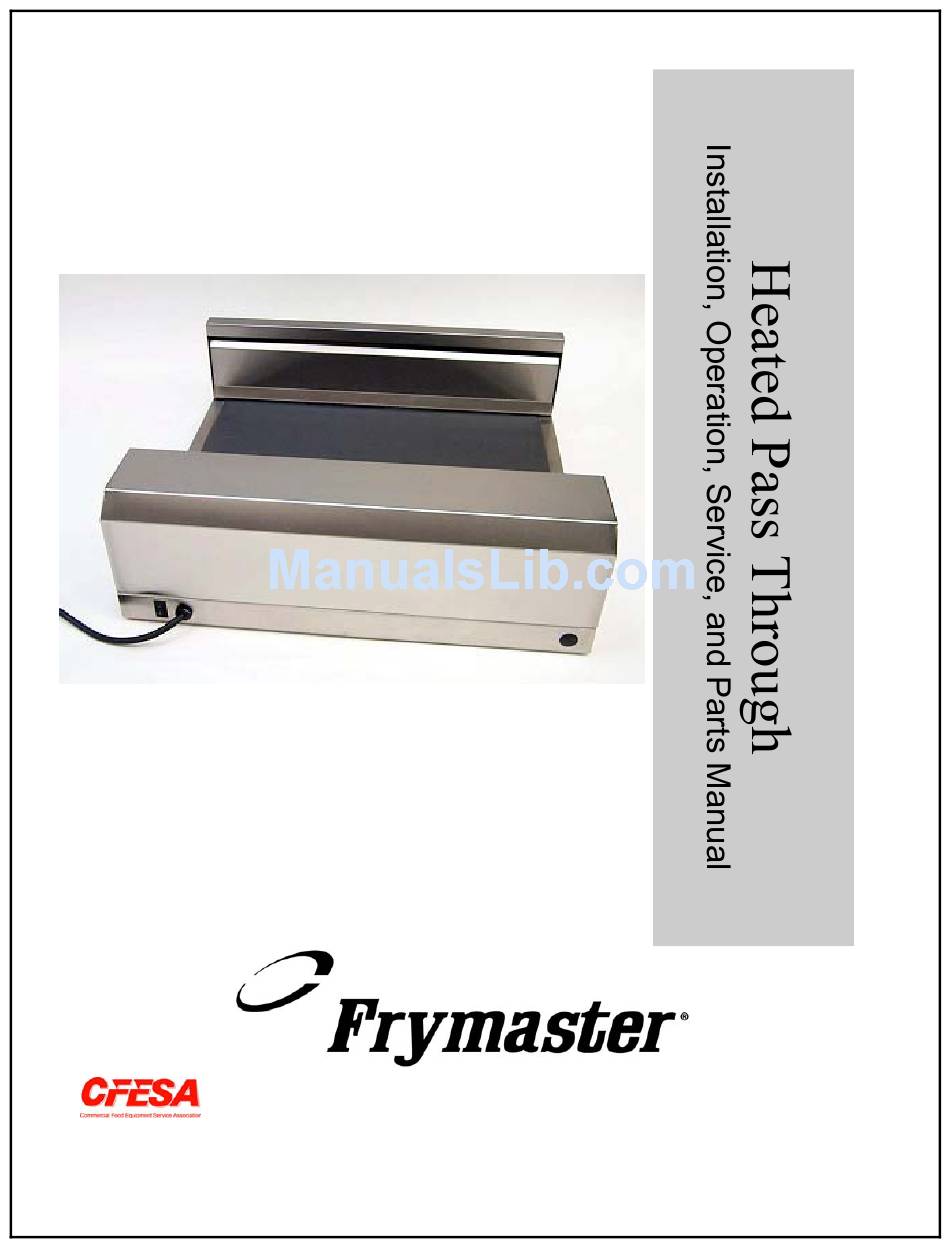

- Page 1 Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. Price: $6.00 *8195931* 24-Hour Service Hotline 819-5931 1-800-551-8633 April 2003...
-
Page 2: Parts Ordering And Service Information
(FASC)/Distributor. A list of Frymaster FASC/ Distributors was included with the unit when shipped from the factory. Your nearest FASC can also be found on Frymaster’s Web site, Frymaster.com. or you can contact the Frymaster Service Department at 1-800-24-FRYER or 1-318- 865-1711. -
Page 3: Operation
INSTALLATION, OPERATION, SERVICE, AND PARTS Power Requirements: Voltage – 208 VAC Frequency - 60 Hz Single Phase 20 amp Service Operation 1. Plug the unit into the power source. * 2. Press the ON/OFF rocker switch to the ON position. 3. -
Page 4: Maintenance
INSTALLATION, OPERATION, SERVICE, AND PARTS Maintenance Daily 1. Remove all product and turn the unit off. 2. Allow the unit to cool. 3. Use a wet sanitized cloth to clean the heated surfaces of the unit. Use a nylon pot brush on hard to remove stains or food items. - Page 5 INSTALLATION, OPERATION, SERVICE, AND PARTS Replacing the Temperature Probe or High Limit Thermostat Disconnect the unit from the electrical power source. Turn the unit on its side. Remove the five screws from the chassis bottom. Set the unit down on its base. Carefully lift the cowl assembly upward until it is clear of the blower assembly, then lay it on the table behind unit.
- Page 6 INSTALLATION, OPERATION, SERVICE, AND PARTS Disconnect the plate ground wire from the push-on terminal on the back wall of the air tower. Using a thin, sharp knife inserted between the plate and the HPT chassis, carefully cut the silicon adhesive between the plate and the sides of the chassis. Pry up one end of the plate, lifting it away from the chassis.
- Page 7 INSTALLATION, OPERATION, SERVICE, AND PARTS Cut the wire ties on the wiring bundle and, one at a time, disconnect the wires from the failed assembly and connect the corresponding wire from the replacement motor. Position the replacement motor over the mounting studs and secure it in place with the ⁄...
- Page 8 HEATED PASS THROUGH INSTALLATION, OPERATION, SERVICE, AND PARTS Wiring Diagram...
- Page 9 INSTALLATION, OPERATION, SERVICE, AND PARTS Common Repair Parts List ITEM PART # 826-1561 Pad, Leg (pkg of 4) 823-3922 Divider Assembly 810-1724 Screen, HPT Filter 807-3308 Switch, Black ON/OFF Rocker 807-3533 Relay, 18-Amp Solid State 807-2820 Block, .25 X 1.25 2-pole Fuse 807-2819 Fuse, 3ab-314, 20-Amp 106-2790...
- Page 10 FROM FRYMASTER/DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER/DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
- Page 11 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 12: Service Hotline
Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 FAX (Tech Support) 1-318-219-7135 Price: $6.00 SERVICE HOTLINE 819-5931 PRINTED IN THE UNITED STATES 1-800-551-8633 April 2003...
