5-7 Using Controller Window

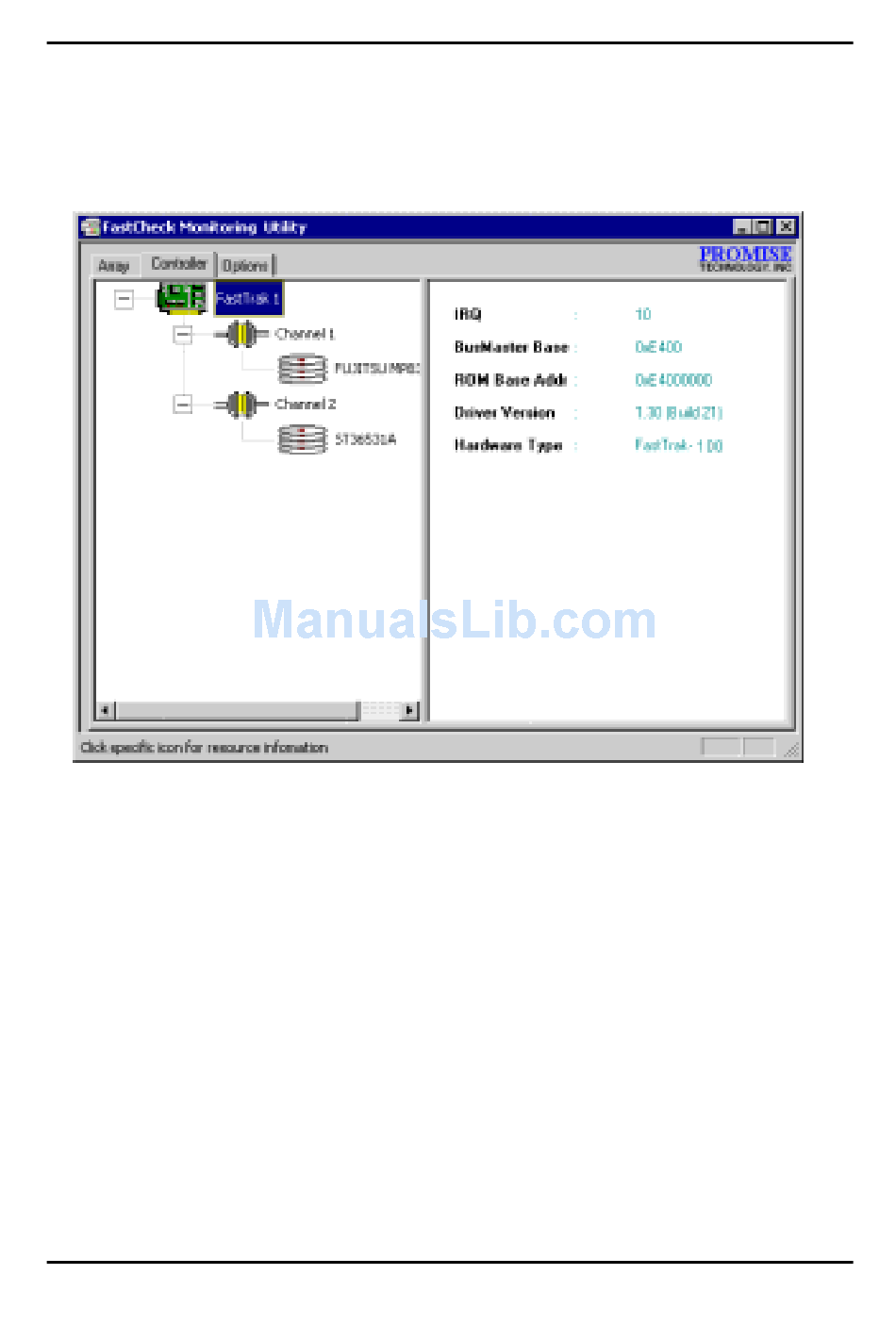

Clicking on the Controller tab, will reveal the Controller Window. This displays
physical information about the location of RAID Function , data channels on the
controller, and the attached drives.
Viewing Controller Information
By left-clicking on the FastTrak controller icon, the right pane shows the following
information categories for that array:
IRQ: Identifies interrupt request assigned to PCI slot
Bus Master Base: Shows base address in hex numbering for board's bus master
ROM Base Address: Shows base address in hex numbering for FastTrak's
Driver Version: Identifies which version of the Promise RAID Function
Hardware Type: Identifies which FastTrak product is installed..
Input/Output function
Flash ROM chip
driver you have installed.
3 9
Using The FastCheck Monitoring Utility
