Adding the IMS/DB Hospital Data Source

Set up Machine Access to Oracle Connect

You begin by configuring access to the Mainframe computer with your IMS/DB data.
You configure this access with Oracle Connect. Open Oracle connect and follow the
directions
information in the Add machine dialog box:
Host name/IP address: Enter the name or IP address for the Mainframe computer
■
whith the Hospital database. This should be installed in the same directory as
Oracle Connect.
Port: Enter the port number where the daemon is running. The default port is
■
2551.
Display name: You do not need to enter any information in this field (By default,
■
the display name will be the host name and the port number).
User name: If the computer you are accessing needs an administrator password. If
■
so enter the name o f the computer's administrator.
Password: If necessary, enter the computer administrator's password.
■
Connect via NAT with fixed IP address: Select this if the machine uses the NAT
■
(Network Address Translation) firewall protocol, with a fixed configuration,
mapping each external IP to one internal IP, regardless of the port specified.

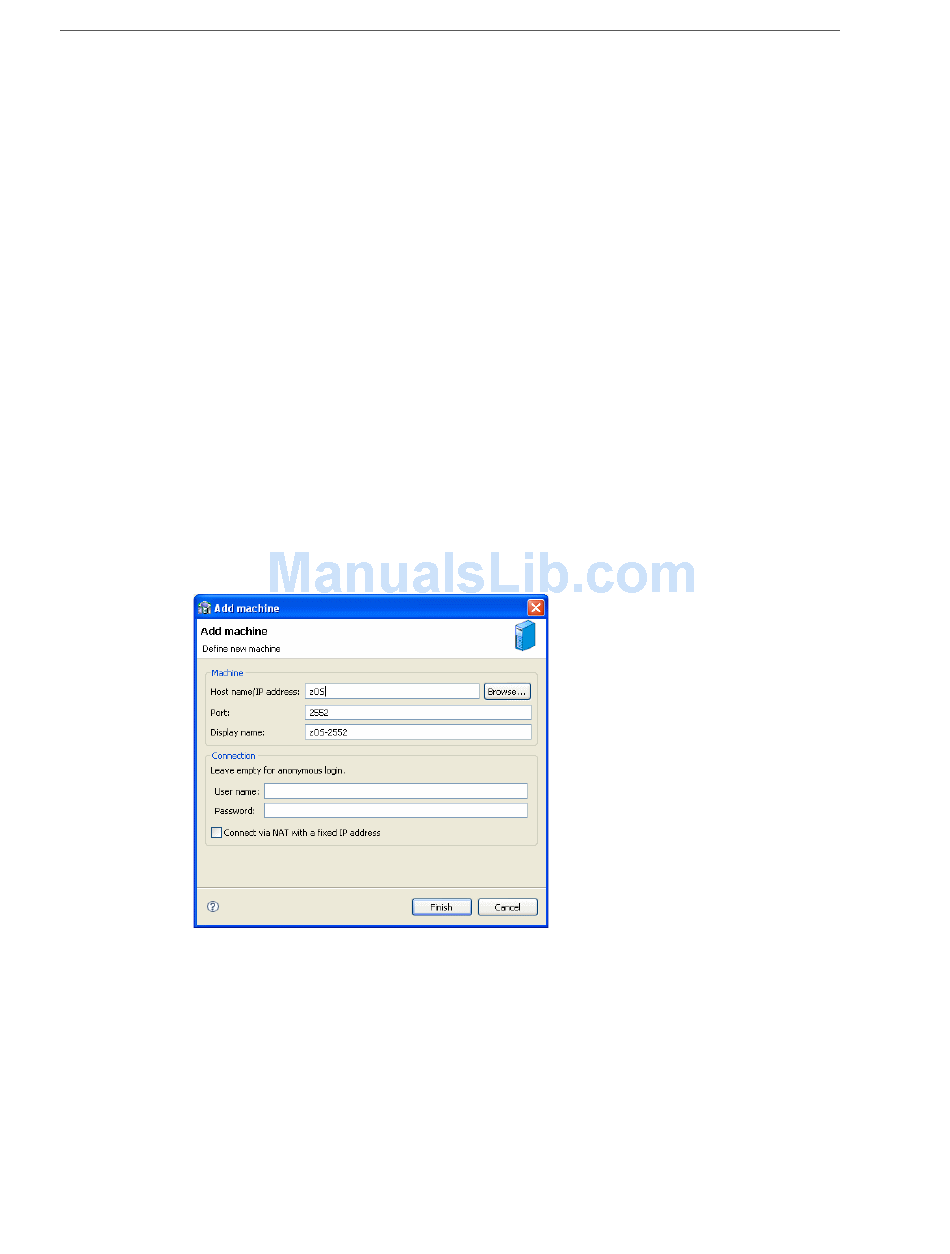

The following figure shows the Add Machine dialog box with the correct information:
Figure 6–1 Add Machine Dialog Box

Add an IMS/DB Data Source

After you add the computer configuration to Oracle Studio, you can add your IMS/DB
data source to the Configuration view. To add an IMS/DB data source, do the
following:
Expand the computer you just added and then expand the NAV binding.
1.
Right-click the Data sources folder and then select New data source.
2.
In the New data source dialog box, type Hospital in the Name field.
3.
6-2 Oracle Application Server Adapters for IMS/DB User's Guide
Setting Up the IBM z/OS Platform in Oracle Studio. Enter the following
