Deploy a BPEL Outbound Process

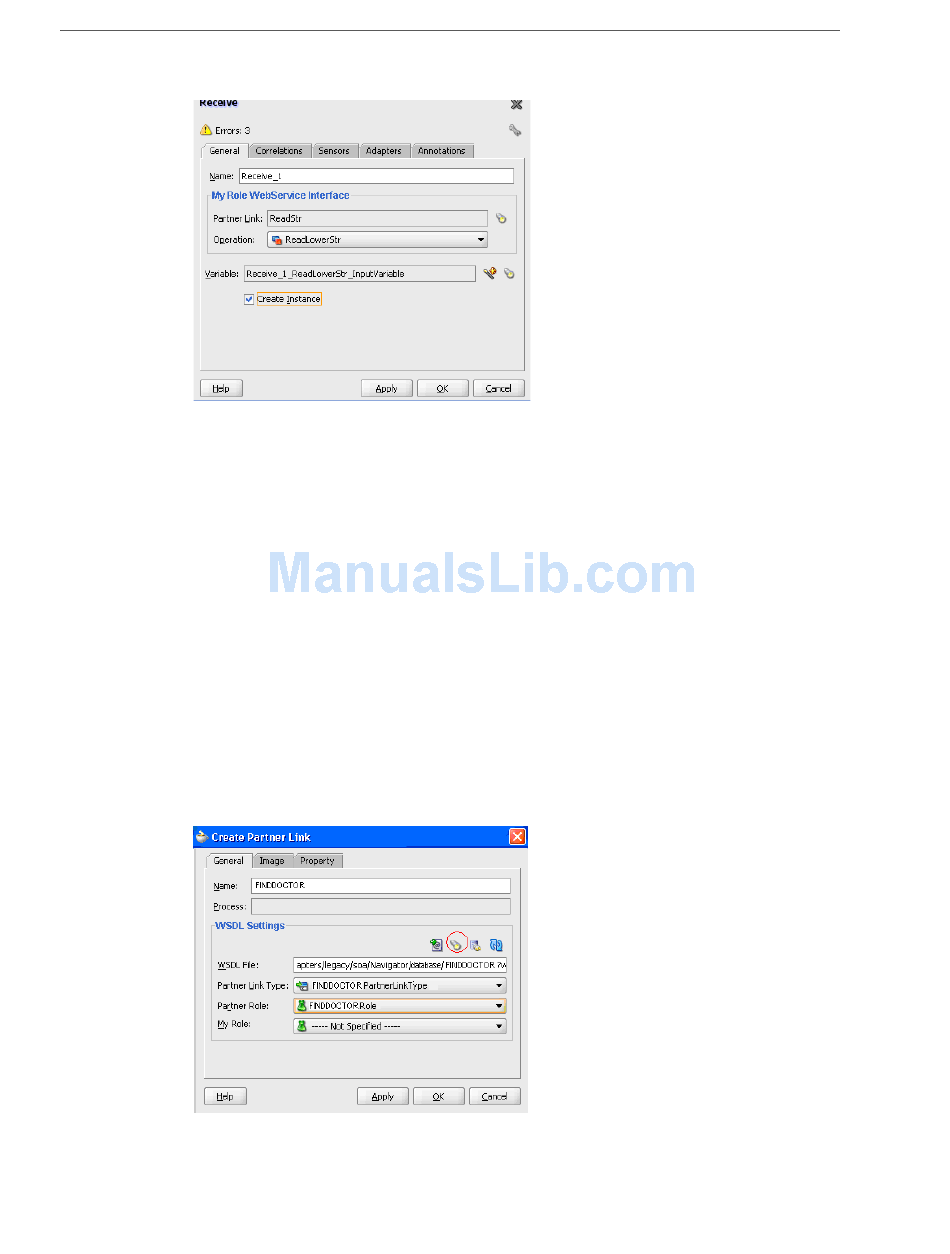

Figure 5–4 Outbound Receive Properties
Do the following in the Edit Receive dialog box:
3.
■
■
■
■

Create a Partner Link to the Database Adapter

In this step, create a partner link to the Database adapter you defined when you
created the IMD/DB configuration in Oracle Studio. Do the following to create a
partner link.
Drag a PartnerLink into a service lane of the visual editor. The Create Partner Link
1.
dialog box is displayed.
Figure 5–5 Partner Link to IMS/DB Outbound
From the Create Partner Link dialog box, click the Service Explorer button. This
2.
button is the second form the left and is shown in the figure in the previous step.
The Service Explorer dialog box is displayed.
5-6 Oracle Application Server Adapters for IMS/DB User's Guide
Enter a name for the Receive activity, in this example it is Receive_1.
Make sure to create the variable. Click the first button to the right of the
Variable field, then click OK in the Create Variable dialog box that is
displayed.
Make sure that the Create Instance check box is selected.
Click OK to close the dialog box and accept the information.
