Configuring Resources Using Network Manager - Oracle Contact Center Anywhere 8.1 Installation Manual

Installing CCA Server Components
To add a resource in Network Manager
1
Open View Hosts by clicking View by Host

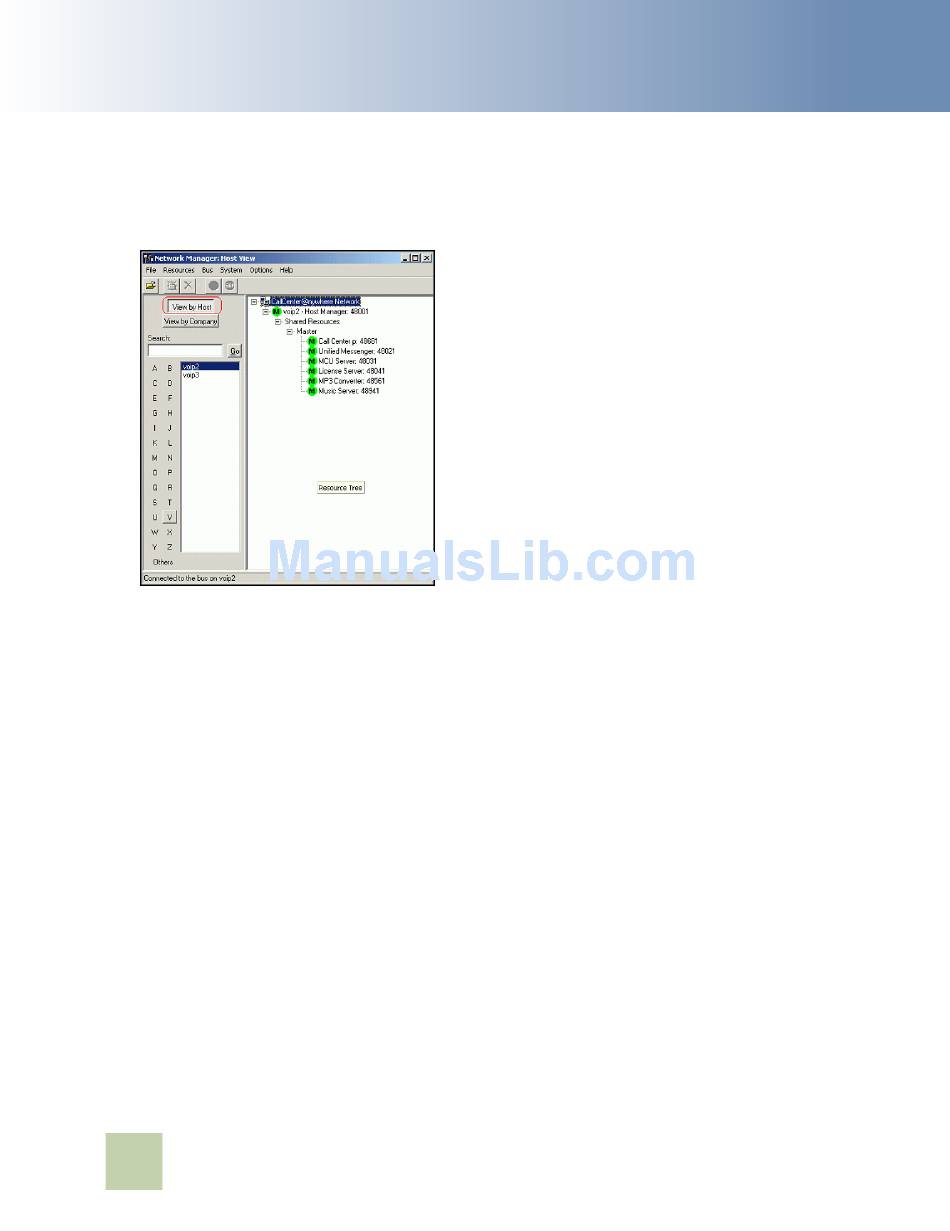

Figure 2. Network Manager - Host view
To add dedicated resource, click View by Company.
2
From Resources menu, choose Add Resource.
3
In the Add New Server dialog box, complete the following fields:
Host: Select the computer on which the resource is to be loaded.
■
Resource ID: Numeric sequential identifier for the resource. This value is automatically
■
assigned when the resource is created.
Port: The IP port the resource uses for TCPIPBus messaging.
■
Resource Type: The type of resource to configure.
■
Dedicated: If this check box is checked, then the resource is assigned to a single company
■
to use. If left unchecked, then the resource is available to all companies.
Resource Mode: This can be set to Master or Backup.
■
Company: Only used if Dedicated is checked.
■
Trace Level: The level of detail written to the logs (where 1 is lowest and 5 is highest).
■
4
Click Save to add another resource.

Configuring Resources Using Network Manager

Some resources require additional configuration after they are added. These resources are:
28 Contact Center Anywhere Installation Guide Version 8.1
Configuring CCA Resources
■
(Figure 2) to add shared resource.
