Power Connections

NOTE: This equipment must be installed near an
AC power outlet due to the power cord being used
as a disconnect device.
•
The VIP-800 is provided with a VP-324 for North
American use.
After all required connections have been made,
plug the VP-324 into appropriate AC wall outlet.
PBX Access
When using the VIP-800 with an electronic key
system C. O. line position or PBX Loop Start Trunk
Port, a VIP-810 must be used to interface the
telephone system with the network.
When using the VIP-800 with a PBX Analog Station
Port, a VIP-820 must be used to
telephone system with the network.
Operation
Press line key (electronic key system) or dial trunk
access code (PBX) to connect to the paging
speakers. Make announcement. The VIP-800
automatically disconnects from page when you hang
up. When initiating page from a VIP-820, an open
loop disconnect signal is required from the PBX
station port.

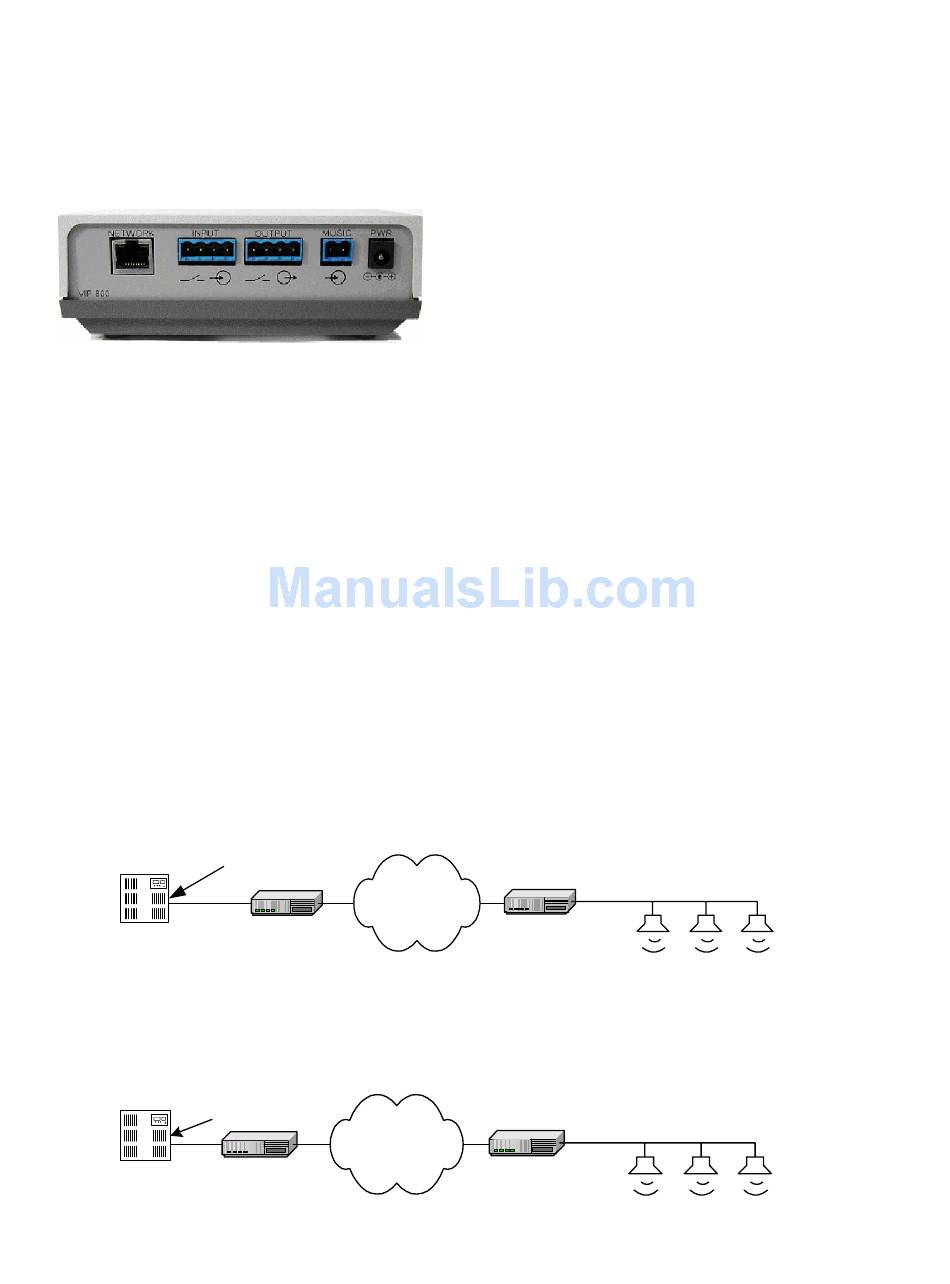

APPLICATION EXAMPLES

When using the VIP-800 with an electronic key system C. O. line position or PBX Loop Start Trunk Port, a VIP-810
must be used to interface the telephone system with the network. When the electronic key system C. O. line position
or PBX Loop Start Trunk Port is accessed, the VIP-810 will activate the VIP-800.
Loop Start Trunk Port
PBX
OR
KEY
SYSTEM
When using the VIP-800 with a PABX station port, a VIP-820 must be used to interface the telephone system with the
network. When the PBX station port is accessed, the VIP-820 will activate the VIP-800. When the VIP-820 sees an
open loop disconnect signal from the PBX Station Port, the VIP-820 will release.
Analog Station Port
PBX
OR
KEY SYSTEM
interface the
Network
VIP-810
LAN
OR
WAN
Network
VIP-820
LAN
OR
WAN
Page Port Access
When accessing the VIP-800 from a telephone
system page port, either VOX or contact closure may
be used to activate the unit.
Operation
Follow the telephone system manufacturer's
instructions for access to external paging. Make the
announcement and hang up. The VIP-800
automatically disconnects from page.
The VIP-800 voice switching circuit is activated when
the person making the page begins to speak. When
the page is completed or the person stops speaking
for more than two seconds, the paging circuit turns
off. Other functions of the unit remain the same.
Background Music
Background music may be connected locally to the
VIP-800 when using either access method.
Background music mutes when a page is made. A
line level background music source must be
connected locally to each unit.
Connect the output of a low level music source to the
screw terminals marked "Music" on the input terminal
strip on the VIP-800. Adjust music volume control on
the music source to the desired level. Do not connect
the BGM input to a 25/70 Volt or 8 Ohms amplified
output.
Volume Adjustments
The page volume is set by the speakers. Adjust
speakers 1/3 - 1/2 volume initially, test and reset if
necessary for correct page volume.
