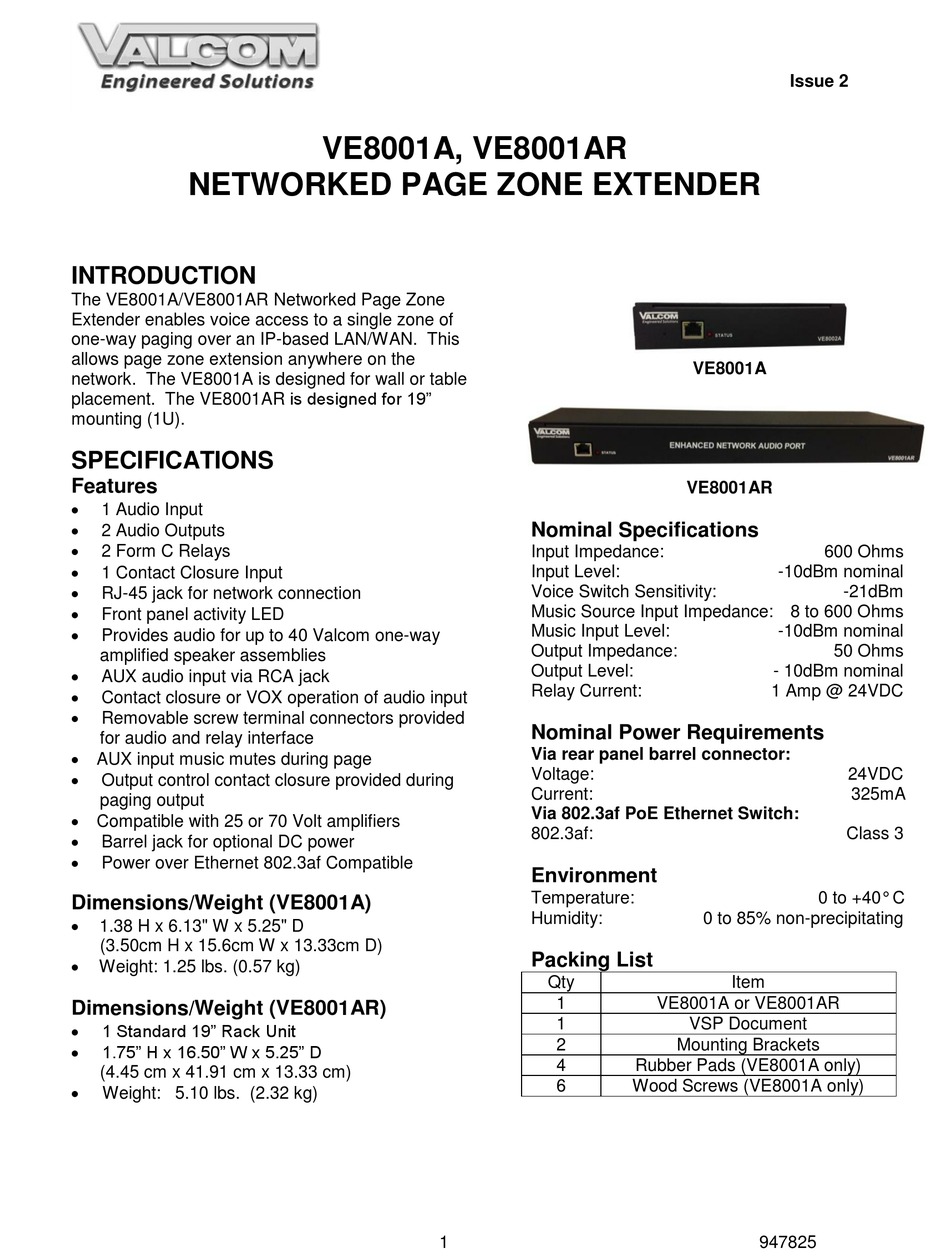

Valcom VE8001A Manual

NETWORKED PAGE ZONE EXTENDER
INTRODUCTION
The VE8001A/VE8001AR Networked Page Zone
Extender enables voice access to a single zone of
one-way paging over an IP-based LAN/WAN. This
allows page zone extension anywhere on the
network. The VE8001A is designed for wall or table

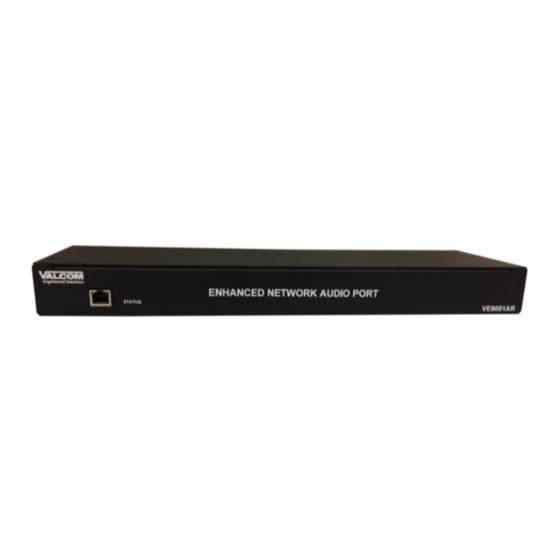

placement. The VE8001AR is designed for 19"
mounting (1U).
SPECIFICATIONS
Features

1 Audio Input

2 Audio Outputs

2 Form C Relays

1 Contact Closure Input

RJ-45 jack for network connection

Front panel activity LED

Provides audio for up to 40 Valcom one-way
amplified speaker assemblies

AUX audio input via RCA jack

Contact closure or VOX operation of audio input

Removable screw terminal connectors provided
for audio and relay interface
 AUX input music mutes during page

Output control contact closure provided during
paging output
 Compatible with 25 or 70 Volt amplifiers

Barrel jack for optional DC power

Power over Ethernet 802.3af Compatible
Dimensions/Weight (VE8001A)

1.38 H x 6.13" W x 5.25" D
(3.50cm H x 15.6cm W x 13.33cm D)

Weight: 1.25 lbs. (0.57 kg)
Dimensions/Weight (VE8001AR)

1 Standard 19" Rack Unit

1.75" H x 16.50" W x 5.25" D
(4.45 cm x 41.91 cm x 13.33 cm)

Weight: 5.10 lbs. (2.32 kg)
VE8001A, VE8001AR
1
VE8001A
VE8001AR
Nominal Specifications
Input Impedance:
Input Level:
Voice Switch Sensitivity:
Music Source Input Impedance: 8 to 600 Ohms
Music Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
Packing List
Qty
1 VE8001A or VE8001AR
1 VSP Document
2 Mounting Brackets
4 Rubber Pads (VE8001A only)
6 Wood Screws (VE8001A only)
Issue 2
600 Ohms
-10dBm nominal
-21dBm
-10dBm nominal
50 Ohms
- 10dBm nominal
1 Amp @ 24VDC
24VDC
325mA
Class 3
0 to +40° C
Item
947825
