Valcom VIP-801 Quick Manual

NETWORKED PAGE ZONE EXTENDER
INTRODUCTION

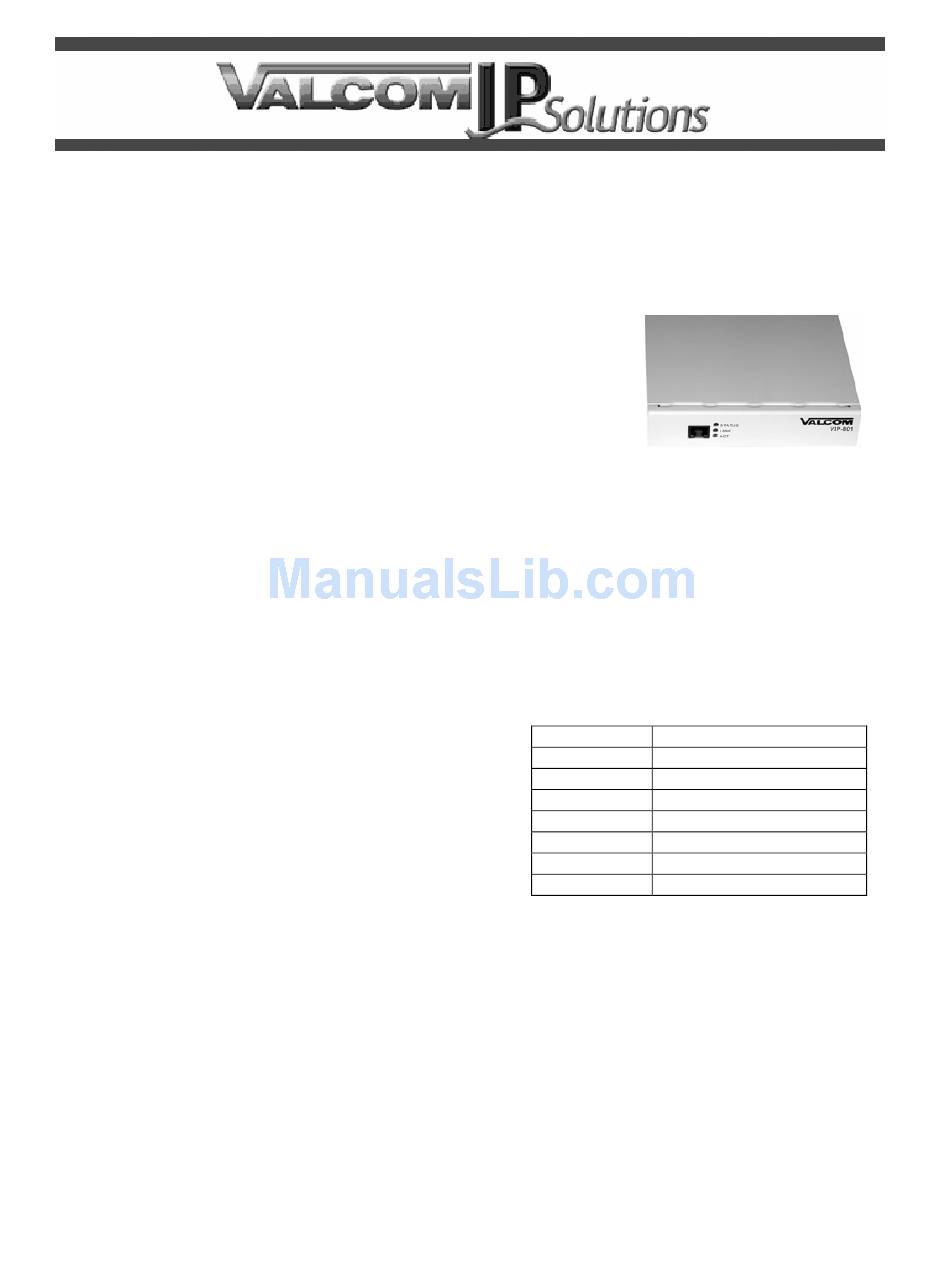

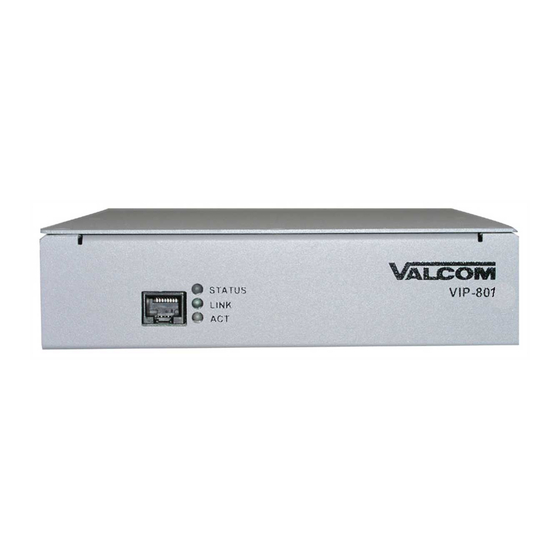

The VIP-801 Networked Page Zone Extender
enables voice access to a single zone of one-way
paging over an IP-based LAN/WAN. This allows
page zone extension anywhere on the network.

SPECIFICATIONS

Features
• 1 Audio Input
• 1 Audio Output
• 2 Form C Relays
• 1 Contact Closure Input
• RJ-45 for network connection
• Front panel activity LED
• Provides audio for up to 150 Valcom one-way
amplified speaker assemblies
• AUX audio input via RCA jack
• Contact closure or VOX operation of audio input
• Removable screw terminal connectors provided
for audio and relay interface
• Page with music output, music mutes during
page
• Output control contact closure provided during
paging output
• Compatible with 25 or 70 Volt amplifiers
• 2.5mm jack for DC power
• Power over Ethernet 802.3af Compliant
Dimensions/Weight
• 1.38 H x 6.13" W x 5.25" D
(3.50cm H x 15.6cm W x 13.33cm D)
• Weight: 1.25 lbs. (0.57 kg)
Nominal Specifications
Input Impedance:
Input Level:
Voice Switch Sensitivity:
Music Source Input Impedance: 8 to 600 Ohms
Music Input Level:
Output Impedance:
Output Level:
Relay Current:
VIP-801
600 Ohms
-10dBm nominal
-21dBm
-10dBm nominal
50 Ohms
- 10dBm nominal
1 Amp @ 24VDC
1
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity:

Packing List

Qty
1
1 VIP Setup CD
1 VSP Document
2 Mounting Brackets
4 Rubber Feet
6 Wood Screws
1 RJ-45 Patch Cable
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates, uses
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
ISSUE 3
24VDC
325mA
Class 3
0 to +40° C
0 to 85% non-precipitating
Item
VIP-801
947995
