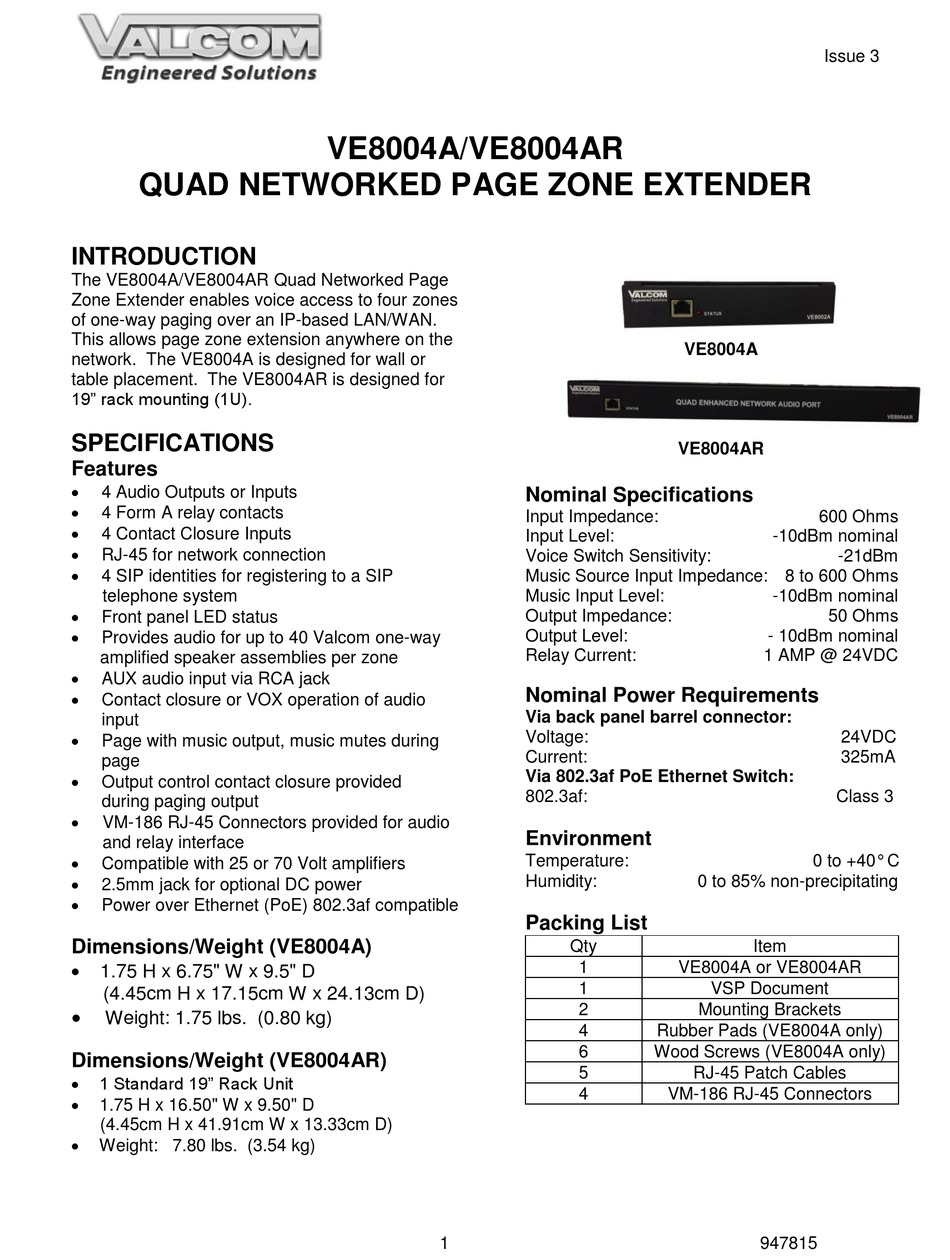

Valcom VE8004A Instructions

QUAD NETWORKED PAGE ZONE EXTENDER
INTRODUCTION
The VE8004A/VE8004AR Quad Networked Page
Zone Extender enables voice access to four zones
of one-way paging over an IP-based LAN/WAN.
This allows page zone extension anywhere on the
network. The VE8004A is designed for wall or
table placement. The VE8004AR is designed for
19" rack mounting (1U).
SPECIFICATIONS
Features

4 Audio Outputs or Inputs

4 Form A relay contacts

4 Contact Closure Inputs

RJ-45 for network connection

4 SIP identities for registering to a SIP
telephone system

Front panel LED status

Provides audio for up to 40 Valcom one-way
amplified speaker assemblies per zone

AUX audio input via RCA jack

Contact closure or VOX operation of audio
input

Page with music output, music mutes during
page

Output control contact closure provided
during paging output

VM-186 RJ-45 Connectors provided for audio
and relay interface

Compatible with 25 or 70 Volt amplifiers

2.5mm jack for optional DC power

Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight (VE8004A)

1.75 H x 6.75" W x 9.5" D
(4.45cm H x 17.15cm W x 24.13cm D)

Weight: 1.75 lbs. (0.80 kg)
Dimensions/Weight (VE8004AR)

1 Standard 19" Rack Unit

1.75 H x 16.50" W x 9.50" D
(4.45cm H x 41.91cm W x 13.33cm D)

Weight: 7.80 lbs. (3.54 kg)
VE8004A/VE8004AR
1
VE8004A
VE8004AR
Nominal Specifications
Input Impedance:
Input Level:
Voice Switch Sensitivity:
Music Source Input Impedance: 8 to 600 Ohms
Music Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via back panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
Packing List
Qty
1 VE8004A or VE8004AR
1
2 Mounting Brackets
4 Rubber Pads (VE8004A only)
6 Wood Screws (VE8004A only)
5 RJ-45 Patch Cables
4 VM-186 RJ-45 Connectors
Issue 3
600 Ohms
-10dBm nominal
-21dBm
-10dBm nominal
50 Ohms
- 10dBm nominal
1 AMP @ 24VDC
24VDC
325mA
Class 3
0 to +40° C
Item
VSP Document
947815
