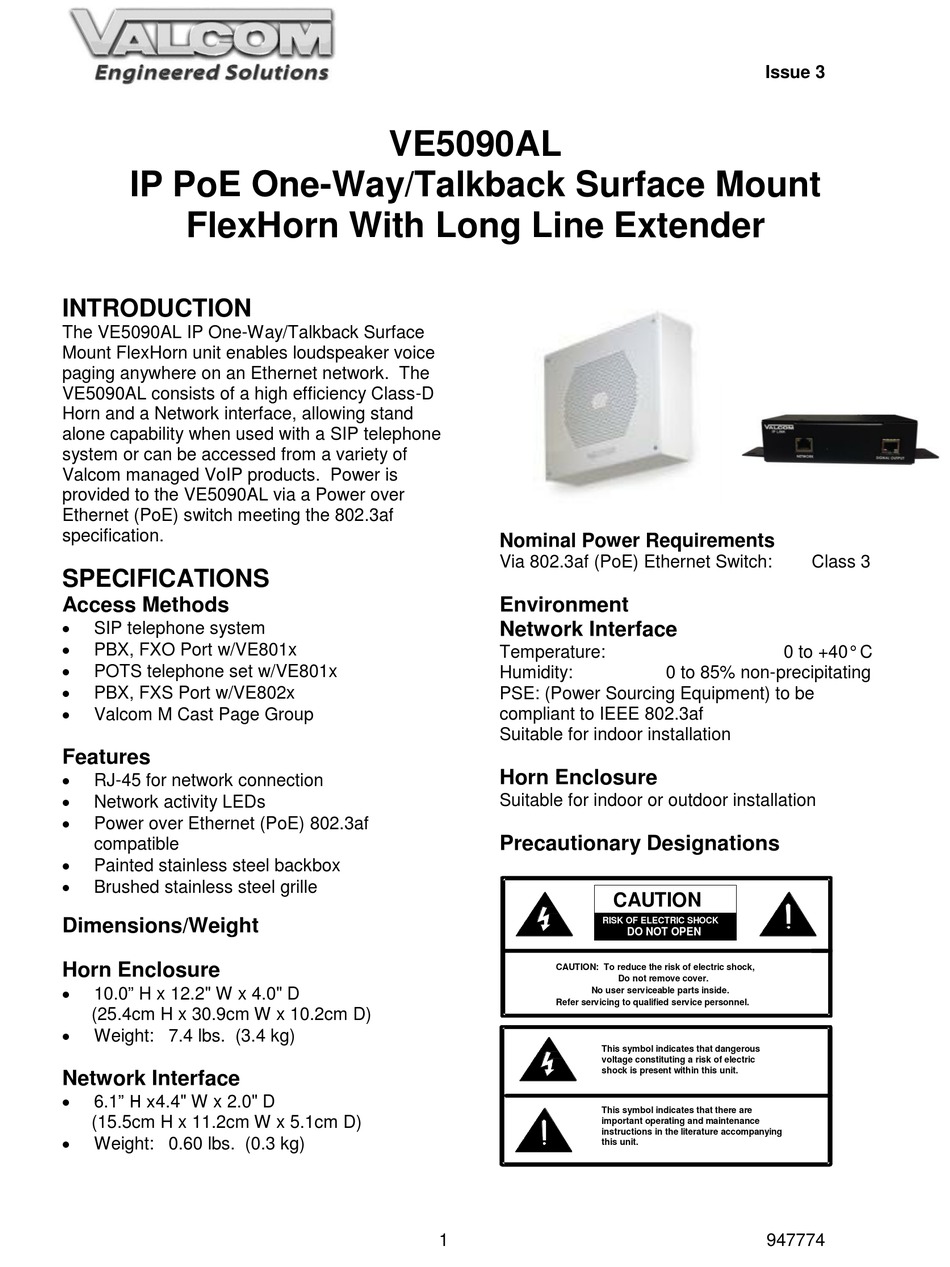

Valcom VE5090AL Instruction Manual

IP PoE One-Way/Talkback Surface Mount
FlexHorn With Long Line Extender
INTRODUCTION
The VE5090AL IP One-Way/Talkback Surface
Mount FlexHorn unit enables loudspeaker voice
paging anywhere on an Ethernet network. The
VE5090AL consists of a high efficiency Class-D
Horn and a Network interface, allowing stand
alone capability when used with a SIP telephone
system or can be accessed from a variety of
Valcom managed VoIP products. Power is
provided to the VE5090AL via a Power over
Ethernet (PoE) switch meeting the 802.3af
specification.
SPECIFICATIONS
Access Methods

SIP telephone system

PBX, FXO Port w/VE801x

POTS telephone set w/VE801x

PBX, FXS Port w/VE802x

Valcom M Cast Page Group
Features

RJ-45 for network connection

Network activity LEDs

Power over Ethernet (PoE) 802.3af
compatible

Painted stainless steel backbox

Brushed stainless steel grille
Dimensions/Weight
Horn Enclosure

10.0" H x 12.2" W x 4.0" D
(25.4cm H x 30.9cm W x 10.2cm D)

Weight: 7.4 lbs. (3.4 kg)
Network Interface

6.1" H x4.4" W x 2.0" D
(15.5cm H x 11.2cm W x 5.1cm D)

Weight: 0.60 lbs. (0.3 kg)
VE5090AL
Nominal Power Requirements
Via 802.3af (PoE) Ethernet Switch:
Environment
Network Interface
Temperature:
Humidity:
PSE: (Power Sourcing Equipment) to be
compliant to IEEE 802.3af
Suitable for indoor installation
Horn Enclosure
Suitable for indoor or outdoor installation
Precautionary Designations
CAUTION: To reduce the risk of electric shock,
Refer servicing to qualified service personnel.
1
Issue 3
0 to 85% non-precipitating
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Do not remove cover.
No user serviceable parts inside.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
947774
Class 3
0 to +40° C
