INTRODUCTION
These instructions contain the specifications and
information necessary to install, operate and maintain the
V-1095 70V Paging Expander.
SPECIFICATIONS
Design

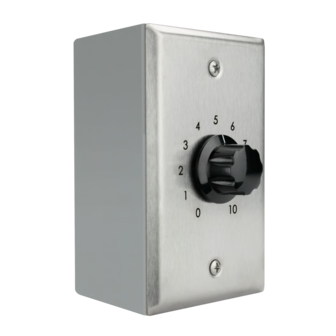

The Valcom V-1095 70V Paging Expander is used to
expand 8 Ohm, 25V, 70V or 100V systems into amplified
speaker assemblies. The unit comes with its own surface
mount box which provides 1/2" conduit access. The unit
will accept input signal from a 8 Ohm, 25V, 70V or 100V
paging system and reduce it to a low impedance reduced
level output.
Applications
•
To expand existing 8 Ohm/25/70/100V paging
systems without replacing the main amplifier. A
V-1094A preamp expander may also be required
depending on the number of speakers added.
•
To provide master volume control convenience to all
or a portion of a paging zone.
Dimensions/Weight
•
4.44"H x 2.75"W x 2.88"D
(11.28cm H x 6.99cm W x 7.32cm D)
•
0.9 lbs. (0.41 kg)
Nominal Specifications
Input Impedance:
100V
70V
25V
Output Impedance:
Frequency Response:
INSTALLATION
These instructions cover only the installation of the
Valcom V-1095. Consult the practices of other
equipment if other equipment is being used.
V-1095
70V PAGING EXPANDER
20 K Ohm
10 K Ohm
1.25 K Ohm
8 Ohms
50Hz to 20KHz +3dB
1

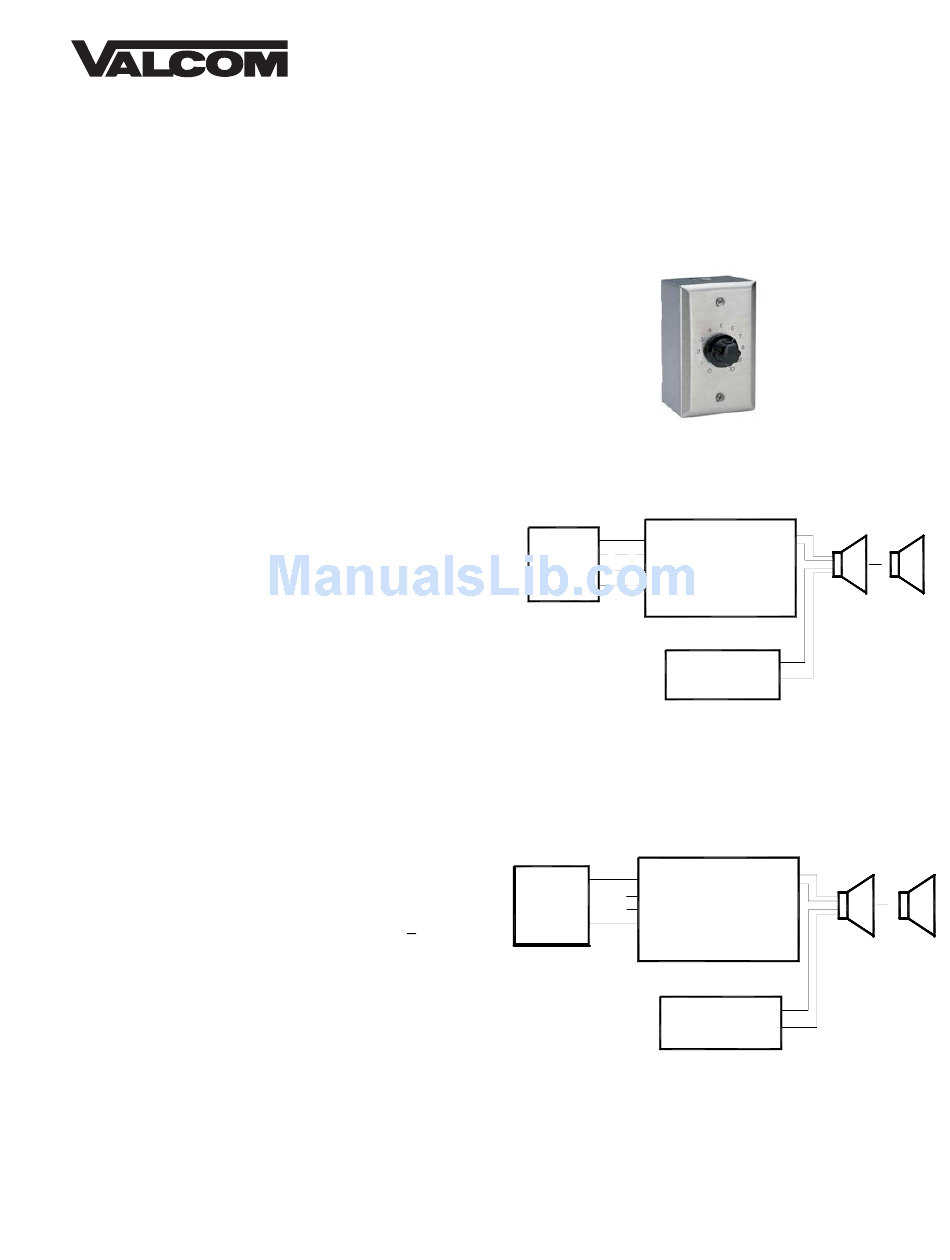

Audio and Power Connections
Expanding a 25/70/100V Amplifier
Paging Amplifier
Output
COM
COM
25V
25V
70V
OR
70V
100V
OR
100V
(V-1095 connects to a
single 25, 70 or 100V
output)
24VDC Regulated
*
* The V-1095 does not require a power supply.
The power supply is required for speaker/amplifier assemblies.
Figure 1
Expanding an 8 Ohm Amplifier Output
Paging Amplifier
Output
COM
COM
25V
70V
100V
8 Ohm
Paging Expander
24VDC Regulated
Power Supply
*
or "A" Battery
* The V-1095 does not require a power supply.
The power supply is required for speaker/amplifier assemblies.
Figure 2
Issue 6
Output
1
V-1095 70V
Paging Expander
Valcom One-Way
Speaker/Amplifier
Assemblies
Power Supply
or "A" Battery
Output
1
V-1095 70V
Valcom One-Way
Speaker/Amplifier
Assemblies
947075
150
