Valcom V-1094A Quick Manual

PAGE PORT PREAMP/EXPANDER
INTRODUCTION
These instructions contain the specifications and
information necessary to install, operate and maintain
the V-1094A Page Port Preamp/Expander.

SPECIFICATIONS

Design
The Valcom V-1094A Page Port Preamp/ Expander is
a solid-state audio preamplifier. The unit comes with
its own surface mount box, which provides ½ inch
conduit access. The amplifier will accept a high
impedance input (600 Ohms) and reduce it to a low
impedance output. When the control knob is set on 5,
the input signal level equals the output signal level.
The V-1094A is capable of driving 150 Valcom
one-way speaker/amplifier assemblies.
Applications
•
To interface 600 Ohm type page ports to up to
150 Valcom amplified speakers
•
To expand the number of Valcom amplified
speakers on a zone by 150
•
To pre-amp audio signal on long lines to Valcom
amplified speakers
•
To provide master volume control convenience
to all or a portion of a paging zone
Dimensions/Weight
•
4.44"H x 2.75"W x 2.88"D
(11.28cm H x 6.99cm W x 7.32cm D)
•
0.9 lbs. (0.41 kg)

Power Requirements

Voltage Range:
Idle Current:
Operating Current:
Nominal Specifications
Input Impedance:
Output Impedance:
V-1094A
-21 to -26VDC "B" Battery
12mA
15mA
600 Ohms
8 Ohms
Frequency Response:
3dB
Gain (into 8 Ohm load):
INSTALLATION
These instructions cover only the installation of the
Valcom V-1094A. Consult the practices of other
equipment if any other equipment is used.

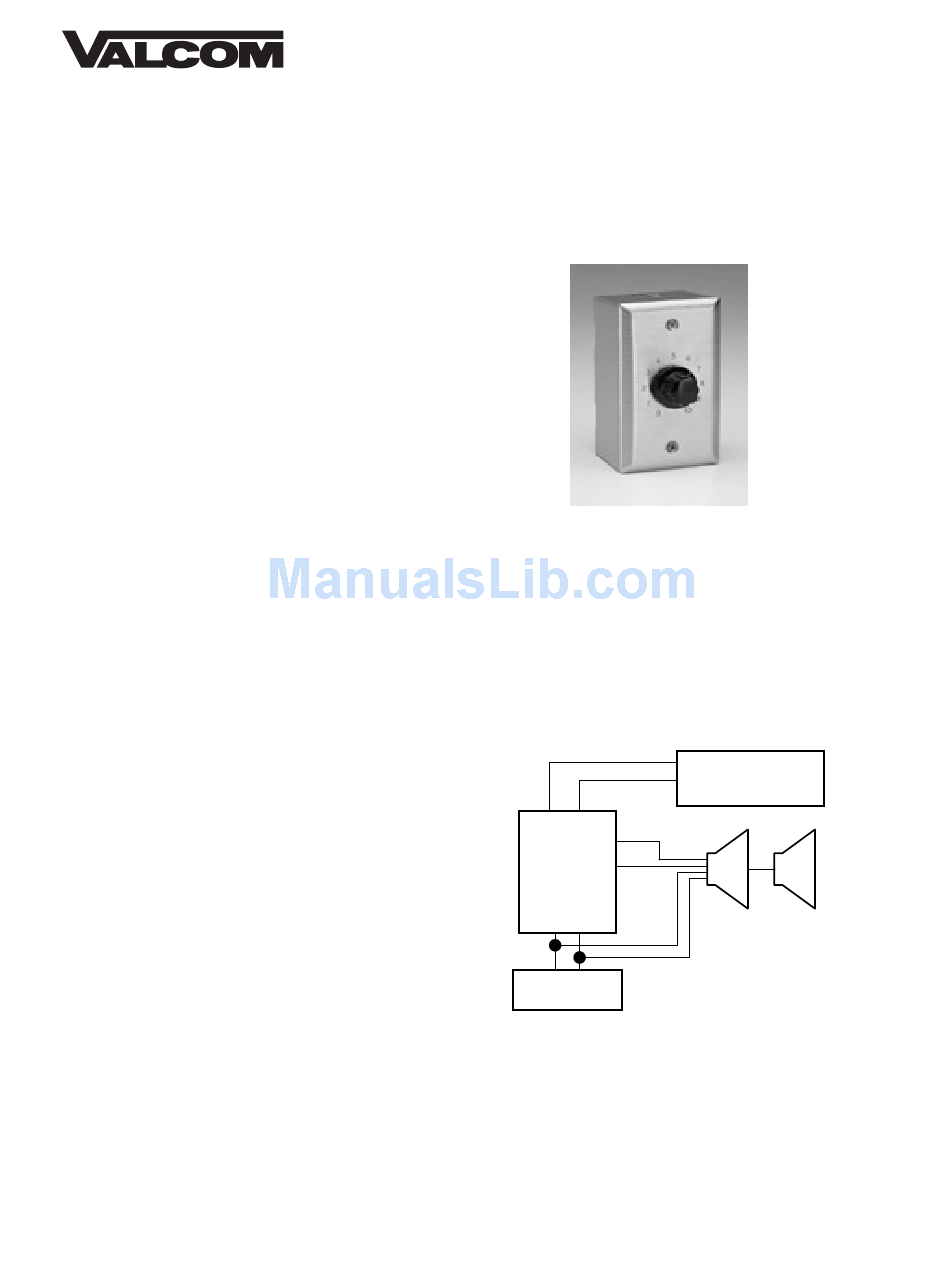

Audio and Power Connections
T (J1) R
Input
T
R
V-1094A
Output
Page Port
Preamp (J3)
Expander
(J2)
-24V GND
Power Supply
Refer to the figure above for connections.
Cabling "D" type station wire or other suitable pairs
may be used for audio and power connections.
1
VSP-V-1094A
Issue 7
80Hz to 10kHz +/-
+8dB maximum
600 Ohm page port
or zone output of a
page control unit
Up to 150
One-Way
Amplified
Speakers
Input level equals output
level at position 5
947095
