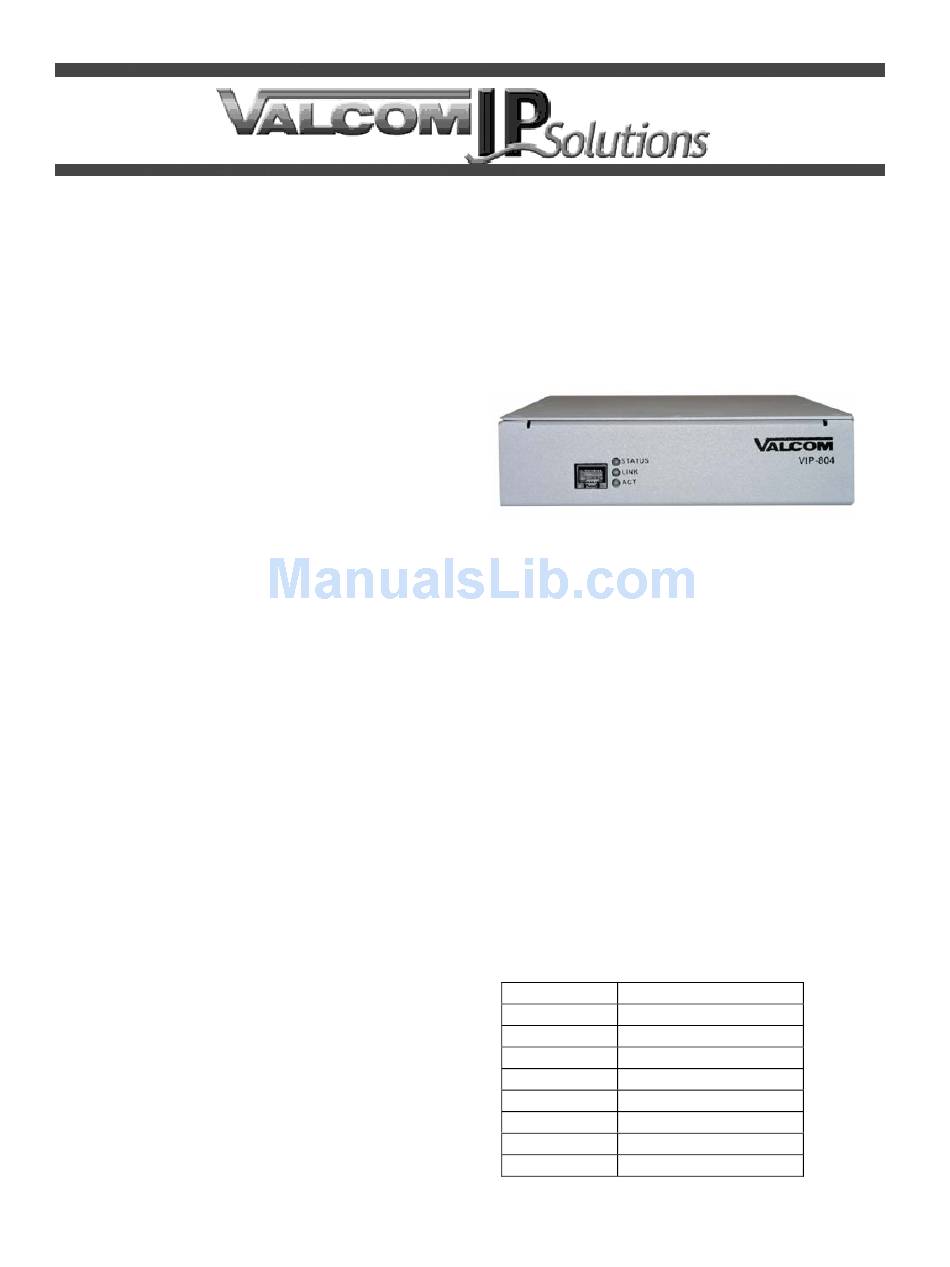

Valcom VIP-804 Quick Manual

QUAD NETWORKED PAGE ZONE EXTENDER
INTRODUCTION
The VIP-804 Quad Networked Page Zone
Extender enables voice access to four zones of
one-way paging over an IP-based LAN/WAN. This
allows page zone extension anywhere on the
network.

SPECIFICATIONS

Features
• 4 Audio Outputs
• 4 Audio Inputs
• 4 Form A relay contacts
• 4 Contact Closure Inputs
• RJ-45 for network connection
• Front panel activity LED
• Provides audio for up to 150 Valcom one-way
amplified speaker assemblies
• AUX audio input via RCA jack
• Contact closure or VOX operation of audio
input
• Removable screw terminal connector provided
for audio and relay interface
• Page with music output, music mutes during
page
• Output control contact closure provided during
paging output
• Compatible with 25 or 70 Volt amplifiers
• 2.5mm jack for DC power
• Power over Ethernet 802.3af Compliant
Dimensions/Weight
• 1.75 H x 6.75" W x 9.5" D
(4.45cm H x 17.15cm W x 24.13cm D)
• Weight: 1.75 lbs. (0.80 kg)
VIP-804
Nominal Specifications
Input Impedance:
Input Level:
Voice Switch Sensitivity:
Music Source Input Impedance: 8 to 600 Ohms
Music Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via back panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity:

Packing List

Qty
1
1
1
2
4
6
5
4
1
600 Ohms
-10dBm nominal
-10dBm nominal
50 Ohms
- 10dBm nominal
1 AMP @ 24VDC
0 to +40° C
0 to 85% non-precipitating
Item
VIP-804
VIP-101 Setup CD
VSP Document
Mounting Brackets
Rubber Feet
Wood Screws
RJ-45 Patch Cables
RJ-45 Terminal Blocks
ISSUE 1
-21dBm
24VDC
325mA
Class 3
947988
