Straight-Through Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connections
Because the 10/100 port on the access point supports Auto-MDIX operation,
you can use either "straight-through" or "crossover" cable for network connec-
tions to PCs, servers, hubs, or switches.

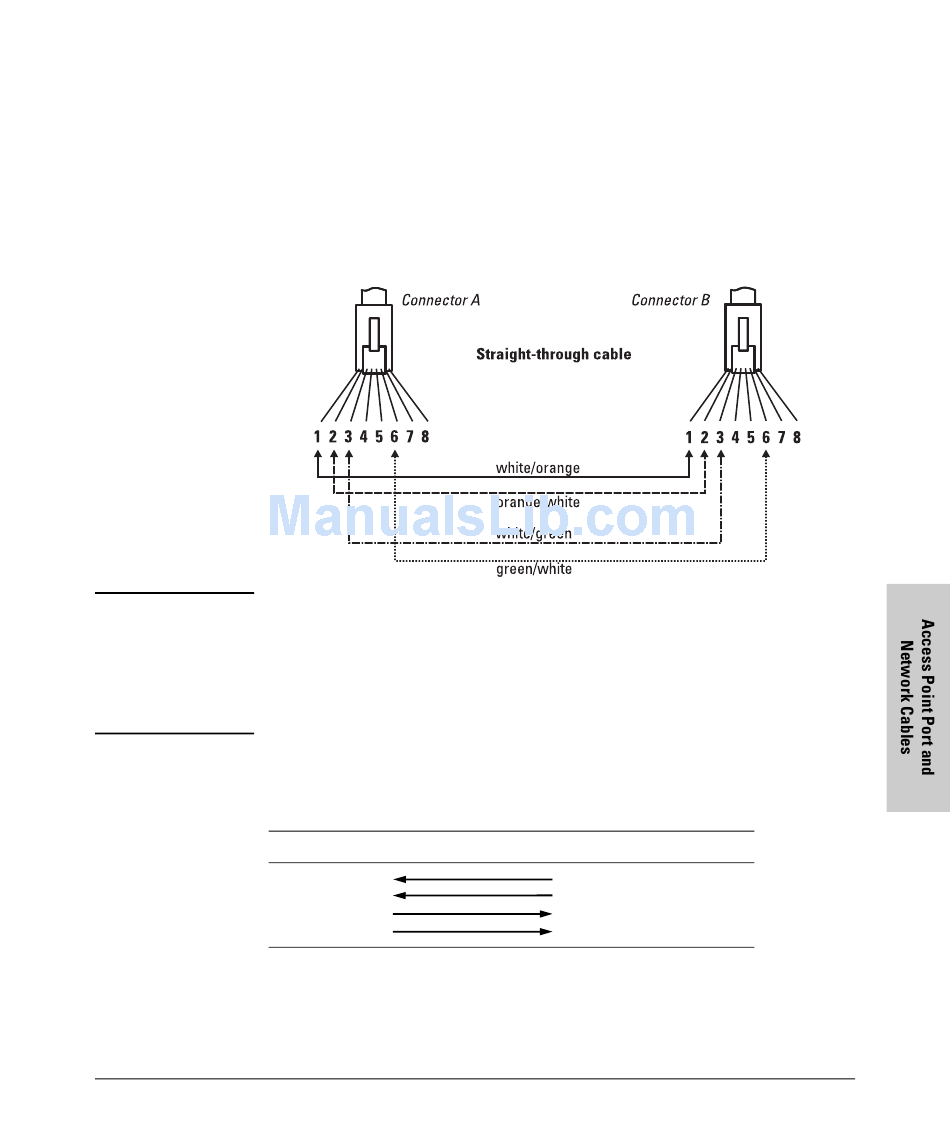

Cable Diagram
N o t e
Pins 1 and 2 on connector "A" must be wired as a twisted pair to pins 1 and 2
on connector "B".
Pins 3 and 6 on connector "A" must be wired as a twisted pair to pins 3 and 6
on connector "B".
Pins 4, 5, 7, and 8 are not used for transmitting or receiving data, although they
must be wired straight-through in the cable to support Power over Ethernet.
.
Pin Assignments
Access Point End (MDI)
Signal
Pins
receive +
1
receive -
2
transmit +
3
transmit -
6
Access Point Port and Network Cables
Twisted-Pair Cable/Connector Pin-Outs
Hub or Switch Port, or Other
MDI Port End
Pins
Signal
1
transmit +
2
transmit -
3
receive +
6
receive -
B-3
