Installing the Access Point 530
Installation Procedures
2.
3.
If you want to continue with console management of the access point at this
time, see chapter 3, "Getting Started With Access Point Configuration" for
some basic configuration steps. For more detailed information, refer to the
Management and Configuration Guide.
2-16
Note: As indicated in the following table, some of the wires should not
be connected. If you do connect the wires that are labeled "Reserved",
you might get unexpected results with some terminals.

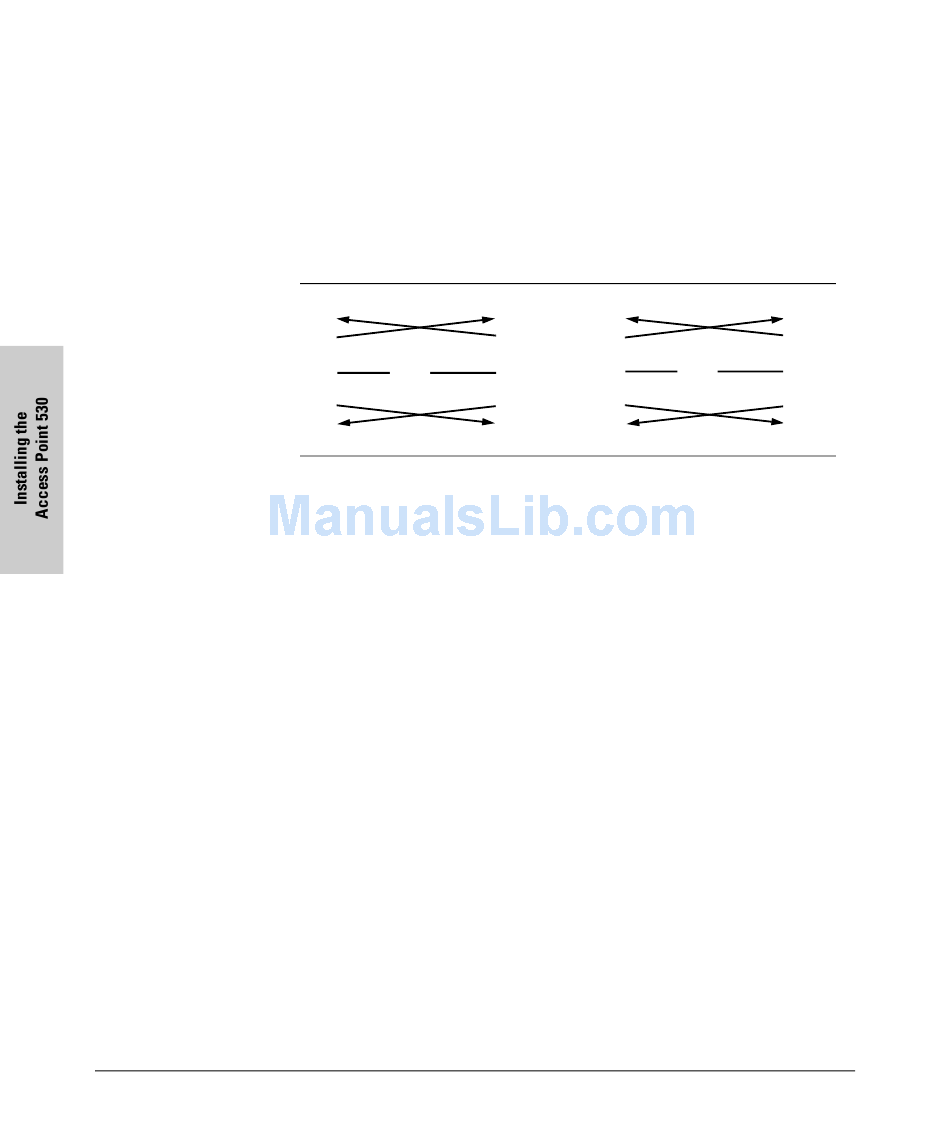

Serial interface signal directions
DB-9 (DTE)
DB9 (DTE)
Access Point 530
Terminal or PC
1
Reserved
2
3
4
Reserved
5
GND
6
Reserved
7
8
Reserved
9
Turn on the terminal or PC's power and, if using a PC, start the PC terminal
program.
Enter admin at the Username: prompt, and admin at the Password: prompt.
You will then see the access point console command (CLI) prompt, for
example:
ProCurve Access Point 530#
DB-9 (DTE)
Access Point 530
1
1
Reserved
2
2
3
3
4
4
Reserved
5
5
GND
6
6
Reserved
7
7
8
8
Reserved
9
9
DB-25 (DTE)
Terminal or PC
8
3
2
20
7
6
4
5
22
