- Page 1 Indoor Environment Quality Monitor Instruction 1509-9001 Operation Manual Rev. 1 - July 2011 Product Leadership • Training • Service • Reliability...
- Page 2 IEQ Chek Operation Manual 1509-9001 Rev 1...
-
Page 3: Important Note
PURCHASE DATE: PURCHASED FROM: WARRANTY POLICY BACHARACH, INC. WARRANTS THIS INSTRUMENT, EXCLUDING SENSORS, TO BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP FOR A PERIOD OF TWO YEARS FROM THE DATE OF PURCHASE BY THE ORIGINAL OWNER. THE SENSORS HAVE A WARRANTY PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE. IF THE PRODUCT SHOULD BECOME DEFECTIVE WITHIN THIS WARRANTY PERIOD, WE WILL REPAIR OR REPLACE IT AT OUR DISCRETION. - Page 4 PROTECTION AND ALL RIGHTS ARE RESERVED. NO PARTY MAY USE OR COPY SUCH SOFTWARE IN ANY MANNER OR FORMAT, EXCEPT TO THE EXTENT THAT BACHARACH GRANTS THEM A LICENSE TO DO SO. IF THIS SOFTWARE IS BEING LOADED ONTO MORE THAN ONE COMPUTER, EXTRA SOFTWARE LICENSES MUST BE PURCHASED.
- Page 5 WEBSITE: www.MyBacharach.com IN NO EVENT WILL BACHARACH, INC., OR ITS OFFICERS OR EMPLOYEES BE LIABLE FOR ANY DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY DEFECT IN ANY MANUAL, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
-
Page 6: Table Of Contents
IEQ Chek Operation Manual TABLE OF CONTENTS OVERVIEW ........................ 1 1.1. General Description .................... 1 1.2. IEQ Chek™ Shipping Checklist ................2 1.3. Key Features ...................... 2 1.4. Sensor Configuration Notes ................2 SPECIFICATIONS ..................... 3 2.1. General ....................... 3 2.2. - Page 7 IEQ Chek Operation Manual 11. DUAL PROBE VERSION ..................27 11.1. Applications Overview ..................27 11.2. Probes ......................28 11.3. Instrument Kits for Dual-Probe Applications .............29 11.4. Application Setup and Configuration ..............30 12. MENU ARCHITECTURE ..................31 1509-9001 Rev 1...
- Page 8 IEQ Chek Operation Manual viii 1509-9001 Rev 1...
-
Page 9: Overview

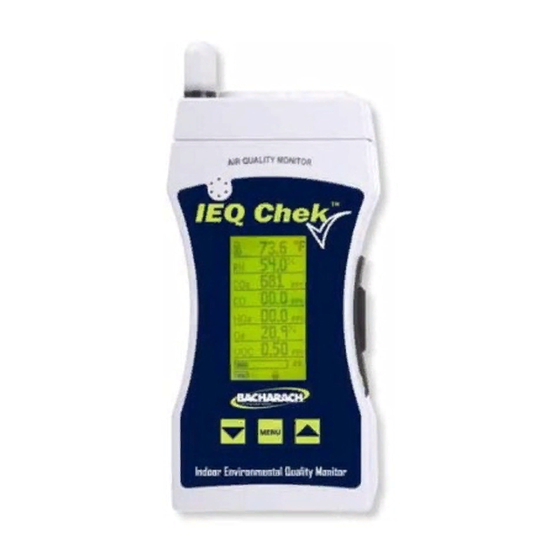

Operation Manual OVERVIEW 1.1. General Description Thank you for purchasing the IEQ Chek™ indoor environmental quality monitor. The IEQ Chek™ is an easy-to-use, portable, information-recording device for monitoring trends that pertain to indoor air quality. The IEQ Chek™ is a battery-powered, portable, indoor air quality monitor and information recording (data logging) instrument designed for both intermittent and continuous operation. -
Page 10: Ieq Chek™ Shipping Checklist
Shipping Checklist ™ This checklist ensures that you have received everything required to run your IEQ Chek. If you do not receive any of the items listed below, contact the factory immediately. • IEQ Chek™ instrument • AC wall adapter (6V @ 850 mA) •... -
Page 11: Specifications
IEQ Chek Operation Manual SPECIFICATIONS 2.1. General Categories/Subcategories Descriptions L x W x D Dimensions 7.75” x 3.87” x 3.06” (19.7 cm x 9.8 cm x 7.8 cm) Weight 20 ounces (567 grams) including batteries Sensor cover (removable; top of enclosure) Covers Battery cover (removable;... - Page 12 IEQ Chek Operation Manual 3.87″ (9.8 cm) Figure 2-1. IEQ Chek™ Dimensions 1509-9001 Rev 1...
-
Page 13: Iq Chek™ Datalogging Software (Optional)
NOTE: Other measurement ranges are available for some sensors. Contact Bacharach with desired range to confirm availability. NOTE: Some of the these sensors must be calibrated with correlation gases because they are more readily available. If the customer wishes them to be calibrated with the exact target gas, extra charges will apply to acquire the specific gas if and when available. -
Page 14: Key Components
MULTI-LINE, MANUAL BACK-LIT, LCD, ALPHA-NUMERIC, DIGITAL DISPLAY 3-BUTTON WALL ADAPTER MEMBRANE PLUG (ON SIDE) KEYPAD NOTE: 6VDC ONLY BRASS THREAD FOR BOTTOM VIEW TRIPOD MOUNTING BATTERY DOOR Figure 3-1. IEQ Chek™ Key Components (Front and Bottom Views) 1509-9001 Rev 1... -
Page 15: Key Components: Left Side View
REMOVED AUXILIARY PORT FOR REMOTE PROBES SLOT FOR SECURING SLOT CABLE LOCK (SIMILAR TO FOR SD THOSE USED FOR LAPTOP FLASH COMPUTERS) CARD USB PORT FOR DOWNLOADING TO PC Figure 3-2. IEQ Chek™ Key Components (Side View) 1509-9001 Rev 1... -
Page 16: Key Components: Top And Back Views
SLOT FOR is very good for most gases. HANGING INSTRUMENT ON WALL SERIAL NUMBER LABEL ACCESS HOLES TO THREE SCREWS HOLDING FRONT AND REAR ENCLOSURE HALVES TOGETHER Figure 3-3. IEQ Chek™ Key Components (Top and Back Views) 1509-9001 Rev 1... -
Page 17: Instrument Operation
Operation Manual INSTRUMENT OPERATION 4.1. General The IEQ Chek™ has an extensive menu system allowing the user to access a wide range of features and functionality. All features and functions can be set to meet the user’s specific requirements. BUTTON PRESSING: The three membrane push-buttons on the front face of the instrument should be pressed firmly. -
Page 18: Switching The Instrument On/Off
NOTE: The instrument will not charge the NiMH batteries unless the instrument is switched off. CAUTION: A yellow warning label is on the battery door of the IEQ Chek™ to alert users of the potential risk of damage to the device if alkaline batteries are installed and the user mistakenly attempts to recharge them with the supplied wall adapter. -
Page 19: Main Menu Functional Overview
USB: Allows the user to reset the USB chip if the IEQ Chek™ will not communicate with IQ Chek™ software. 1509-9001 Rev 1... -
Page 20: Menu Function Details
Both zero and span functions are automated. Before span adjusting the sensor, the user must first tell the IEQ Chek™ what concentration of span gas is being used to span each sensor. This does not apply to temperature, RH, or oxygen sensors. -
Page 21: Settings Menu
IEQ Chek Operation Manual 5.2. Settings Menu This menu item provides the user with the ability to configure much of the instrument functionality to suit his specific needs. Use the ARROW DOWN button to scroll to SETTINGS then push the MENU button to access this menu and view the listed functions. - Page 22 Using the ARROW DOWN button, scroll down to the battery type desired and press the MENU button to accept. NOTE: The IEQ Chek™ is supplied from the factory with (and configured for) rechargeable NiMH batteries. If the user wishes to change from one type to another (e.g., rechargeable to alkaline), he must first make the change through...
-
Page 23: Datalog Menu
IEQ Chek Operation Manual PUMP: This menu item allows the user to select REG FLOW (regular flow) or HIGH FLOW for the pump. Regular flow sets the pump flow rate to approximately 0.3 LPM default. High flow increases the flow rate and should be used when a hose/probe is attached. - Page 24 After the sampling rate has been selected, the logger START method must be selected from one of the following. STARTUP: Logging will start when the IEQ Chek™ is turned on and ACTIVATE has been selected from the DATALOG menu SET TIME: User can set the time and date to start logging After the START method has been selected the END method must be selected from one of the following.
-
Page 25: Alarm Menu
IEQ Chek Operation Manual NONE SETUP KOREA MOM HOME CONF RM5 <EMPTY> MEM CARD: This menu item provides the user with information about the flash card and a function to format a new card. The selections are: INFO: This menu function indicates the size of the flash card memory and the number of CSV files stored, if any. -
Page 26: Info Menu
IEQ Chek Operation Manual NEXT: Select next after you have highlighted only the sensors you want to have alarm set points for. Press the MENU button at this menu item and the LCD indicates ALARM SET UP HAS BEEN SAVED. The LCD then goes back to the alarm menu. -
Page 27: Usb Menu
The pump inside the IEQ Chek must not be “drawn down” because of a low flow rate from a cylinder regulator. Conversely, the pump must not be “back driven” by a high flow rate being forced through the instrument. -
Page 28: Calibration Process: Zero
Attach the cylinder flow regulator to the cylinder of 100% nitrogen. Open the valve fully. Attach the brass fitting to the inlet fitting of the IEQ Chek. Verify that a bar appears along the bottom of the LCD indicating the progress. -
Page 29: Calibration Process: 1-Point Span
IEQ Chek Operation Manual Step 3-Point Span Procedure Enter the security code correctly and the LCD indicates CAL. Using the DOWN ARROW scroll to SPAN and push the MENU button. The next menu indicates installed gas sensors. The LCD indicates the list of installed sensors. Use the ARROW DOWN... -
Page 30: Adding Or Changing Plug-And-Play Sensors
It is the only sensor that skips the first span calibration menu screen. ADDING OR CHANGING PLUG-AND-PLAY SENSORS The IEQ Chek accommodates up to seven sensors. Two of those sensors are temperature and relative humidity and these sensors are permanently installed in all instruments. - Page 31 IEQ Chek Operation Manual All IEQ Chek gas sensors are plug-and-play smart sensors. They can be added or changed at any time. The procedure to add or change a sensor is as follows. Figure 7-1. Transmitter Circuit Board With Four Sensors Installed NOTE: If the newly installed sensor is not zero adjusted after installation, the display may indicate a slight reading of the target gas even in a clean environment.
- Page 32 IEQ Chek Operation Manual Step Procedure to Add/Change a Sensor If another sensor is to be installed in its place, ensure it is of the same type (electrochemical, infrared, PID/Catalytic), to be accommodated by the sensor location recently vacated. Carefully grasp the new sensor by the sides and line up all of the pins on the smart sensor board attached to the bottom of the sensor with the sockets on the transmitter board.
-
Page 33: Maintenance
, PID, or catalytic gas sensor. MAINTENANCE Externally, the IEQ Chek requires only cleaning with a damp cloth, wiping off the exterior surface and basic inspection for obvious damage or problems. Internally, sensors should be maintained because they have a specific life span. As they age, they must be calibrated (zero and span adjusted) for accuracy. -
Page 34: Accessories
Provides enough battery power for approximately 7 to 10 days of continuous (24 hours per day) operating time for IEQ Chek when used in areas where line voltage is not available for the wall adapter. This battery option is installed in a hard shell carrying case with its own battery charger and battery monitoring circuit to maximize battery life. -
Page 35: Dual Probe Version
(e.g., greenhouses, mushroom farms, etc.). For example, the IEQ Chek can be used to monitor key environmental levels within lab incubators commonly used in medical and research facilities. Lab incubators need to provide constant temperature, humidity, and carbon dioxide (CO... -
Page 36: Probes
With the optional IQ Chek™ software and datalogging kit, all instrument readings can be stored for reference. 11.2. Probes The probes included with the dual-probe version of the IEQ Chek™ are summarized in the following table. High Humidity Gas Calibration/Sample... -
Page 37: Instrument Kits For Dual-Probe Applications
IEQ Chek Operation Manual 11.3. Instrument Kits for Dual-Probe Applications Specific versions of the IEQ Chek are available in kits for dual probe applications (see table below for part numbers). These kits include: • the IEQ Chek™ equipped with an internal pump and two sample ports •... -
Page 38: Application Setup And Configuration
IEQ Chek Operation Manual 11.4. Application Setup and Configuration Operation of the IEQ Chek dual-probe versions require minimal setup prior to use. This setup involves: • Connecting the temperature/RH probe • Connecting the high humidity gas sample probe •... -
Page 39: Menu Architecture
IEQ Chek Operation Manual 12. MENU ARCHITECTURE Below is a high-level architecture diagram of the IEQ Chek menu system. Figure 12-1. Menu Architecture 1509-9001 Rev 1... - Page 40 IEQ Chek Operation Manual World Headquarters 621 Hunt Valley Circle, New Kensington, Pennsylvania 15068 Phone: 724-334-5000 • Toll Free: 1-800-736-4666 • Fax: 724-334-5001 Website: www.MyBacharach.com • E-mail: help@MyBacharach.com 1509-9001 Rev 1...
