WARNING: Inhalation of high concentrations of refrigerant vapors is harmful and may
cause heart irregularities, unconsciousness, or death. Deliberate inhalation
of refrigerants is extremely dangerous and death can occur without warning.
Vapors reduce oxygen available for breathing and are heavier than air.
Decomposition products are hazardous. Liquid contact may cause frostbite.
All refrigerant containers, equipment, and hoses are under pressure.
CAUTION:
Before operating this unit, please read this manual in its entirety. It is
important that you have a thorough understanding of the procedures
outlined in this manual. Failure to follow these procedures could void all
manufacturer warranties.
BEFORE HANDLING REFRIGERANTS, READ THE MATERIAL SAFETY
DATA SHEET FROM THE REFRIGERANT MANUFACTURER.

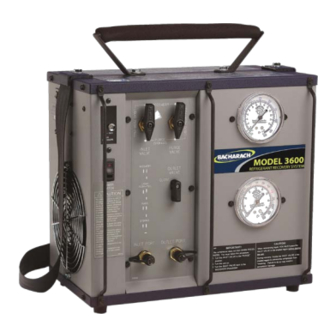

Refrigerant Recovery System
Part No. 2000-3600
Operation & Maintenance Manual
Model 3600
Instruction 2079-0140
Rev 2 - December 2012
Advertisement
Table of Contents
Related Manuals for Bacharach Refrigerant Recovery System 3600
Summary of Contents for Bacharach Refrigerant Recovery System 3600
- Page 1 Refrigerant Recovery System Model 3600 Part No. 2000-3600 Operation & Maintenance Manual Instruction 2079-0140 Rev 2 - December 2012 WARNING: Inhalation of high concentrations of refrigerant vapors is harmful and may cause heart irregularities, unconsciousness, or death. Deliberate inhalation of refrigerants is extremely dangerous and death can occur without warning. Vapors reduce oxygen available for breathing and are heavier than air.
-
Page 2: Table Of Contents
Refrigerant Recovery System Model 3600 Table of Contents CHAPTER 1: INTRODUCTION ..........................3 1.1................................. 3 VERVIEW 1.2..............................3 PECIFICATIONS 1.3................................4 EATURES CHAPTER 2: SAFETY ............................... 5 2.1..........................5 ENERAL AFETY NSTRUCTIONS 2.2............................6 PERATIONAL AFETY CHAPTER 3: FEATURES ............................ -
Page 3: Chapter 1: Introduction
We are committed to your complete satisfaction! Please note that Bacharach requires that a filter be used on the inlet hose coming from the system being serviced in order to protect the compressor from particulate. -
Page 4: Features
Refrigerant Recovery System Model 3600 Refrigerant Recovery Rates Certified per AHRI 740-95 & 740-98 Refrigerant Liquid Rate Liquid Push-Pull Rate Vapor Rate 4.96 lb/min 13.01 lb/min 0.37 lb/min R-22 2.25 kg/min 5.90 kg/min 0.17 kg/min 3.86 lb/min 11.84 lb/min 0.29 lb/min R-134A 1.75 kg/min 5.37 kg/min... -
Page 5: Chapter 2: Safety
Model 3600 Refrigerant Recovery System CHAPTER 2: SAFETY 2.1. General Safety Instructions 1. K QUIPMENT Read and understand the operation manual and labels affixed to the unit. Learn its application and limitations as well as the specific potential hazards of your equipment. 2. -
Page 6: Operational Safety
Refrigerant Recovery System Model 3600 2.2. Operational Safety WARNING: Inhalation of high concentrations of refrigerant vapors is harmful and may cause heart irregularities, unconsciousness, or death. Deliberate inhalation of refrigerants is extremely dangerous and death may occur without warning. Vapor reduces oxygen available for breathing and is heavier than air. -
Page 7: Chapter 3: Features
Model 3600 Refrigerant Recovery System CHAPTER 3: FEATURES 3.1. Location and Description of Unit Features Component Description Purge Ball This valve determines Valve what function the Model 3600 performs. This valve is UP during recovery operations and DOWN for purging and liquid push-pull operations. -
Page 8: Led Display
Refrigerant Recovery System Model 3600 3.2. LED Display Meaning Explanation Normal Operation Indicates that the power switch is ON and the compressor is Green running. High Pressure Indicates that there is a high pressure condition that must be Condition corrected. The internal high pressure switch activates at 550 psi. Indicates that the recovery cylinder is full (if the Automatic 80% Tank Full Tank Full Shutoff Option is installed). -
Page 9: Chapter 4: Recovery
In order to reduce the affects of these conditions, Bacharach recommends the following: • Whenever possible, cool your recovery tank with ice or water. This keeps the compressor discharge pressures lower, which will result in faster recovery rates and longer compressor life. - Page 10 Refrigerant Recovery System Model 3600 Step Description Monitor the LED status display. The unit will shut off automatically when the proper vacuum level is achieved and the status display LED will turn off. Description Indicates that the power switch is ON and the compressor is running. If the green LED is off, this indicates that the unit has shut down because Green the system being evacuated has reached 13"...
-
Page 11: Vapor Recovery Hose Connection
Model 3600 Refrigerant Recovery System 4.3. Liquid/Vapor Recovery Hose Connections Figure 1. Liquid/Vapor Recovery Hose Connections Use only approved DOT recovery cylinders. Follow precautions and warnings listed on the cylinder. If servicing a system with a compressor burn-out, use a high acid type filter drier and do not reuse. Recovery Mode Storage Mode Figure 2. -
Page 12: Liquid Push-Pull Recovery General Information
Refrigerant Recovery System Model 3600 4.4. Liquid Push-Pull Recovery General Information Attention: Before attempting the following liquid push-pull recovery operations, please review this page. It may not be possible to recover liquid refrigerant from some types of refrigeration equipment. A scale or liquid sight glass can be used to determine when all the liquid is recovered. The unit will not pull a vacuum using the push-pull liquid recovery operation. -
Page 13: Procedures
Model 3600 Refrigerant Recovery System 4.5. Liquid Push Pull Recovery Procedures Liquid push-pull operations are performed by using hot compressor gas to push liquid refrigerant out of a system. The purge valve accomplishes this by re-directing the hot compressor gas around the condenser. -
Page 14: Liquid Push-Pull Hose Connections
Refrigerant Recovery System Model 3600 4.6. Liquid Push-Pull Hose Connections Figure 3. Liquid Push Pull Hose Connections Use only approved DOT recovery cylinders. Follow precautions and warnings listed on the cylinder. If servicing a system with a compressor burn-out, use a high acid type filter drier and do not reuse. Liquid Push-Pull Mode Storage Mode Figure 4. -
Page 15: Pump Down Operations
Model 3600 Refrigerant Recovery System 4.7. Pump Down Operations The Model 3600 is equipped with a pump-down purge valve that allows the technician to pump down or evacuate the 3600 before proceeding to the next recovery operation. This procedure not only eliminates cross contamination, but also conserves refrigerant. -
Page 16: Dot Recovery Cylinder Safety
80% full. When the Model 3600 is equipped with the 80% shutoff cord, Bacharach recommends that you use this cord for added safety. If the Model 3600 is not equipped with an 80% shutoff cord, or, if you are using a recovery cylinder that does not have a float switch, then you must use a scale and the guidelines below to prevent overfilling of the cylinder. -
Page 17: Chapter 5: Troubleshooting
Replace with empty cylinder or 450 psi high pressure limit. cool cylinder with water/ice • Green LED Bad thermal overload Call Bacharach for service • NONE Circuit breaker is tripped Reset circuit breaker No power to the unit Plug the unit into a 110-120 volt power source •... -
Page 18: Chapter 6: Electrical Schematic
Refrigerant Recovery System Model 3600 CHAPTER 6: ELECTRICAL SCHEMATIC... -
Page 19: Chapter 7: Replacement Parts
Model 3600 Refrigerant Recovery System CHAPTER 7: REPLACEMENT PARTS Part # Component Description 0007-1700 FILTER/DRYER 1.00 2002-0011 COMPRESSOR RE-BUILD KIT, INCLUDES: SUCTION & DISCHARGE 1.00 VALVES, SPRINGS, ONE VALVE PLATE, & O-RINGS 2012-0130 POWER CORD SJTO, 18/3, 6FT 1.00 2012-0080 GUARD, FAN 5.9"... - Page 20 Refrigerant Recovery System Model 3600 World Headquarters 621 Hunt Valley Circle, New Kensington, PA 15068 Ph: 724-334-5000 • Fax: 724-334-5001 • Toll Free: 1-800-736-4666 Web site: www.MyBacharach.com • E-mail: help@MyBacharach.com U.S.A. ® R RINTED IN EGISTERED RADEMARK...
