OXOR II
®
INSTRUCTION 19-9126
Portable Oxygen Analyzer
Part No. 19-7037
& 19-7044
Rev. 6 – October 1999
Bacharach, Inc.
621 Hunt Valley Circle, New Kensington, PA 15068
PH: 724-334-5000 • FAX: 724-334-5001 • Web: www.bacharach-inc.com
E-mail: help@bacharach-inc.com
Printed in U.S.A.
® Registered Trademark
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bacharach OXOR II 19-7037
Summary of Contents for Bacharach OXOR II 19-7037

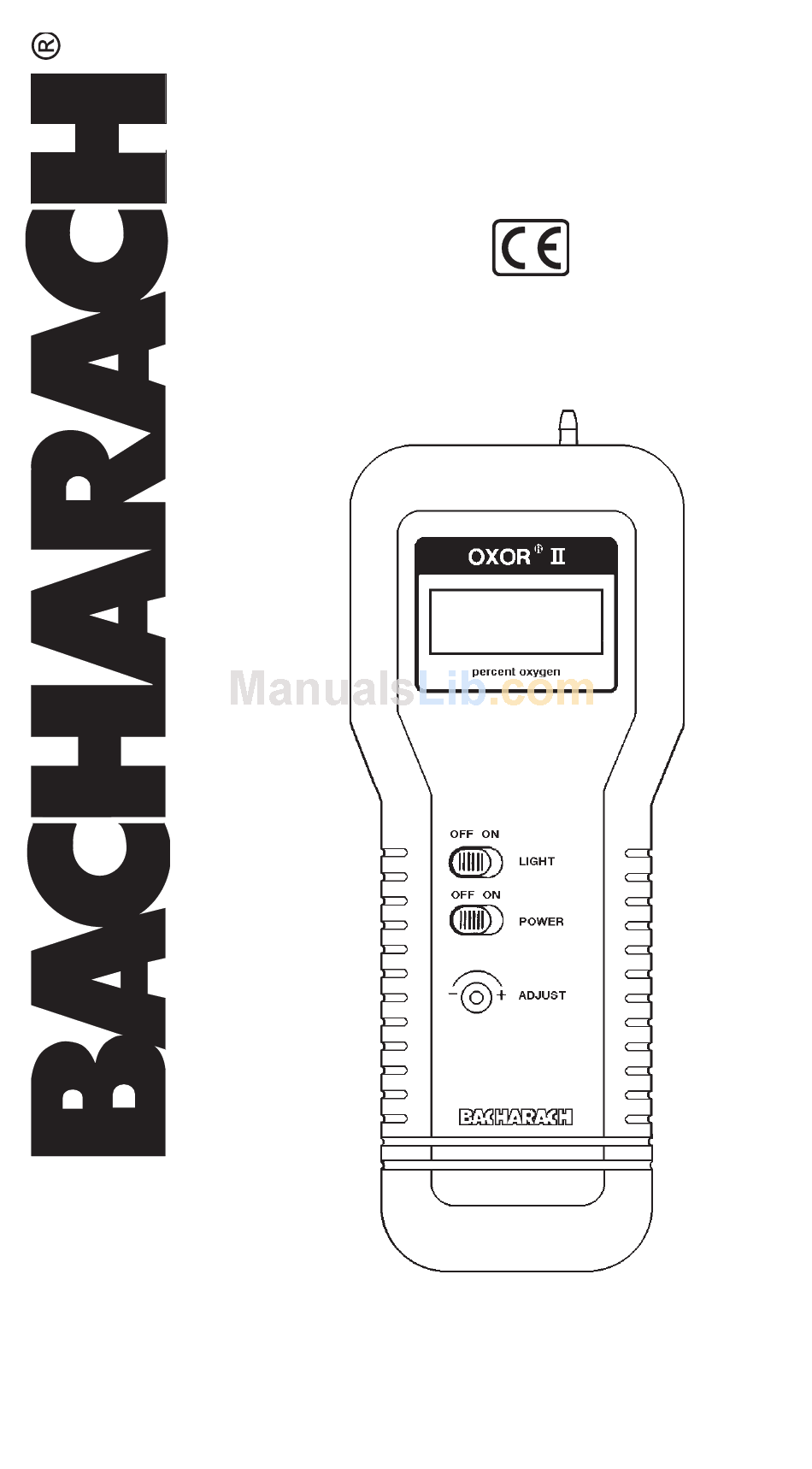

- Page 1 INSTRUCTION 19-9126 Portable Oxygen Analyzer Part No. 19-7037 & 19-7044 Rev. 6 – October 1999 Bacharach, Inc. 621 Hunt Valley Circle, New Kensington, PA 15068 PH: 724-334-5000 • FAX: 724-334-5001 • Web: www.bacharach-inc.com E-mail: help@bacharach-inc.com Printed in U.S.A. ® Registered Trademark...
-
Page 2: Warranty
Bacharach Inc.’s reasonable satisfaction to have been defective; provided that written notice of the defect shall have been given by Buyer to Bacharach Inc. within one (1) year after the date of delivery of this Product by Bacharach, Inc. - Page 3 If, after reading the information in this manual, the user has questions regarding the operation, application or maintenance of the instrument, supervisory or training assistance should be obtained before use. Assistance is available by calling your nearest Bacharach Service Center. Figure 1. Oxor II...
-
Page 4: Technical Characteristics
TECHNICAL CHARACTERISTICS Display Range ... 0-25% O Accuracy ... ±0.8% O Response Time ... 90% of final value within 40 sec. Battery Requirements ... 1.5 V, “C” cells, Qty. 4 Operating Time* ... 14-16 hours, alkaline cells Operating Temp. Range ... 23 to 104°F (-5 to 40°C) Relative Humidity ... -
Page 5: Probe Installation
If batteries are accidently installed in the wrong polarity, a positive temperature coefficient (PTC) thermistor will protect the instrument’s electronic circuitry. The instrument will operate once batteries are properly installed and the PTC thermistor is allowed to cool. Probe Installation Install the probe by sliding the end of its hose over the gas inlet port on the top right side of the instrument as shown in Figure 3. -
Page 6: Operation
OPERATION To operate the Oxor II, you simply . . . • Set its POWER switch to ON, • Wait for the instrument to warm up (approx. 1 minute), • Span the display (if necessary), • Take a gas sample. Detailed operating procedures are presented below: Power ON/OFF Turn on the instrument by sliding its POWER... -
Page 7: Using The Strap
Using the Strap The instrument's elastic strap allows the unit to be either hand-held, or hung on nearby objects. By sliding your hand between the instrument and its elastic strap, you can hold onto the Oxor II with a minimum of effort. The instrument's front panel slide switches can then be actuated by your thumb for one- handed operation. -
Page 8: Long Term Storage
DO NOT use the instrument until it has been serviced by an authorized Bacharach Service Center. NOTE: DO NOT use this simple response check as a sub- stitute for ensuring the instrument is properly calibrated. -
Page 9: Parts List
Bacharach, Inc. 621 Hunt Valley Circle New Kensington, PA 15068 Phone: 724-334-5051 Fax: 724-334-5723 E-mail: help@bacharach-inc.com Canada Bacharach of Canada, Inc. 250 Shields Court, Unit #3 Markham, Ontario L3R 9W7 Canada Phone: 905-470-8985 Fax: 905-470-8963 E-mail: bachcan@idirect.com México Bacharach de México Playa Regatas No. - Page 10 Notes:...
