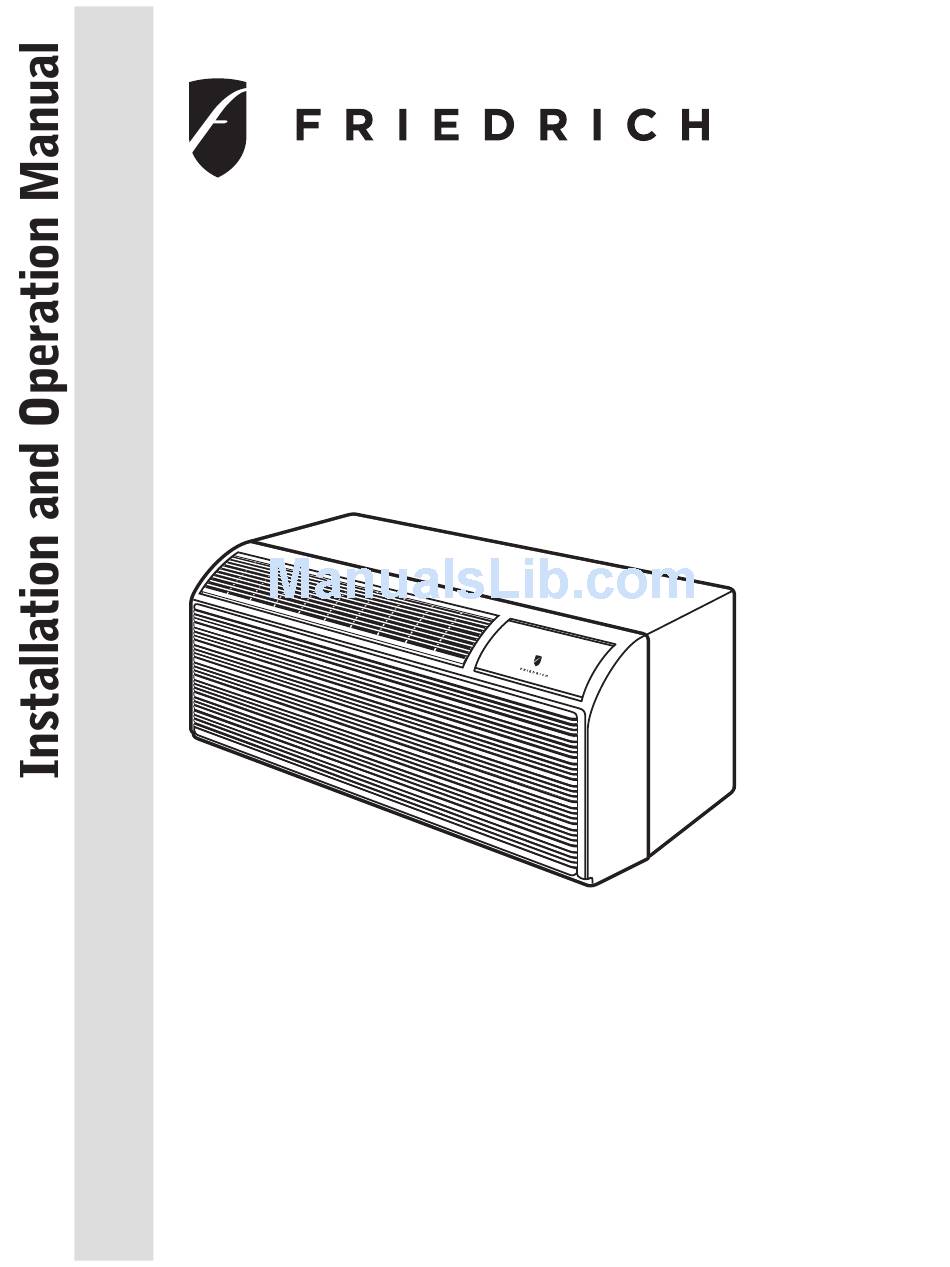

- Page 1 PTAC Packaged Terminal Air Conditioners & Heat Pumps 920-087-09 (12/10)
-
Page 2: Table Of Contents
PXDR10.Drain.Kit.Installation.Instructions.(optional.for.new.construction)..10 External.Drain.(for.new.construction.or.unit.replacement)... 11 PXGA.Standard.Grille.Installation.Instructions..12 Electrical.Wiring.for.265.Volt.Models..14 Chassis.Install.Preparation... 16 Chassis.Installation... 18 How.To.Connect..19 Friedrich.PTAC.Digital.Control.and.Unit.Features... 20 System.Configuration..22 Digital.Control.User.Input.Configuration..23 Digital.Control.Operation... 24 Remote.Control.Thermostat.Installation... 25 Remote.Thermostat.and.Low.Voltage.Control.Connections... 25 Final.Inspection.&.Start-up.Checklist... 27 Routine.Maintenance... -
Page 3: Congratulations
Only use gauge sets designed for use with R410A. Do not use standard R22 gauge sets. Here are some suggestions to help you use your new Friedrich most efficiently: Carefully.read.and.follow.the.installation.instructions. 2. Make.sure.the.unit.is.the.right.capacity.for.the.area.being.cooled.. An. undersized. unit. makes. the. unit. work. too. hard,. using. more. -
Page 4: General.specifications
WALL SLEEVE DISCHARGE GRILLE FILTERS RETURN AIR GRILLE MODEL NUMBER Series PD = Friedrich Digital PTAC System X = Accessory E = Cooling with or without electric heat H = Heat Pump with Auxiliary Heat Nominal Capacity 07 = 7,000 Btuh... -
Page 5: Ptac.installation.recommendations
For.major.obstructions.such. • as. a. solid. fence,. wall. or. other. heat. rejecting. device. like. a. condensing. unit,. a. minimum. distance. of. 36". should.be.kept. 12" MINIMUM, MINOR 36" MINIMUM, MAJOR The.above.suggestions.are.for.reference.only.and.do.not.represent.all.possible.installations...Please.contact.Friedrich.for.information.regarding.affects.of.other. installation.arrangements...By.following.these.simple.recommendations.you.can.be.confident.that.your.Friedrich.PTAC.will.provide.years.of.worry.free.operation. TYPICAL WINDOW 60" 60" VERTICAL MINIMUM BETWEEN PTACs VIEW: OUTSIDE BUILDING ELEVATION TYPICAL BUILDING ( PLAN VIEW ) 36"... -
Page 6: Wall.sleeve.installation.instructions.(Pdxws)
NOTE:. Insure.that.the.unit.is.only.installed.in.a.wall.structurally.adequate.to.support.the.unit.including.the.sleeve,.chassis.and.accessories...If.the.sleeve. projects.more.than.8".into.the.room,.a.subbase.or.other.means.of.support.MUST.be.used...Please.read.these.instructions.completely.before. attempting.installation. WARNING Falling Object Hazard Not following Installation Instructions for mounting your air conditioner can result in property damage, injury, or death. For Deep Wall Installation (Greater than 13 1/4") See Page 9 The.following.instructions.apply.ONLY.to.walls.less.than.13.¼".in.depth.. 1. The.PXDR10.Drain.Kit.(optional.for.new.construction).see.page.10. if.applicable,.must.be.installed.before.the.wall.sleeve.is.installed. -
Page 7: Alternate.wall.installations
Alternate Wall Installations Figure 4 Panel Wall OPTIONAL SUBBASE LEVELING SCREW Figure 5 Frame and Brick Veneer WOOD FRAME OPTIONAL SUBBASE LEVELING SCREW NOTE:. Follow.all.wall.system.manufacturer.installation.instructions...For.sunrooms.and.modular.buildings,.adhere.to.their.installation.instructions.for. supporting.and.sealing.sleeve.to.their.frames...All.wall.and.window/wall.installations.must.provide.for.proper.drainage...In.applications.where.the. drain.holes.on.the.PTAC.wall.sleeve.are.not.exposed.beyond.the.wall.an.internal.drain.system.is.recommended...It.is.the.installer's.responsibility. to.ensure.there.is.adequate.drainage.for.the.PTAC.unit. Figure 6 Curtain Wall CASE FLANGE (BY OTHERS) OPTIONAL SUBBASE LEVELING SCREW FRP003 Figure 7 Block and Brick Veneer 1/4"... - Page 8 Figure 8 Wall Sleeve Attachment MOUNTING HOLES PLASTIC ANCHORS Figure 9 Dimensions ALTERNATE FASTENING METHODS WALL (Field Supplied) SLEEVE WOOD SCREW TOGGLE BOLT EXPANSION ANCHOR BOLT SCREWS ¼" MIN. Dimension* No Accessories With Subbase With Lateral Duct Wall Sleeve Tilt * If more than one accessory is to be used, use the maximum dimension.
-
Page 9: Mounting Screw Holes
5. Drill.two.3/16".holes.through.each.side.of.the.sleeve.approximately. 4".from.top.and.4".from.bottom.of.sleeve...Screw.four.#10.x.1". screws. (included). or. appropriate. fasteners. for. your. installation,. through.the.holes.in.the.sides.of.the.wall.sleeve. 6. Apply.sealant.around.the.wall.sleeve.where.it.projects.through.the. inside.and.outside.wall.surfaces...Apply.the.sealant.to.the.screw. heads.or.the.tops.of.the.fasteners.used.in.Step.#5. Figure 10 Lintel Installation JACK STUDS MAIN STUDS NOTE: Construct wall opening to comply with all applicable building codes. One-Piece Deep Wall Sleeve Installation (PDXWSEXT) If.the.wall.is.thicker.than.13.1/4”.a.deep.wall.sleeve.or.wall.sleeve.extension. -
Page 10: Pxdr10.Drain.kit.installation.instructions.(Optional.for.new.construction)
PXDR10 Drain Kit Installation Instructions (optional for new construction) NOTE:. Determine.whether.drain.will.be.located.within.the.wall,.on.the. indoor.side,.or.will.drain.to.the.exterior.of.the.building...Follow. appropriate.instructions.below.depending.on.your.particular. type.of.installation. Internal Drain NOTE:. If.installing.an.internal.drain,.you.MUST.install.a.drain.kit.on. the.wall.sleeve.before.the.wall.sleeve.is.installed. 1. Refer. to. Figure. 11. and. locate. the. drain. within. the. “Preferred”. area.of.best.drainage...Maintain.at.least.a.½”.clearance.from.the. embossed.area. 2. Using.the.mounting.plate.with.the.½”.hole.as.a.template,.mark. and. drill. two,. 3/16”. mounting. holes. and. a. ½”. drain. hole. in. the. sleeve.bottom. -
Page 11: External.drain.(For.new.construction.or.unit.replacement)
External Drain (for new construction or unit replacement) When.using.an.external.drain.system,.the.condensate.is.removed.through. either.of.two.drain.holes.on.the.back.of.the.wall.sleeve...Select.the.drain. hole.which.best.meets.your.drainage.situation.and.install.the.drain.kit.. Seal.off.the.other.with.a.cover.plate. Drain Tube Installation (See Figure 12) 1. Peel.the.backing.tape.off.the.gaskets.and.apply.the.sticky.side. to.one.cover.plate.and.one.mounting.plate.as.shown.in.Details. A.and.B. 2. Place.the.drain.tube.through.the.gasket.and.the.mounting.plate. with.the.flange.toward.the.wall.sleeve. 3. Attach.the.drain.tube.assembly.to.one.of.the.two.drain.holes.at.the. rear.of.the.wall.sleeve...The.large.flange.on.the.mounting.plate.is. positioned.at.the.bottom.of.the.sleeve.facing.toward.the.sleeve,. Detail.B...When.the.drain.tube.is.positioned.at.the.desired.angle,. tighten.the.screws.. Figure 12 Drain Kit Installation MOUNTING PLATE FOAM GASKET ½” O.D. TUBE DETAIL B NOTE:. -
Page 12: Pxga.standard.grille.installation.instructions
Plastic Grommets #8 x ⅜" Sheet Metal Screws 5. Insert.the.remaining.screws.into.the.remaining.holes.and.tighten. securely. WARNING Falling Object Hazard Not following Installation Instructions for mounting your air conditioner can result in property damage, injury, or death. WEATHERBOARD CENTER SUPPORT STANDARD GRILLE PLASTIC HANDLES WALL... -
Page 13: Electrical Shock Hazard
Code and all local codes which have jurisdiction. Failure to do so can result in property damage, personal injury and/or death. B. Power Cord Information (230/208V models only) All. Friedrich. 230/208V. PTAC. units. are. shipped. from. the. factory. with. a. Leakage.Current.Detection.Interrupter.(LCDI).equipped.power.cord...The. LCDI.device.meets.the.UL.and.NEC.requirements.for.cord.connected.air. conditioners.effective.August.2004. To.test.your.power.supply.cord: 1. Plug.power.supply.cord.into.a.grounded.3.prong.outlet. -
Page 14: Electrical.wiring.for.265.Volt.models
Model Heater kW PDE07K PDE/PDH07K PDE09K PDE/PDH09K PDE12K PDE/PDH12K PDE15K PDE/PDH15K PDE/PDH07R PDE/PDH09R PDE/PDH12R PDE/PDH15R Electrical Wiring for 265 Volt Models Power Cord Installation All.265V.PTAC/PTHP.units.come.with.a.factory.installed.non-LCDI. power.cord.for.use.in.a.subbase..If.the.unit.is.to.be.hard-wired.refer.to. the.instructions.below. NOTE:. It. is. recommended. that. the. PXSB. subbase. assembly,. the. PXCJA.conduit.kit.(or.equivalent).be.installed.on.all.hardwire. units...If.installing.a.flush-floor.mounted.unit,.make.sure.the. chassis. can. be. removed. from. the. sleeve. for. service. and. maintenance. - Page 15 Figure 15 TO CHASSIS JUNCTION EXPOSE WIRES (1.0 IN.) TRIM HARNESS TO LENGTH STRIP WIRE ENDS (0.5 IN.) TO WALL JUNCTION 3. Route. the. cut. ends. of. harness. through. the. conduit. connector. assembly.and.flex.conduit.sleeve...Be.sure.to.use.the.supplied. conduit. bushing. to. prevent. damage. to. the. cord. by. the. conduit.. The.
-
Page 16: Chassis.install.preparation
2. Remove. the. front. cover. contained. in. a. protective. plastic. bag. from. chassis.. . Remove. the. bag. and. dispose. of. it. properly.. . If.the.control.door.is.not.installed,.follow.these.steps: From.the.front.cover,.slide.the.right.control.door.pin.into.the. hole.on.the.right.side.of.the.front.cover. Slide.the.left.door.pin.into.the.hole.on.the.left.side.of.the. front.cover.opening. Snap.cover.into.place. NOTE:. To.avoid.breaking.the.door.or.hinge.pins,.do.not.apply.excessive. force.when.installing. Figure 19 WALL SLEEVE INSERT PIN IN THIS LOCATION FRP015 IMPORTANT: .When.installing.a.Friedrich.PTAC.into.an.existing.sleeve,. it.is.important.to.ensure.that.the.unit.is.installed.completely...Inspection. of.the.air.seal.between.the.condenser.air.baffles.and.around.the.indoor. mounting.flange.is.recommended. In.some.cases.additional.gaskets.or.baffling.may.be.required. CONTROL DOOR FRP016... - Page 17 CAUTION Unit Damage Hazard Failure to follow this caution may result in equipment damage or improper operation. Failure to remove shipping tape and screw will prevent fresh air vent door from opening and may result in damage to vent door cable. Carefully.remove.shipping.tape.from.the.front.panel.and.vent.door..
-
Page 18: Chassis.installation
5. Plug. the. cord. (if. applicable). into. the. appropriate. receptacle.. . Restore.power.to.the.unit. FRP024 CAUTION Excessive Weight Hazard Use two or more people when installing your air conditioner. Failure to do so can result in back or other injury. NOTICE... -
Page 19: How.to.connect
How To Connect IMPORTANT: Please read following electrical safety data carefully. WARNING Electrical Shock and/or Unit Operation and Damage Hazard Failure to follow this warning could result in personal injury or death and/or unit damage. Follow the National Electrical Code (NEC) or local codes and ordinances. -
Page 20: Friedrich.ptac.digital.control.and.unit.features
Friedrich PTAC Digital Control and Unit Features The.new.Friedrich.digital.PTAC.has.state.of.the.art.features.to.improve.guest.comfort,.indoor.air.quality.and.conserve.energy...Through.the.use.of.specifically. designed.control.software.for.the.PTAC.industry.Friedrich.has.accomplished.what.other.Manufacturer’s.have.only.attempted.–.a.quiet,.dependable,.affordable. and.easy.to.use.PTAC. Below.is.a.list.of.standard.features.on.every.Friedrich.PTAC.and.their.benefit.to.the.owner. By.digitally.monitoring.desired.room.temperature.the.room.is.controlled.more.precisely.than.conventional.systems... Digital Temperature The.large,.easy.to.read.LED.display.can.show.either.set-point.or.actual.room.temperature.as.selected.by.owner. Readout When.the.unit.is.powered.off.the.unit.can.be.returned.directly.to.heating.or.cooling.mode.by.pressing.the.‘Heat’.or. One-Touch.Operation ‘Cool’.buttons.without.the.confusing.power.up.sequence.of.some.controls...One-touch.control.takes.guesswork.out. of.unit.control.delivering.a.more.enjoyable.experience.and.eliminating.front-desk.calls. The.Friedrich.PTAC/PTHP.units.feature.three.fan.speeds.for.the.user.to.select.from...This.allows.the.user.to. Three.Fan.Speeds properly.match.the.amount.of.airflow.for.their.comfort.level.and.also.deliver's.quiet.performance. By.having.separate.control.buttons.and.indicators.for.both.fan.and.mode.settings.the.Friedrich.digital.control. Individual.Mode.and eliminates.the.confusion.of.previous.digital.PTACs...The.accurate.temperature.setting.provides.greater.guest. Fan.Control.Buttons comfort.than.other.systems. The.fan.start.and.stop.delays.prevent.abrupt.changes.in.room.acoustics.due.to.the.compressor.energizing.or. Quiet.Start/Stop stopping.immediately...Upon.call.for.cooling.or.heating.the.unit.fan.will.run.for.five.seconds.prior.to.energizing.the. Fan.Delay compressor...Also,.the.fan.off.delay.allows.for.“free.cooling”.by.utilizing.the.already.cool.indoor.coil.to.its.maximum. capacity.by.running.for.30.seconds.after.the.compressor. When.connected.to.a.wall.thermostat.the.user.can.select.from.high.or.low.fan.speed.at.the.thermostat,.unlike. Two-Speed.Wall. competitive.models.that.have.only.one.speed.selection...This.allow.more.comfortable.and.quieter.operation... Thermostat.Mode Requires.the.use.of.Friedrich.remote.thermostat.RT6.or.equivalent.thermostat.with.two.speed.fan.output. Some.applications.require.the.use.of.a.wall.mounted.thermostat...All.new.Friedrich.PTACs.may.be.switched.from. - Page 21 Heat.Pump.Mode usual.delay.associated.with.heat.pump.units. The.digital.control.monitors.indoor.conditions.to.ensure.that.the.room.temperature.is.within.five.degrees.of.the.setpoint... Even.Heat If.necessary.the.unit.will.cycle.the.electric.heat.to.maintain.the.temperature...This.feature.ensures.guest.comfort.by. Monitoring delivering.the.heating.benefits.of.an.electric.heater.while.maintaining.the.efficiency.benefits.of.a.heat.pump. The.owner.may.choose.between.fan.cycling.or.fan.continuous.mode.based.on.property.preference...(Note:.Even.heat. monitoring.and.quiet.start/stop.fan.delay.only.operate.in.fan.cycle.mode).Fan.continuous.mode.is.used.to.keep.constant. Separate.Heat/Cool.. airflow.circulation.in.the.room.during.all.times.the.unit.is.‘ON’...Fan.cycle.will.conserve.energy.by.only.operating.the. Fan.Cycle.Control fan.while.the.compressor.or.electric.heater.is.operating...The.ability.to.set.the.fan.cycling.condition.independently. between.heating.and.cooling.mode.will.increase.user.comfort.by.allowing.the.choice.of.only.constantly.circulating. air.in.the.summer.or.winter.time...Unlike.other.PTAC.brands.that.only.allow.one.selection. In.the.event.of.a.compressor.failure.in.heat.pump.mode.the.compressor.may.be.locked.out.to.provide.heat.through.the. Emergency.Heat resistance.heater...This.feature.ensures.that.even.in.the.unlikely.event.of.a.compressor.failure.the.room.temperature.can. Override be.maintained.until.the.compressor.can.be.serviced. All.Friedrich.digital.PTACs.have.low.voltage.terminals.ready.to.connect.a.desk.control.energy.management.system... Desk.Control Controlling.the.unit.from.a.remote.location.like.the.front.desk.can.reduce.energy.usage.and.requires.no.additional. Ready accessories.on.the.PTAC.unit. The.frost.sensor.protects.the.compressor.from.damage.in.the.event.that.airflow.is.reduced.or.low.outdoor.temperatures. Indoor.Coil.Frost cause.the.indoor.coil.to.freeze...When.the.indoor.coil.reaches.30°.F.the.compressor.is.disabled.and.the.fan.continues.to. Sensor operate.based.on.demand...Once.the.coil.temperature.returns.to.45°.F.the.compressor.returns.to.operation. The.new.Friedrich.PD.series.units.feature.an.indoor.fan.system.design.that.reduces.sound.levels.without.lowering.airflow. Ultra-Quiet.Air and.preventing.proper.air.circulation. System The.Friedrich.PTAC.benefits.from.quality.components.and.extensive.development.to.ensure.a.quiet,.efficient.and. High.Efficiency dependable.unit. Friedrich's.new.dual.motor.design.allows.for.the.quietest.and.most.efficient.units.yet. Dual.Motor High.efficiency.rotary.compressors.are.used.on.all.Friedrich.PTACs.to.maximize.durability.and.efficiency.
-
Page 22: System.configuration
System Configuration Fresh Air Vent Control The.vent.control.lever.is.located.on.the.left.side.of.the.unit,.behind.the. front.panel. NOTE:. The. vent. door. shipping. hardware. must. be. removed. before. using.the.vent.control.lever...See.page.17,.Figure.21,.(Remove. Shipping.Screw.from.Vent.Door.if.present). When.vent.door.is.set.to.CLOSE,.only.the.air.inside.the.room.is.circulated. and.filtered,.See.Figure.28. When.vent.door.is.set.to.OPEN,.some.outdoor.air.will.be.drawn.into.room. This.may.reduce.heating.or.cooling.efficiency. Adjusting Air To.adjust.air.direction: 1. Remove.front.panel..See.Figure.22. 2. Remove.louver.screws.that.hold.louver.insert.in.place.(from.back. side.of.front.panel)..See.Figure.29. 3. Turn.louver.insert.and.rotate.180°..See.Figure.30. 4. Replace.louver.insert. 5. Replace.screws.and.front.panel. Figure 30 Adjusting Louvers AIR DISCHARGE OUTWARD (Default) Figure 28 Air Vent Control Location... -
Page 23: Digital.control.user.input.configuration
Digital Control User Input Configuration The.adjustable.control.dip.switches.are.located.at.the.lower.left.hand.portion.of.the.digital.Smart.Center..The.inputs.are.only.visible.and.accessible.with.the. front.cover.removed.from.the.PTAC. Dip Switch Setting Emergency Heat Override – Switch 1 In.the.unlikely.event.of.a.compressor.failure.a.heat.pump.unit.may. be.switched.to.operate.in.only.the.electric.heat.mode.until.repairs. can.be.made..Moving.Dip.Switch.1.to.‘ON’. Wall Thermostat Switch 2 In.order.to.enable.the.wall.thermostat.move.Dip.Switch.to.'ON'. Fan Cycle Control – Switch 3-4 All.PTACs.are.shipped.from.the.factory.with.Dip.Switch.3-4.in. the.‘OFF’.position...In.this.position.the.cooling.fan.cycle.will.run. continuously.providing.air.circulation.during.the.warm.months... The.heating.fan.cycle.is.set.to.'cycle'.on.and.off...The.fan.may. be.set.to.'continuous'.mode.by.switching.Dip.Switch.3.to.'ON'. position. Figure 31 Dip Switches DIP SWITCH Switch Description Function... -
Page 24: Digital.control.operation
Digital Control Operation Figure 32 Digital Control Panel °F vs. °C Display The. unit. is. factory. configured. to. display. all. temperatures. in. degrees. Fahrenheit.(°.F)..To.switch.to.degrees.Celsius.press.the.‘Fan.Only’.and. ‘Low.Fan’.buttons.simultaneously.for.three.seconds..The.display.will.show. a.‘C’.as.acknowledgement.of.the.change...To.revert.back.to.°.F.press.the. ‘Fan.Only’.and.‘Low.Fan’.buttons.simultaneously.for.three.seconds..The. display.will.show.an.‘F’.as.acknowledgement.of.the.change. Cooling Mode Pressing. the. ‘Cool’. button. while. the. unit. is. in. any. mode,. including. off,. will.put.the.unit.into.cooling.mode..Adjust.the.temperature.readout.to.the. -
Page 25: Remote.control.thermostat.installation
2. Where.it.can.be.exposed.to.direct.sunlight.or.heat,.such.as.the.sun,. a.lamp,.fireplace,.or.any.ther.temperatureradiating.object.which. may.cause.a.false.reading. 3. Close.to.or.in.the.direct.airflow.of.supply.registers.and/or.return. air.grilles. 4. Any. areas. with. poor. air. circulation,. such. as. a. corner,. behind. a. door,.or.an.alcove. Remote Thermostat and Low Voltage Control Connections Remote Thermostat All.Friedrich.PD.model.PTAC.units.are.factory.configured.to.be.controlled. by.either.the.chassis.mounted.Smart.Center.or.a.24V.remote.wall.mounted. thermostat..The.thermostat.may.be.auto.or.manual.changeover.as.long.as. the.control.configuration.matches.that.of.the.PTAC.unit. NOTE:. All.PDE.models.require.a.single.stage.cool,.single.stage.heat. thermostat...All.PDH.models.require.a.single.stage.cool,.dual. stage.heat.thermostat.with.an.O.reversing.valve.control...The. Friedrich.RT6.thermostat.can.be.configured.for.either.model. Figure 33... -
Page 26: Desk Control Terminals
Desk Control Terminals The.Friedrich.PD.model.PTAC.has.built-in.provisions.for.connection.to.an. external.switch.to.control.power.to.the.unit..The.switch.can.be.a.central. desk.control.system.or.even.a.normally.open.door.switch. For.desk.control.operation.connect.one.side.of.the.switch.to.the.D1.terminal. and.the.other.to.the.D2.terminal.(See.Figure.31,.Page.23)..Whenever.the. switch.closes.the.unit.operation.will.stop. NOTE:. The.desk.control.system.and.switches.must.be.field.supplied. Energy Management Sometimes.known.as.Front.Desk.Control,.an.input.is.provided.so.that.the. unit.can.be.manually.disabled.from.a.remote.location...If.the.unit.detects. 24Vac. on. this. input,. it. will. automatically. turn. itself. off.. . If. no. voltage. is. detected.on.the.input.,.the.unit.will.run.normally. NOTE:.. It.is.the.installer's.responsibility.to.ensure.that.all.control.wiring. connections. are. made. in. accordance. with. the. installation. -
Page 27: Final.inspection.&.Start-Up.checklist
Secure.components.and.accessories,.such.as.the.chassis,.decorative. front.cover.and.control.door. q. Start.the.unit.and.check.for.proper.operation.of.all.components.in. each.mode.of.operation...Instruct.the.owner.or.operator.of.this.units. operation,.and.the.manufacturer’s.recommended.routine.maintenance. schedule. NOTE:. A.log.for.recording.the.dates.of.maintenance.and/or.service. is.recommended. q. Present.the.owner.or.operator.of.the.equipment.with.the.Installation. &.Operation.manual,.all.accessory.installation.instructions,.and.the. name,.address.and.telephone.number.of.the.Authorized.Friedrich. Warranty. Service. Company. in. the. area. for. future. reference. if. necessary. however,.you.must.be.careful.not.to.bend.the.aluminium.fin.pack...Use.a. sweeping.up.and.down.motion.in.the.direction.of.the.vertical.aluminium. fin.pack.when.pressure.cleaning.coils. NOTE:. It.is.extremely.important.to.insure.that.none.of.the.electrical. and/or.electronic.parts.of.the.unit.get.wet..Be.sure.to.cover.all.electrical. components.to.protect.them.from.water.or.spray. Decorative Front The.decorative.front.and.discharge.air.grille.may.be.cleaned.with.a.mild. soap.or.detergent..Do.NOT.use.solvents.or.hydrocarbon.based.cleaners. such.as.acetone,.naphtha,.gasoline,.benzene,.etc.,.to.clean.the.decorative. -
Page 28: Basic.troubleshooting
● Allow additional time too cool a very hot room ● Do not try to operate your air conditioner in the cooling in the cooling mode when the outside temperature is below 60º F. The unit will not cool properly, and the unit may be damaged. -
Page 29: Service.&.Assistance
● The use of higher efficiency components in your new air conditioner may result in the unit running longer than you feel it should . This may be more apparent, if it replaced an older, less efficient, model. The actual energy us- age, however, will be significantly less when compared to older models. -
Page 30: Accessories
CONDENSATE DRAIN KIT.Attaches.to.the.bottom.of.the.wall.sleeve.for.internal. PXDR10 draining.of.condensate.or.to.the.rear.wall.sleeve.flange.for.external.draining.. Recommended.on.all.units.to.remove.excess.condensate..Packaged.in.quantities. of.ten. DECORATIVE SUBBASE.Provides.unit.support.for.walls.less.than.six.inches.. PXSB thick...Includes.leveling.legs,.side.filler.panels.and..mounting.brackets.for.electri- cal.accessories..Accepts.circuit.breaker,.power.disconnect.switch,.or.conduit.kit. DIGITAL REMOTE WALL THERMOSTAT Single.stage.cool,.single.stage.heat. for.PDE.models.or.single.stage.cool,.dual.stage.heat.for.PDH.model.thermostat. features.high/low.fan.speed.switch..Thermostat.is.hard.wired.and.can.be.battery. powered.or.unit.powered...Features.backlit.display.and.multiple.configuration. modes...For.use.on.PD-series.Friedrich.PTACs.and.Vert-I-Paks. REMOTE THERMOSTAT ESCUTCHEON KIT.This.kit.contains.ten.escutcheons. PDXRTA that.can.be.placed.over.the.factory.control.buttons.when.a.remote.wall.mounted. thermostat.is.used..The.escutcheon.directs.the.guest.to.the.wall.thermostat.for. operation.and.retains.the.LED.window.to.display.error.codes.and.diagnostic. information. SLEEVE EXTENSION RETROFIT KIT.Galvanized.zinc.coated.steel,.2.4".sleeve. PXSE extension.attached.to.the.room.side.of.the.sleeve.to.allow.for.the.installation.of.a. PD-Series.Friedrich.PTAC.in.a.T-Series.sleeve. LATERAL DUCT ADAPTER.Attaches.to.the.PTAC/PTHP.unit.and.provides.a. PDXDAA transition.to.direct.up.to.35%.of.the.total.CFM.to.a.secondary.room,.either.left.or. - Page 31 New Construction Accessories CONDUIT KIT WITH JUNCTION BOX.Hard.wire.conduit.kit.with.junction.box.for. PXCJA 208/230V.and.265V.units.(subbase.not.required)..Kit.includes.a.means.of.quick. disconnect.for.easy.removal.of.the.chassis...*Required.for.265V.installations. REPLACEMENT FILTER PACK.These.are.original.equipment.return.air.filters... PXFTA They.are.reusable.and.can.be.cleaned.by.vacuuming,.washing,.or.blowing.out,. and.are.sold.in.convenient.ten-packs...(Two.filters.per.chassis).
- Page 32 Any defective part to be replaced must be made available to FRIEDRICH in exchange for the replacement part. Reasonable proof must be presented to establish the date of install, otherwise the beginning date of this certificate will be considered to be our shipment date plus sixty days. Replacement parts can be new or remanufactured.
- Page 33 THIS PAGE INTENTIONALLY LEFT BLANK.
- Page 34 THIS PAGE INTENTIONALLY LEFT BLANK.
- Page 35 THIS PAGE INTENTIONALLY LEFT BLANK.
- Page 36 Friedrich Air Conditioning Co. 10001 Reunion Place, Suite 500 San Antonio, Texas 78216 800.541.6645 www.friedrich.com...
