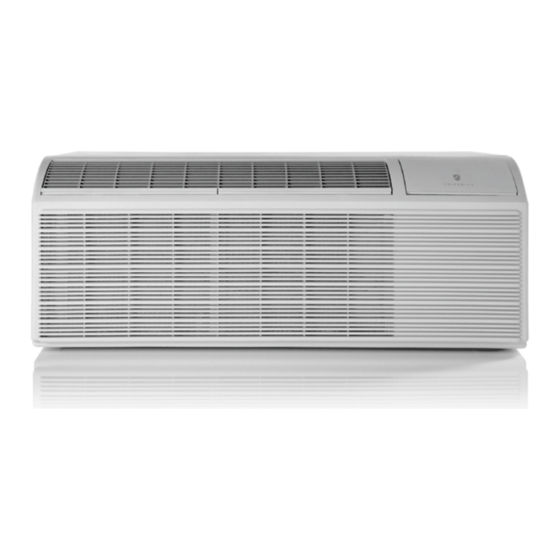

Product Profile
PACKAGED TERMINAL
AIR CONDITIONERS
COOL ONLY / hEAT PuMPS / ELECTRIC hEAT
Features
Tangential blower wheel for fast, even
air distribution
Two permanently-lubricated fan motors
for quiet operation
EERs up to 12.0; COPs up to 3.4
3 fan speeds heating and cooling
Separate thermostat settings (limiting)
for cooling and heating modes allow for
improved comfort
Internal diagnostic program
Remote thermostat operation
Desk control ready
Compatible with energy management
systems
Reversible indoor air louvers
Antimicrobial air filters
Diamonblue anticorrosion treatment
Modular design ensures easy access to
key components
Fits standard PTAC sleeve without
added cost of a baffle kit
5 Year limited warranty
Q U A L I T Y
Advertisement
Table of Contents
Related Manuals for Friedrich PDH07K3SF
Summary of Contents for Friedrich PDH07K3SF
- Page 1 Product Profile PACKAGED TERMINAL AIR CONDITIONERS COOL ONLY / hEAT PuMPS / ELECTRIC hEAT Features Tangential blower wheel for fast, even air distribution Two permanently-lubricated fan motors for quiet operation EERs up to 12.0; COPs up to 3.4 3 fan speeds heating and cooling Separate thermostat settings (limiting) for cooling and heating modes allow for improved comfort...
-
Page 2: Digital Control Features
OPERATION calls. INDIvIDuAL MODE By having separate control buttons and indicators for both fan and mode settings, the Friedrich digital & FAN CONTROL control eliminates the confusion of previous digital PTACs. The accurate temperature setting provides BuTTONS greater guest comfort than other systems. -
Page 3: General Product Features
FILTERED FRESh Friedrich PTAC units are capable of introducing up to 75 CFM of outside air into the conditioned space. AIR INTAKE The outdoor air passes through a washable mesh screen to prevent debris from entering the airstream. -
Page 4: Chassis Specifications
Chassis Specifications PDE Series PDE07K PERFORMANCE DATA: COOLING BTUh 7700/7600 POWER (WATTS) 640/620 12.0/12.2 DEHUMIDIFICATION (pints/hr) SENSIBLE HEAT RATIO 0.84 ELECTRICAL DATA: VOLTAGE (1 PHASE, 60 Hz) 230/208 VOLT RANGE 253-187 CURRENT (AMPS) 2.8/3.0 POWER FACTOR 0.97 Compressor LRA 19.0 Compressor RLA Fan motor horsepower 0.024... - Page 5 Cooling & Heating Performance PDE 230V - Extended Cooling Performance BTUh 9055 8709 WATTS PDE07 AMPS 0.53 0.72 BTUh 10584 10179 WATTS PDE09 AMPS 0.49 0.66 BTUh 14112 13572 12564 WATTS PDE12 AMPS 0.49 0.66 BTUh 17640 16965 15705 WATTS 1248 1268 PDE15...
- Page 6 Cooling & Heating Performance PDE 265V - Extended Cooling Performance BTUh 9055 8709 WATTS PDE07 AMPS 0.53 0.72 BTUh 10584 10179 WATTS PDE09 AMPS 0.49 0.66 BTUh 14112 13572 WATTS PDE12 AMPS 0.49 0.66 BTUh 17640 16965 WATTS 1248 1268 PDE15 AMPS 0.47...
-
Page 7: Electric Heat Data
Electric Heat Data Electric Heat Data PDE07K0 HEATER WATTS 0 Kw VOLTAGE 230/208 HEATING BTUh HEATING CURRENT (AMPS) MINIMUM CIRCUIT AMPACITY BRANCH CIRCUIT FUSE (AMPS) Electric Heat Data PDE09K0 HEATER WATTS 0 Kw VOLTAGE 230/208 HEATING BTUh HEATING CURRENT (AMPS) MINIMUM CIRCUIT AMPACITY BRANCH CIRCUIT FUSE (AMPS) Electric Heat Data... - Page 8 Model Identification / Components / Dimensions PTAC/PTHP Model Identification Guide Series PD = Friedrich Digital PTAC System X = Accessory E = Cooling with or without electric heat H = Heat Pump with Auxiliary Heat NOMINAL CAPACITY 07 = 7,000 Btu...
- Page 9 PTAC DATE FOR REFERENCE VOLTAGE FRIEDRICH MODEL Fresh air damper control to bring in fresh outside air when desired Washable, antimicrobial air filter Service error code memory storage Emergency heat override...
-
Page 10: Installation
Installation Typical Wall Sleeve Installation (PDXWS) MAIN STUDS JACK STUDS JACK STUDS MAIN STUDS NOTE: Construct wall opening to comply with all applicable building codes. Deep Wall Sleeve Installation Width of Wall LINTEL TO SUPPORT MASONRY WALLS ELECTRICAL RECEPTACLE WALL OPENING WALL SLEEVE INSULATION NOTE: All 230/208V units are manufactured with a 72”... -
Page 11: Accessory Installation
Accessory Installation Internal Drain Kit Location and Installation (PXDR10) OPTIONAL AREA PREFERRED AREA- NO FOAM INSULATION IF THE DRAIN MUST BE LOCATED IN THE OPTIONAL AREA, THE FOAM INSULATION MUST BE CUT AWAY AND 3" REMOVED TO ALLOW ACCESS TO THE DRAIN. External Drain When using an external drain sys- tem, the condensate is removed... - Page 12 The basic unit shall not exceed 16” high x 42” wide. Overall depth of the unit from the rear of the Friedrich wall sleeve to the front of the decorative front cover shall not exceed 21 ¼”. The unit shall be designed so that room intrusion may be as little as 7 ½”.
- Page 13 SLEEVE EXTENSION RETROFIT KIT Galvanized zinc coated steel, PXSE 2.4" sleeve extension attached to the room side of the sleeve to allow for the installation of a PD-Series Friedrich PTAC in a T-Series sleeve. LATERAL DUCT ADAPTER Attaches to the PTAC/PTHP unit and PDXDAA provides a transition to direct up to 35% of the total CFM to a second- ary room, either left or right of the unit.
- Page 14 Accessories New Construction Accessories CONDUIT KIT WITH JUNCTION BOX Hard wire conduit kit with PXCJA junction box for 208/230V and 265V units (subbase not required). Kit includes a means of quick disconnect for easy removal of the chassis. *Required for 265V installations. REPLACEMENT FILTER PACK These are original equipment return air PXFTA filters.
- Page 15 THIS PAGE INTENTIONALLY LEFT BLANK.
- Page 16 Friedrich Air Conditioning Company - International Division. Any defective part to be replaced must be made available to FRIEDRICH in exchange for the replacement part. Reasonable proof must be presented to establish the date of install, otherwise the beginning date of this certificate will be considered to be our shipment date plus sixty days. Replacement parts can be new or remanufactured.
