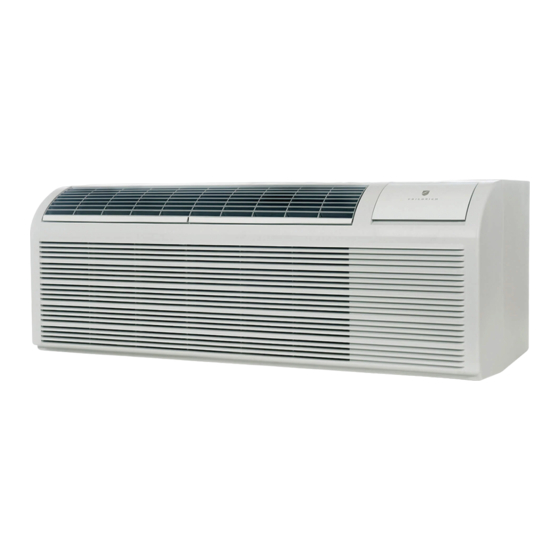

Friedrich PDE07K Installation Instructions

Installation Instructions
POWER CORD ACCESSORY KIT
For use with Packaged Terminal Units
Please read these instructions completely before attempting installation.
NOTE: These instructions apply to the installation of Friedrich Power Cord Accessory Kits only.
How to connect
IMPORTANT: Please read the following electrical safety data carefully.
Electrical Shock and/or Unit
Operation and Damage Hazard
Failure to follow this warning could result in
personal injury or death and/or unit damage.
Follow the National Electrical Code (NEC)
or local codes and ordinances.
For personal safety, this unit MUST BE
properly grounded.
Protective devices (fuses or circuit breakers)
acceptable for unit installations are specified
on the nameplate of each unit.
Do not use an extension cord with this unit.
Aluminum wiring in the building may present
special problems - consult a qualified
electrician.
When unit is in STOP position, there is
still voltage to the electrical controls.
Disconnect power to unit before servicing by:
1. Removing power cord (if it has one) from
wall receptacle.
2. Removing branch circuit fuses or turning
circuit breakers off at panel.
92016602
WARNING
Figure 1

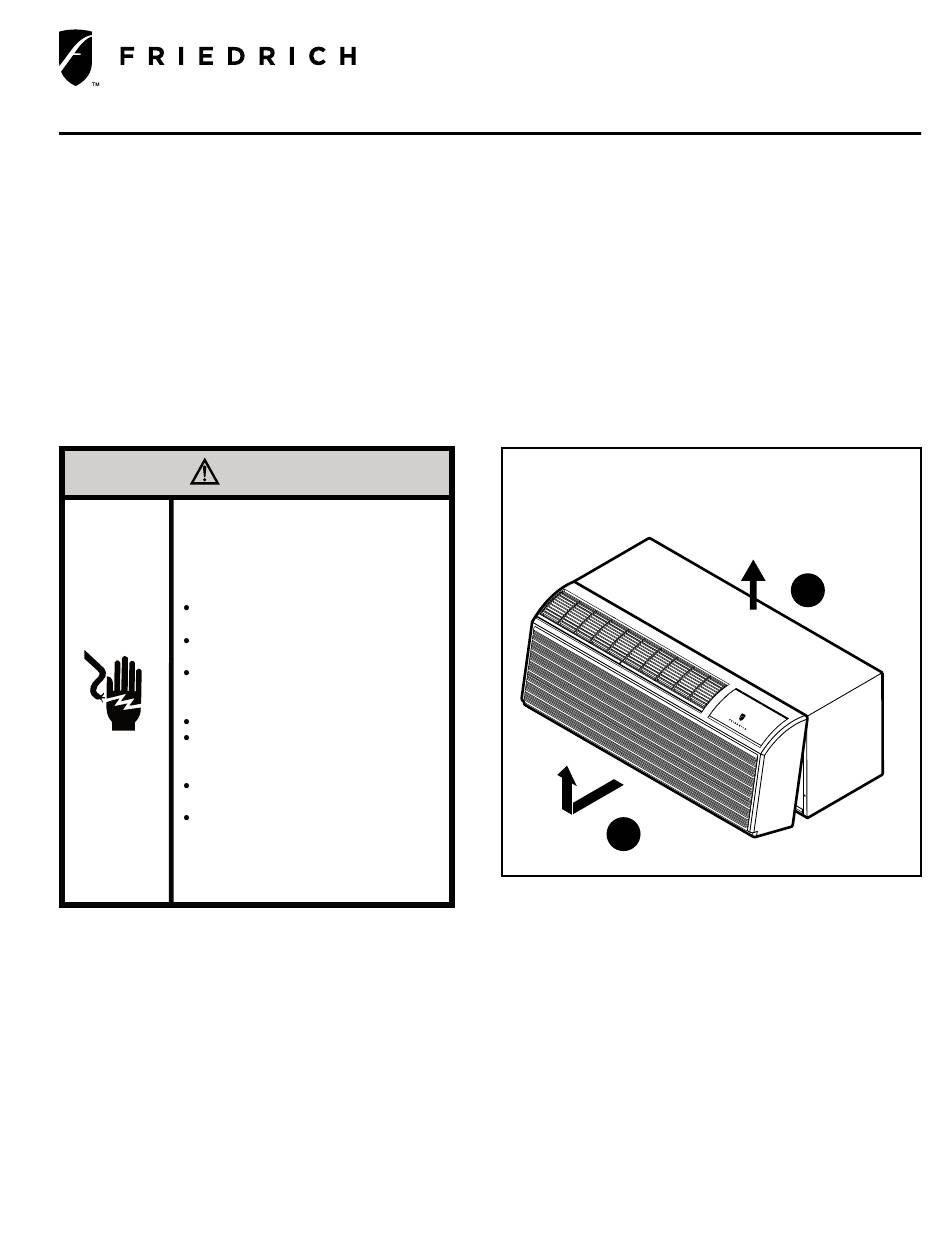

Removing the Front Panel
1
Remove the front panel (see figure 1 above)
Pull out at the bottom to release it from the tabs (1).
Then lift up (2).
NOTE: If the unit is mounted flush to the floor, the
service cord MUST be rerouted at the bottom of the
front cover on the side closest to the receptacle.
A notch MUST be made in the front cover side where
the cord exits the unit. It is the responsibility of the
installer to create an exit notch.
2
FRP022
