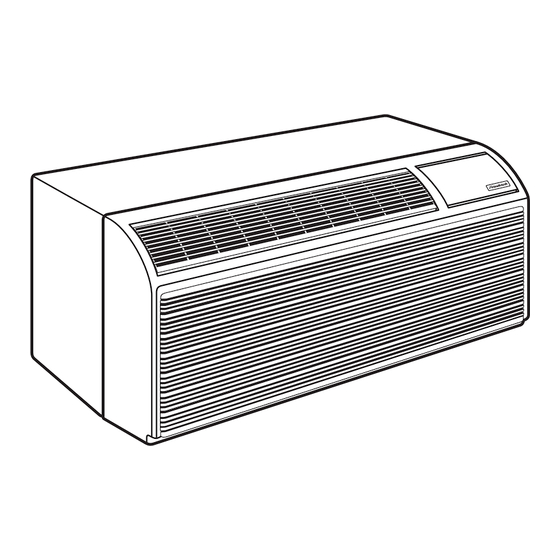

Friedrich PDE07K Series Parts Manual
Ptac pd series (electronic controls) packaged terminal air conditioners packaged terminal heat pumps
Hide thumbs
Also See for PDE07K Series:
- Service manual (28 pages) ,
- Product profile (13 pages) ,
- Installation instructions (4 pages)
Advertisement
Table of Contents
- 1 Electronic Controls
- 2 Table of Contents
- 3 PTAC Model Number Identifi Cation Guide
- 4 Unit Identification
- 5 PTAC Serial Number Identifi Cation Guide
- 6 Unit Assembly
- 7 Unit Assembly Parts List
- 8 Air Handler
- 9 Air Handler Parts List
- 10 Control Box Assembly
- 11 Notes
- 12 Front Cover
- 13 Front Cover Assembly
- Download this manual
Parts Manual
PTAC
PD Series
Packaged Terminal Air Conditioners
Packaged Ter mi nal Heat Pumps
Serial Number LEAP and Later
MODELS
PDE07K**B-A
PDE07R**B-A
PDE09K**B-A
PDE09R**B-A
PTACPRTS PD B-A (1-05)
(Electronic Controls)
PDE12K**B-A
PDH07K**B-A
PDE12R**B-A
PDH07R**B-A
PDE15K**B-A
PDH09K**B-A
PDE15R**B-A
PDH09R**B-A
PDH12K**B-A
PDH12R**B-A
PDH15K**B-A
PDH15R**B-A
** Digits vary with model.
Advertisement
Table of Contents
Related Manuals for Friedrich PDE07K Series
Summary of Contents for Friedrich PDE07K Series
-

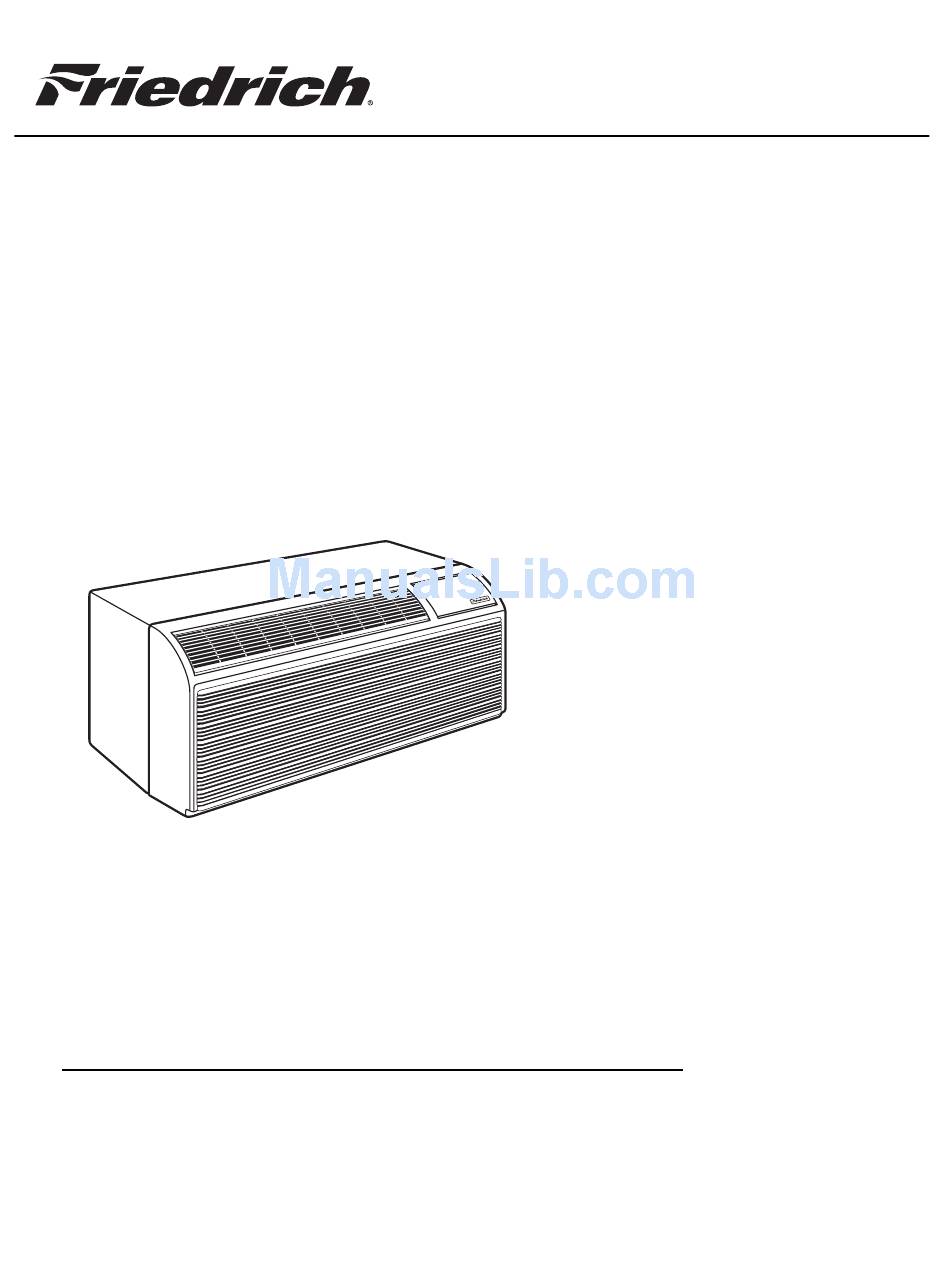

Page 1: Electronic Controls
Parts Manual PTAC PD Series Packaged Terminal Air Conditioners Packaged Ter mi nal Heat Pumps Serial Number LEAP and Later MODELS PDE07K**B-A PDE12K**B-A PDE07R**B-A PDE12R**B-A PDE09K**B-A PDE15K**B-A PDE09R**B-A PDE15R**B-A PTACPRTS PD B-A (1-05) (Electronic Controls) PDH07K**B-A PDH12K**B-A PDH07R**B-A PDH12R**B-A PDH09K**B-A... -
Page 2: Table Of Contents
Table of Contents PTAC Model Number Identifi cation Guide ... 3 PTAC Serial Number Identifi cation Guide ... 3 Unit Assembly ... 4 Unit Assembly Parts List ... 5 Air Handler ... 6 Air Handler Parts List ... 7 Control Box Assembly ... 8 Front Cover Assembly ... -
Page 3: Ptac Model Number Identifi Cation Guide
Series PD = P Series Digital PTAC System X = Accessory E = Cooling with or without electric heat H = Heat Pump with Auxiliary Heat Nominal Cooling Capacity 07 = 7000 BTUh 09 = 9000 BTUh 12 = 12000 BTUh 15 = 15000 BTUh PTAC Serial Number Identifi... -
Page 5: Unit Assembly Parts List
REF. PART NO. 25059400 Coil, Indoor 25065000 Coil, Indoor 25014820 Coil, Outdoor 25014821 Coil, Outdoor 25064800 Coil, Outdoor- Heat Pump Only 25064801 Coil, Outdoor- Heat Pump Only 25024915 Compressor, 230 Volt 25024908 Compressor, 230 Volt 25024907 Compressor, 230 Volt 25024910 Compressor, 230 Volt 25024914 Compressor, 265 Volt... -
Page 6: Air Handler
AIR HANDLER... -
Page 7: Air Handler Parts List
REF. PART NO. 25038401 Discharge Screen 25067500 Air Defl ector 25016011 Deck 25059160 Heater, 2.5 kW @ 230 Volt 25059161 Heater, 3.4 kW @ 230 Volt 25059184 Heater, 5.0 kW @ 230 Volt 25059162 Heater, 2.5 kW @ 265 Volt 25059163 Heater, 3.4 kW @ 265 Volt 25059185... -
Page 8: Control Box Assembly
CONTROL BOX ASSEMBLY 1 2 3 4 5 6 7 8 GL GH REF. PART NO. 60500190 LCDI, 15A (2.5kW @ 230 Volt) 60500191 LCDI, 20A (3.4kW @ 230 Volt) 60500192 LCDI, 30A (5.0kW @ 230 Volt) 20061450 Strain Relief 15/20A 20086915 Strain Relief 30A 25070050... -
Page 9: Front Cover
REF. PART NO. 25037904 Front Cover Complete (Includes Door and Filters) 25031903 Control Door 25025903 Grille, Discharge 25037804 Filter 25060600 Thumb Screw 25060500 Speed Nut (U-Type) FRONT COVER DESCRIPTION NOTES 09 12 15... -
Page 10: Front Cover Assembly
NOTES... - Page 11 Use Factory Certifi ed Parts. FRIEDRICH AIR CONDITIONING CO. Post Office Box 1540 · San Antonio, Texas 78295-1540 4200 N. Pan Am Expressway · San Antonio, Texas 78218-5212 (210) 357-4400 · FAX (210) 357-4480 www.friedrich.com Printed in the U.S.A. PTACPRTS PD B-A (1-05)
