- Page 1 SPECIALTY AIR CONDITIONERS THE EXPERTS IN ROOM AIR CONDITIONING PTACs DUCTLESS SPLIT SYSTEMS VERTICAL PTACs www.friedrich.com...
- Page 2 HOW DUCTLESS SYSTEMS WORK Friedrich ductless split systems have the advantages of a ducted installation without the high material and labor costs. Most systems can be installed and running in a few hours.
- Page 3 Occupants have the ability to set the temperature to their preferred comfort level. And, you can turn off units in unoccupied rooms. That’s the beauty– and efficiency of a Friedrich multizone system. Each unit has its own Up to 4 wall-mounted...
- Page 4 This is especially beneficial in multizone systems where room The Advantages of Friedrich Inverter Ductless Systems temperature set points vary and some indoor units may be turned TRADITIONAL SYSTEM INVERTER SYSTEM off in unoccupied rooms.
- Page 5 QUALIFIED MODELS efficiency and The DOE reports that ducted systems lose an average of 25-40% zone cooling All Friedrich ductless models in performance due to leaks, cracks exceed the federal 13.0 SEER abilities of or disconnections in ductwork. requirements. And more than...
- Page 6 Auto shut fl aps when unit is off 4-HEATING, 4-HEATING, 3-HEATING, 3-HEATING, 3-HEATING, Fan speeds 4- COOLING 4- COOLING 3- COOLING 3- COOLING 3- COOLING Learn more about ductless @ www.friedrich.com The Ultimate Room Air Conditioner Our online video explains the advantages of Friedrich ductless splits...
-

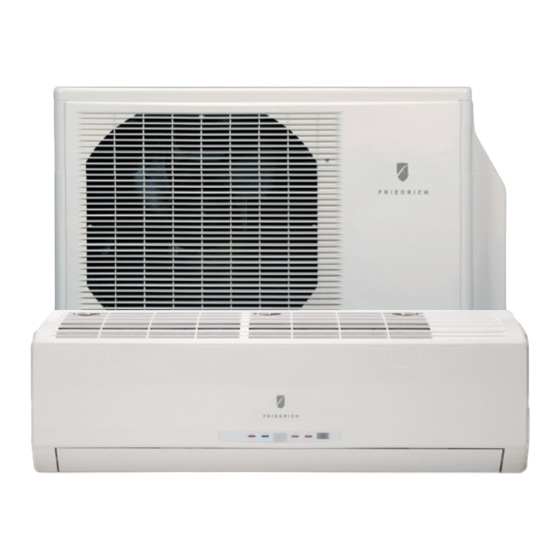

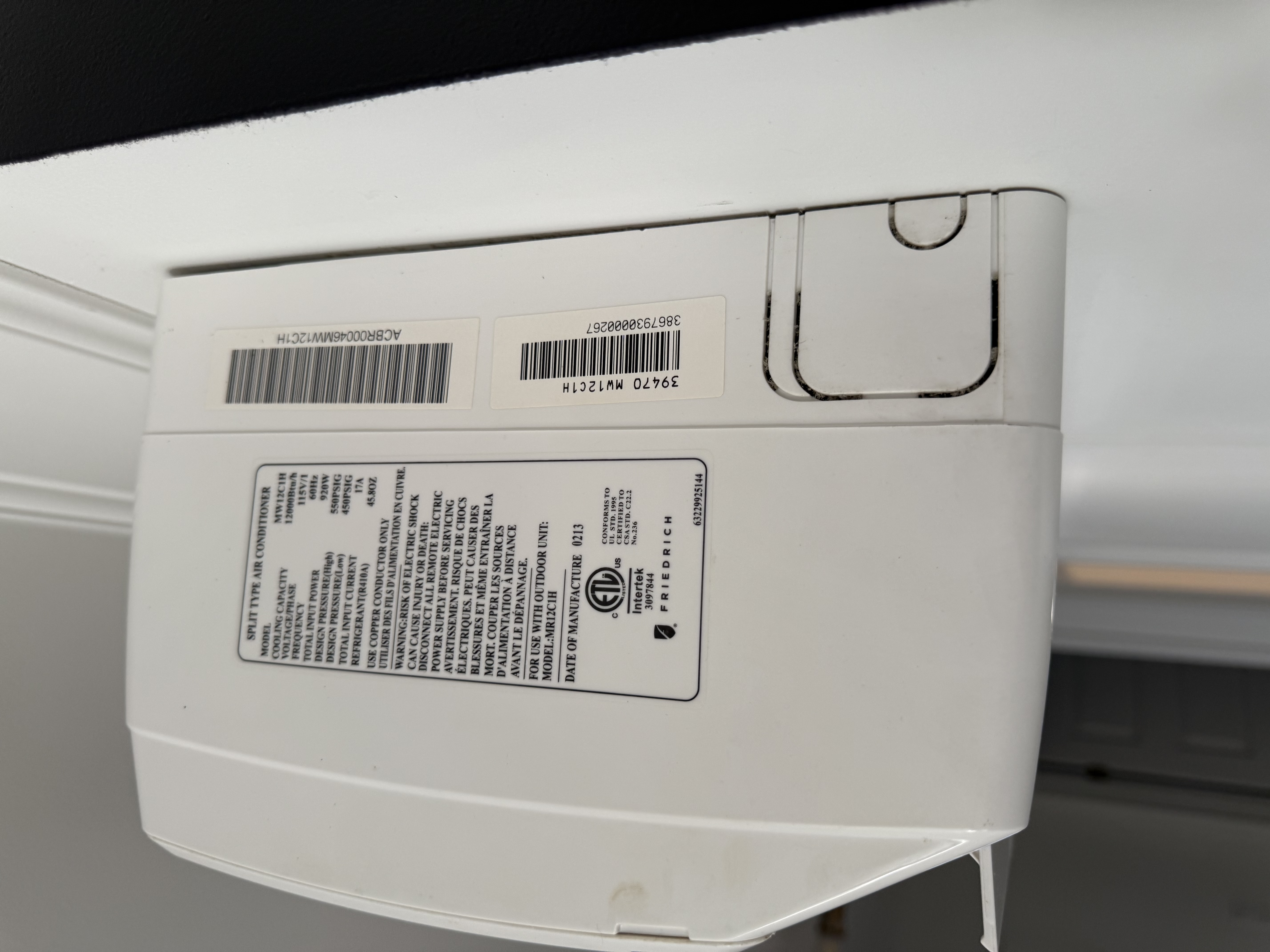

Page 7: Cool-Only Models
• 24-hour timer and sleep timer 9000 and 12000 Btu • Four fan speeds: high, medium, low, quiet, plus autofan • Multiple operating modes including: MR09C1H, Auto, cool, dry (dehumidifi cation) and fan MR12C1H only • Long-life, washable air fi lters •... -
Page 8: Heat Pumps
WALL-MOUNTED SINGLE ZONE HEAT PUMPS COOL & HEAT Extensive features for comfort and convenience year 'round. In energy efficient heat pump mode uses approximately 1/3 of the energy required by electric heat. Comfort & Convenience • LCD wireless remote for each indoor unit and secured remote control holder •... -
Page 9: Multi Zone
WALL-MOUNTED MULTIZONE MULTIZONE HEAT PUMPS COOL & HEAT Two, three or four wall-mounted indoor units connected to one outdoor unit for personalized zone cooling. Comfort & Convenience 1-2-3-4 ZONE • LCD wireless remote for each indoor unit HEAT PUMPS and secured remote control holder •... -
Page 10: Heat Pump
FLOOR/CEILING UNIVERSAL CEILING CASSETTE HEAT PUMP COOL & HEAT HEAT PUMP COOL & HEAT Indoor unit can be installed 2 ways: Low profi le indoor unit recedes into low against the wall or on the ceiling. ceiling for a clean look and greater clearance. -
Page 11: Drain Pump
3/8” 5/8” T53350 S36YF systems Insulated line sets are available for all Friedrich split systems in 15 ft. and 35 ft. lengths. DWC optional, wired, wall-mounted Each line set is equipped with flare nuts on both ends. Both liquid controller available on ceiling-suspended and suction lines are insulated. -
Page 12: Specifications
SYSTEM MODEL NO. M09CH M12CH M18CF M24CG M30CG M36CG INDOOR MODEL MW09C1H MW12C1H MW18C3F MW24C3G MW30C3G MW36C3G OUTDOOR MODEL MR09C1H MR12C1H MR18C3F MR24C3G MR30C3G MR36C3G CAPACITY COOLING 9000 12000 18000 24000 30700 33000 CAPACITY COOLING MIN - MAX 4435-10600 4500-14000... - Page 13 SPECIFICATIONS WALL-MOUNTED HEAT PUMPS PERFORMANCE RATINGS SYSTEM MODEL NO. M09YH M12YH M18YH M24YH INDOOR MODEL MW09Y3H MW12Y3H MW18Y3H MW24Y3H OUTDOOR MODEL MR09Y3H MR12Y3H MR18Y3H MR24Y3H CAPACITY COOLING 8500 11500 18000 22000 CAPACITY COOLING MIN - MAX 1700-10900 3100-13300 7000-23000 9900-27300 COOLING AMPS SENSIBLE HEAT RATIO 0.65...
- Page 14 SPECIFICATIONS DUAL-ZONE HEAT PUMPS QUAD-ZONE HEAT PUMP PERFORMANCE RATINGS SYSTEM MODEL NO. M18DYF M21DYF M24DYF M36QYF INDOOR MODEL 2 x MW09Y3FM MW09Y3FM MW12Y3FM 2 x MW12Y3FM 4 x MW09Y3FM OUTDOOR MODEL MR24DY3F MR24DY3F MR24DY3F MR36TQY3F CAPACITY COOLING 9500 ea. 9500 12000 12000 ea.
- Page 15 SPECIFICATIONS TRI-ZONE HEAT PUMPS PERFORMANCE RATINGS SYSTEM MODEL NO. M27TYF M30TYF M33TYF M36TYF1 M36TYF2 INDOOR MODEL 3 x MW09Y3FM 2 x MW09Y3FM MW12Y3FM MW09Y3FM 2 x MW12Y3FM 2 x MW09Y3FM MW18Y3FM 3 x MW12Y3FM OUTDOOR MODEL MR36TQY3F MR36TQY3F MR36TQY3F MR36TQY3F MR36TQY3F CAPACITY COOLING 9200 ea.
- Page 16 NOTE: All R410A models have 1/2˝ UNF 20 thread per inch charging and vacuuming ports. An adapter must be used for 1/4˝ gauges. Adapter part number 67270018 is available through Friedrich parts distributors. Due to continuing research in new energy-saving technology, specifi cations are subject to change without notice.
-
Page 17: Air Flow
QUIET WITH POWERFUL AIR FLOW. And outstanding effi ciency Friedrich PTACs are designed for quiet operation with maximum comfort and dependable performance. FRIEDRICH ENGINEERED FOR QUIETER PERFORMANCE. Large, tangential fan generates powerful, quiet airflow. Friedrich has a Improved air distribution... - Page 18 MODULE • Backed by a nationwide service network, and U.S.- Pulls out and plugs in for easier based Friedrich expert technical team wiring during initial installation. Easier unit change-out; no need to reconnect and tighten down ENERGY EFFICIENT thermostat wires.
-
Page 19: Installation Features
MORE STANDARD FEATURES ents Comfort & Energy Usage & PDXWS WALL SLEEVE Dehumidification Management DIMENSIONS: 16" H x 42" W x 13 3/4" D • Removes up to 3.2 pts./hr. of moisture • Energy management system FRONT COVER DIMENSIONS: in cool mode to improve comfort and compatible 16"... -
Page 20: Optional Accessories
16" H x 42" W x 13 ¾" D SLEEVE EXTENSION RETROFIT KIT PXSE 2 ¼" sleeve extension attached to the room side of the sleeve to allow for the installation of a PD-series Friedrich PTAC in a 11 ½" deep T-series sleeve. DEEP WALL SLEEVES PDXWSEXT18 For walls up to 17 1/2”... - Page 21 Recommended for all units to remove excess condensate. 10 pack. LATERAL DUCT ADAPTER PDXDAA Attaches to the Friedrich PTAC/PTHP unit to direct up to 35% of the total airfl ow to a second room. The unit-mounted duct plenum features a front-mounted aluminum grille that has two positions to provide the most optimal air direction.
- Page 22 SPECIFICATIONS PDE Series Model PDE07K PDE07R PDE09K PDE09R PDE12K PDE12R PDE15K PDE15R PERFORMANCE DATA: Cooling Btu 7700/7600 7700 9000/8800 9000 12000/11800 12000 15000/14600 15000 Cooling Watts 640/620 800/770 1120/1120 1120 1530/1510 1530 Energy Effi ciency Ratio 12.0/12.2 12.0 11.3/11.4 11.3 10.7/10.5 10.7 9.8/9.7...
-
Page 23: Electric Heat Data
Electric Heat Data Model PDE07K0 PDE/PDH07K PDE/PDH07R Heater Watts 0 Kw 2000 1635 3000 2450 2000 3000 Voltage 230/208 Heating Btu 6824 5580 10236 8360 6824 10236 Heating Current Amps 13.2 12.2 11.4 Minimum Circuit Ampacity 11.4 10.0 16.8 15.6 14.6 Branch Circuit Fuse Amps... - Page 24 TOTALLY CONCEALED INSTALLATION Friedrich Vert-I-Pak ® conditioners provide a more homelike appearance and quieter operation. A quiet and energy effi cient option for extended stay properties, suites, assisted living, student housing, and commercial spaces. Vert-I-Pak is a superior product ®...
- Page 25 FOR QUIETER PERFORMANCE With the aesthetics of a central air system and the simplicity of a PTAC. Friedrich’s unique ‘Free Floating’ chassis design The chassis slides into the wall plenum and a gasket fi rmly seals the chassis to the patented telescoping plenum.
- Page 26 BETTER AESTHETICS OUTDOORS Eliminates the clutter of outdoor condensing units and the need for vandalism barriers. A better heating and A better choice than cooling option inside whole building solutions and out ADVANTAGES INCLUDE: • Eliminates the clutter of outdoor •...
- Page 27 WRT1 x 30 7/8” H Wireless, single stage, wall-mounted digital thermostat with two fan speeds FIRST COMPANY SLEEVE ADAPTER and backlight for control of Friedrich VPASA1 VERT-I-PAK. Single piece, welded adapter allows retro- fi t into existing First Company SPXR-series...
- Page 28 *Normal Value Wet Coil @ .1" ESP. Due to continuing research in new energy-saving technology, specifi cations are subject to change without notice. Friedrich Air Conditioning Co. l 10001 Reunion Place, Suite 500 l San Antonio, TX 78216 l 800.541.6645 l www.friedrich.com Retail_Specialty_Products_Brochure_2013 (3-13)
