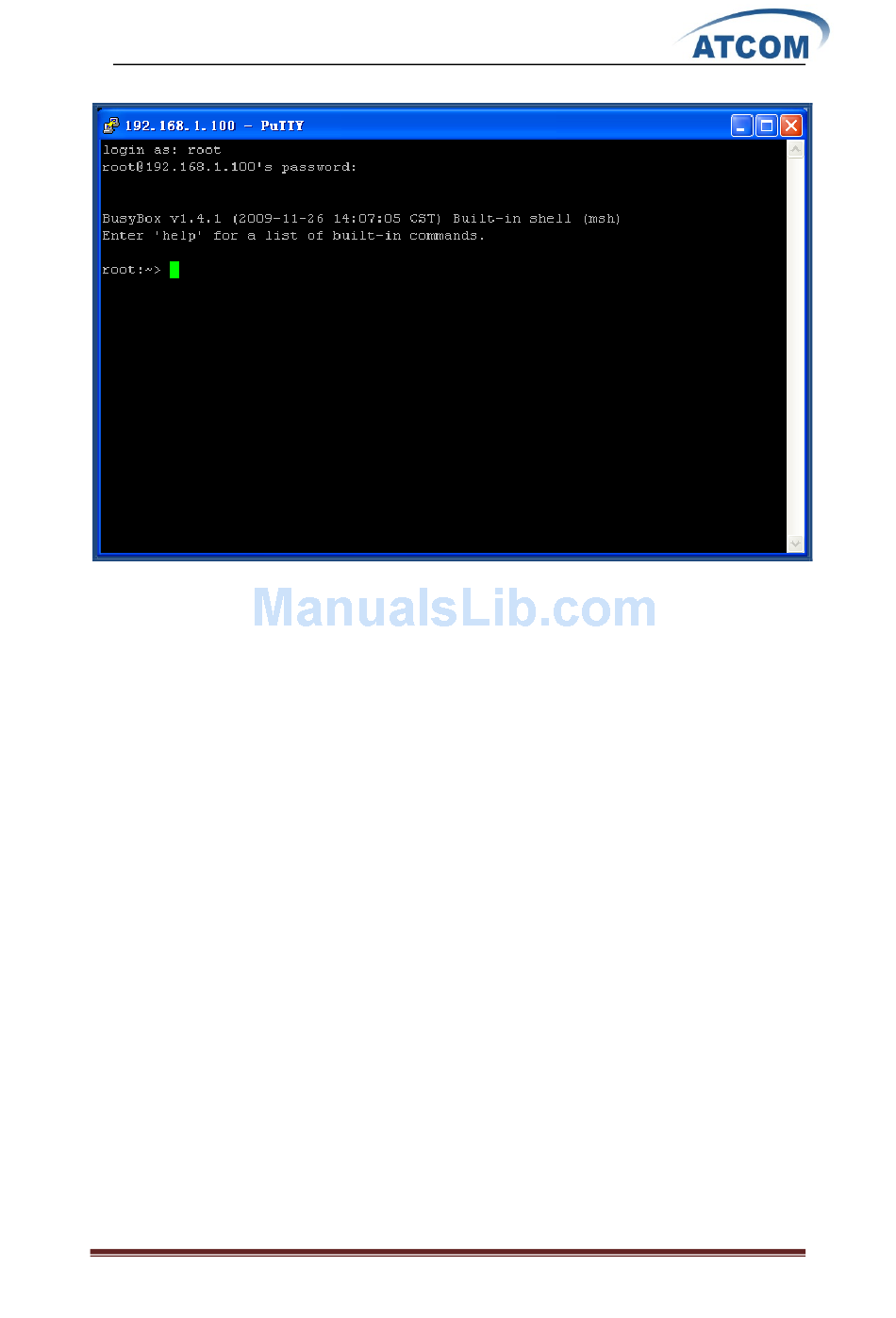

When you log into IP01 successfully, you can get the following illustration:

2.3 Access by Browser with Fallback IP Address

This way only be supported by the latest version (voiptel_ce_ip01-0.3.6) of IP01. If you forget the
IP Address of IP01 you have set up, you can use the fallback IP Address: 172.31.255.254/30.
Before logging into IP01, please set up the IP Address of your PC: 172.31.255.253 and SubMask:
255.255.255.252. At last, you can open your browser and enter:172.31.255.254 to log into the web
page of IP01.

2.4 Console Port Access to IP01

If you do not have network connection between IP01 and PC, you can try to access to IP01 by
console port. Please try to do as the following steps:
1. Please connect the console port of IP01 to your PC's console port with RS232 console cable,
you can refer to the following illustration:
